-19-
Mechanical Disassembly
4-1

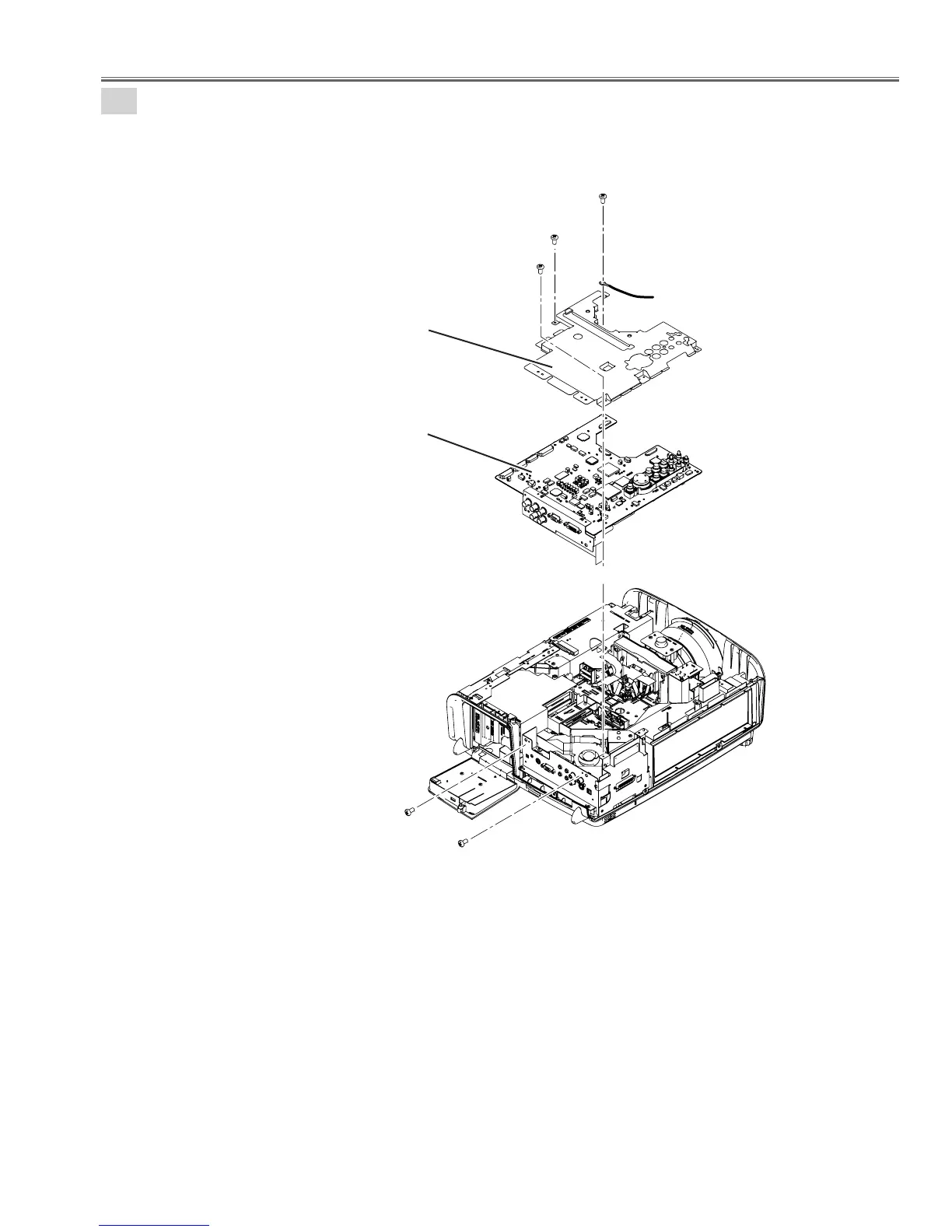

Main board ass'y removal-1.
1. Remove 3 screws-A(M3X6) and remove 2 screws-B(M3X6).
2. Remove the Shield plate top-B, Main board ass'y.
A
A
B
B
Shield plate top-B
Main board ass'y
Fig. 4-1
A
