Sanyo PLC PLC-ET30L Service Manual

-20-
Mechanical Disassembly
4-3
Main board ass'y removal-3.
1. Remove 1 screw-A(M3X6).
2. Remove 2 nuts-B, 2 nuts-C, 1 screw-D and remove the Main PWB Holder
and Shield plate bottom.

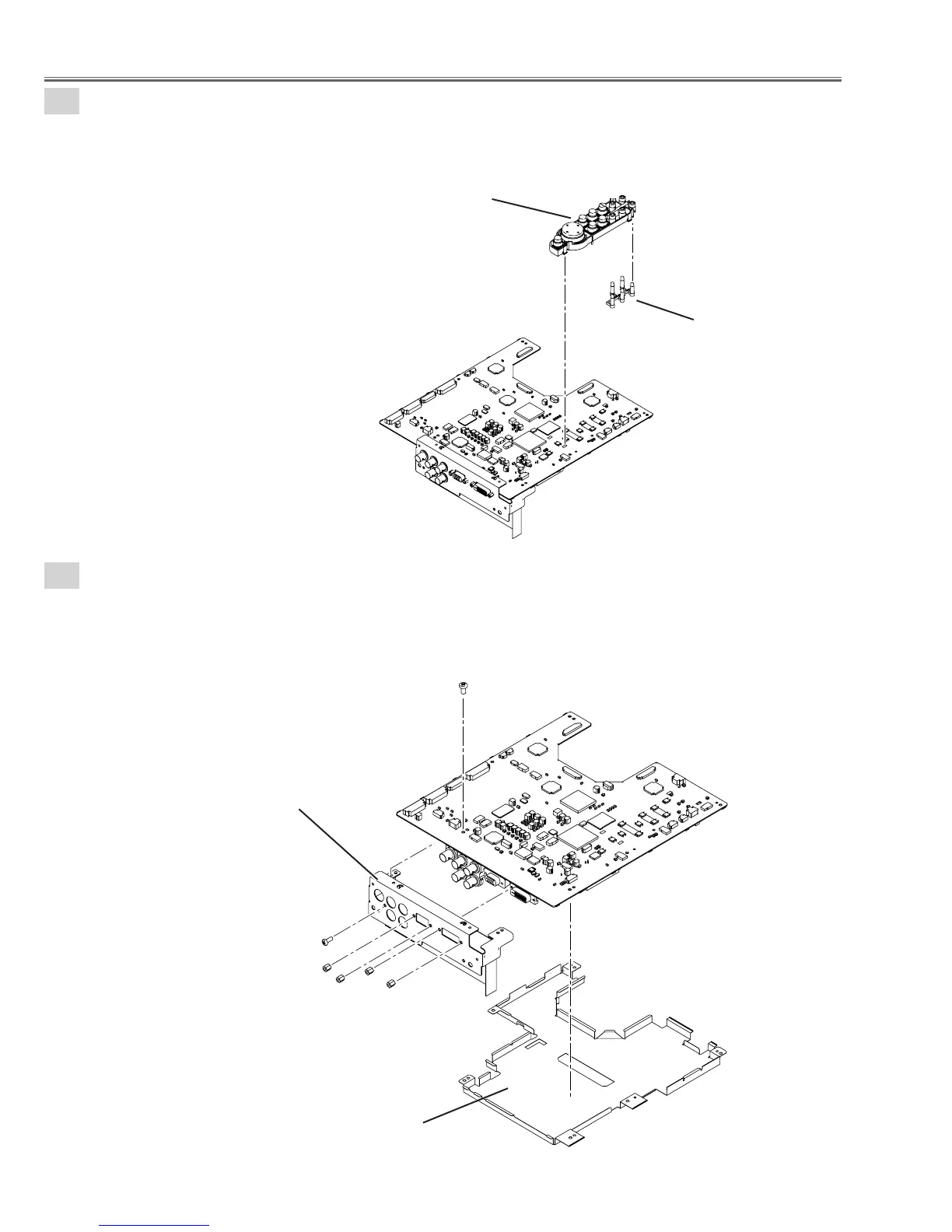

Fig. 4-3
A
B
C
C
B
Main PWB Holder
D
4-2
Main board ass'y removal-2.
1. Unhook and remove the Button upward.
2. Remove the DEC inlay.
Fig. 4-2
Button
DEC inlay
Shield plate bottom
