-18-

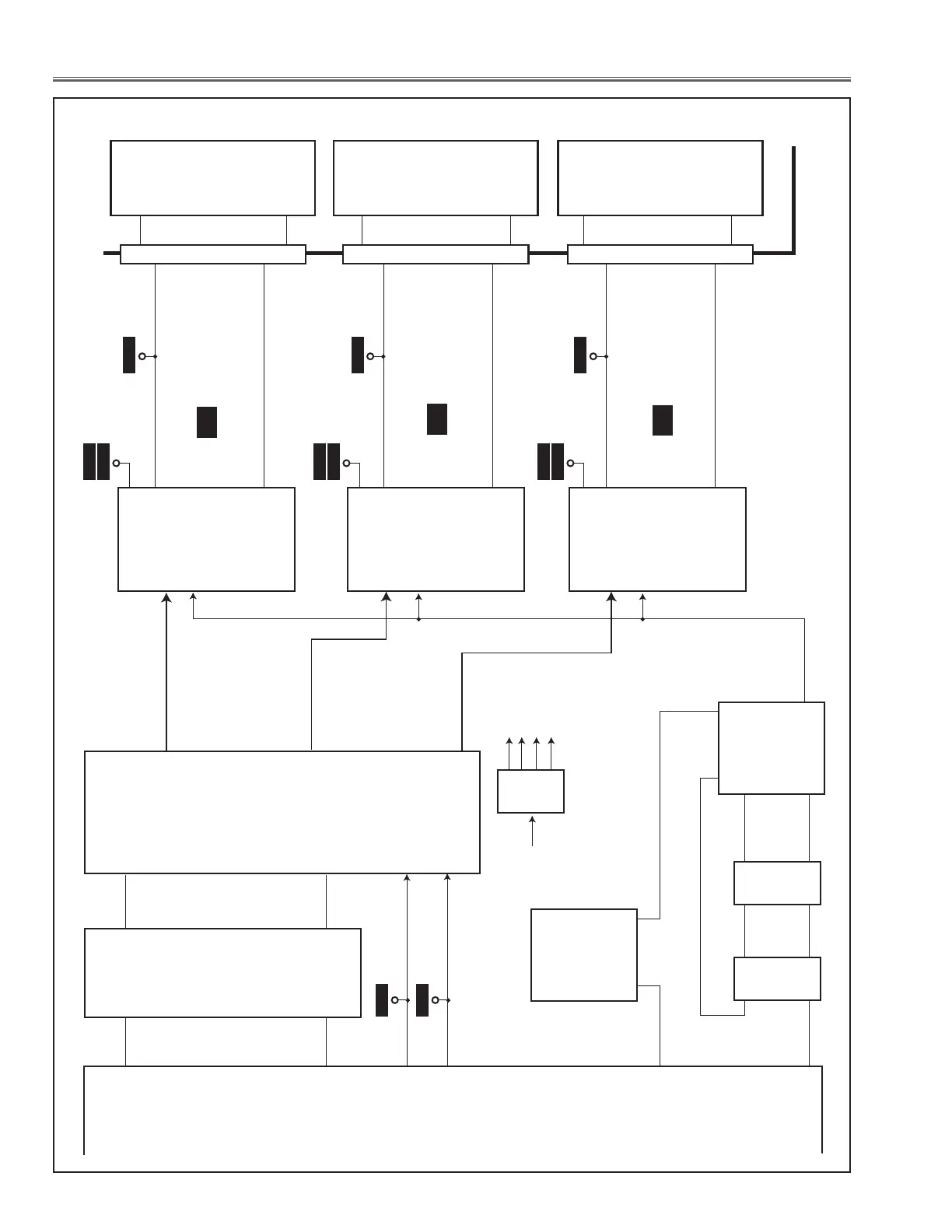

Chassis Block Diagrams
IC301
SCAN
CONVERTER
&
SYSTEM
CONTROL
IC401
LCD DRIVER& GAMMA CORRECTION
<L3E07070>
B-LCD
PANEL
G-LCD
PANEL
R-LCD
PANEL
IC1381
FLASH
ROM
IC801
SUB CPU
TPG1
TPR1
TPB1
TPVB2
TPVB1
TPVG2
TPVG1
TPVR2
TPVR1
TDHS
TDVS
K5R
K5G
K5B
DRE
DGE
DBE
ROUT
GOUT
BOUT
161
66
67
DHS
DVS
22
A0_PW
A19_PW
D0_PW
D15_PW
A1_PW
A21_PW
A0_PW
A9_PW
RO
GO
BO
SCLK
SDATA
B_V
REF
G_V
R_V
R
G
B
IC501
B-D/A S&H
<L3E06100D>
IC531
G-D/A S&H
<L3E06100D>
IC561
R-D/A S&H
<L3E06100D>
IC411
D/A
IC2341/IC2342
BUFFER I/F
IC1391
RAM
IC1451
DIGITAL ENHANCER
<>
D0_PW
D15_PW
D_R0
D_R7
A0_SH
A9_SH
H8_SCL4_5
H8_SDA4_5
LCD panel driving stage
