Sanyo PLC-WL2500 Service Manual

-24-

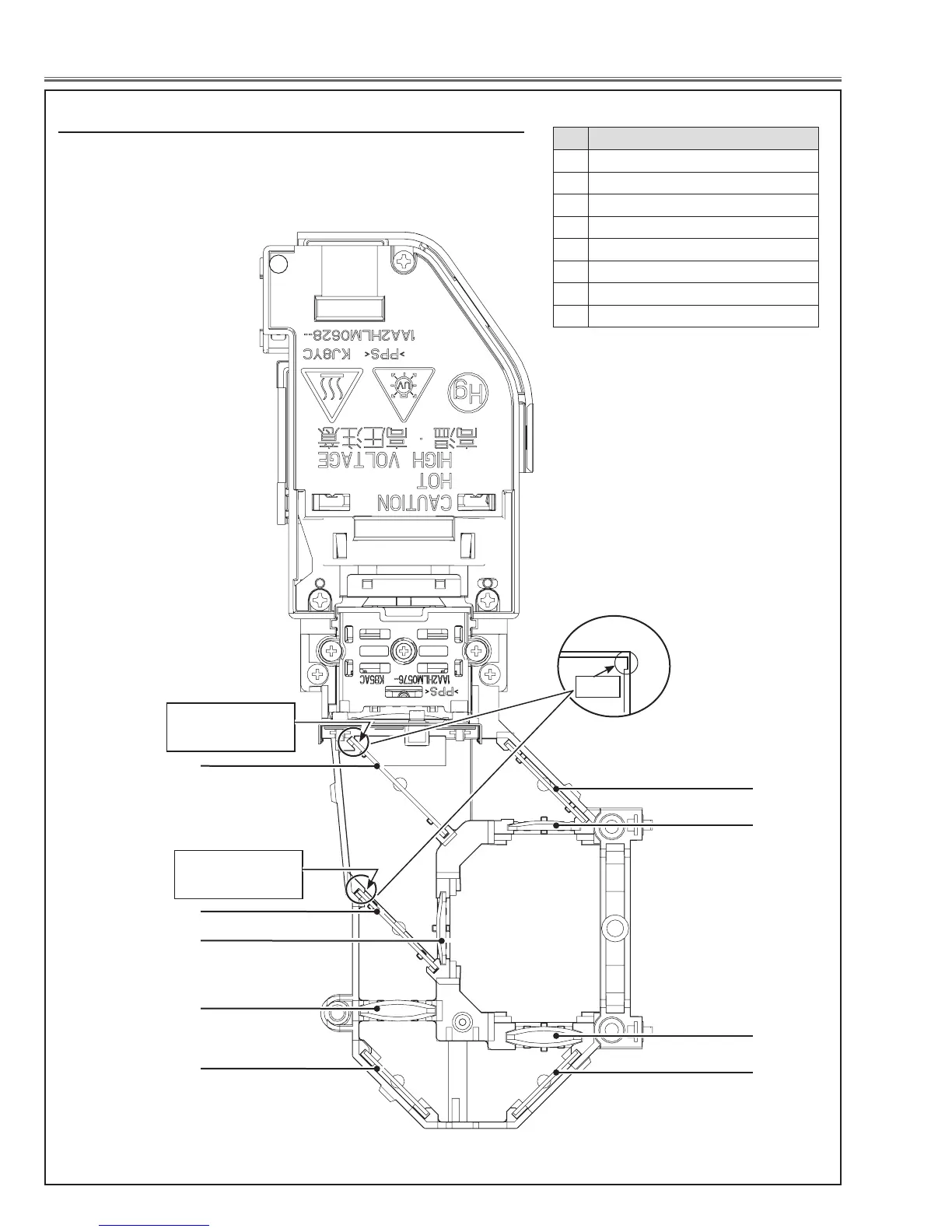

Optical Parts Disassembly
Fig.8
When mounting or assembling the optical parts in the optical
unit, the parts must be mounted in the specified location and
direction as shown in figure below.
m Locations and Directions
No. Parts Name
1 Dichroic mirror (B)
2 Dichroic mirror (G)
3 Condenser Lens (G)
4 Relay Lens (IN)
5 Mirror (R)
6 Condenser Lens (R)
7 Condenser Lens (B)
8 Mirror (B)
4
Marker
2
1
5
8
7
6
5
3
Marker comes this
side up
Marker comes this
side up
