-19-
Optical Parts Disassembly
Before taking this procedure, remove AV Panel, Cabinet Top and Main Board following to the “Mechanical Disas-
sembly”.
Disassembly requires a 2.0mm hex wrench and a screwdriver.

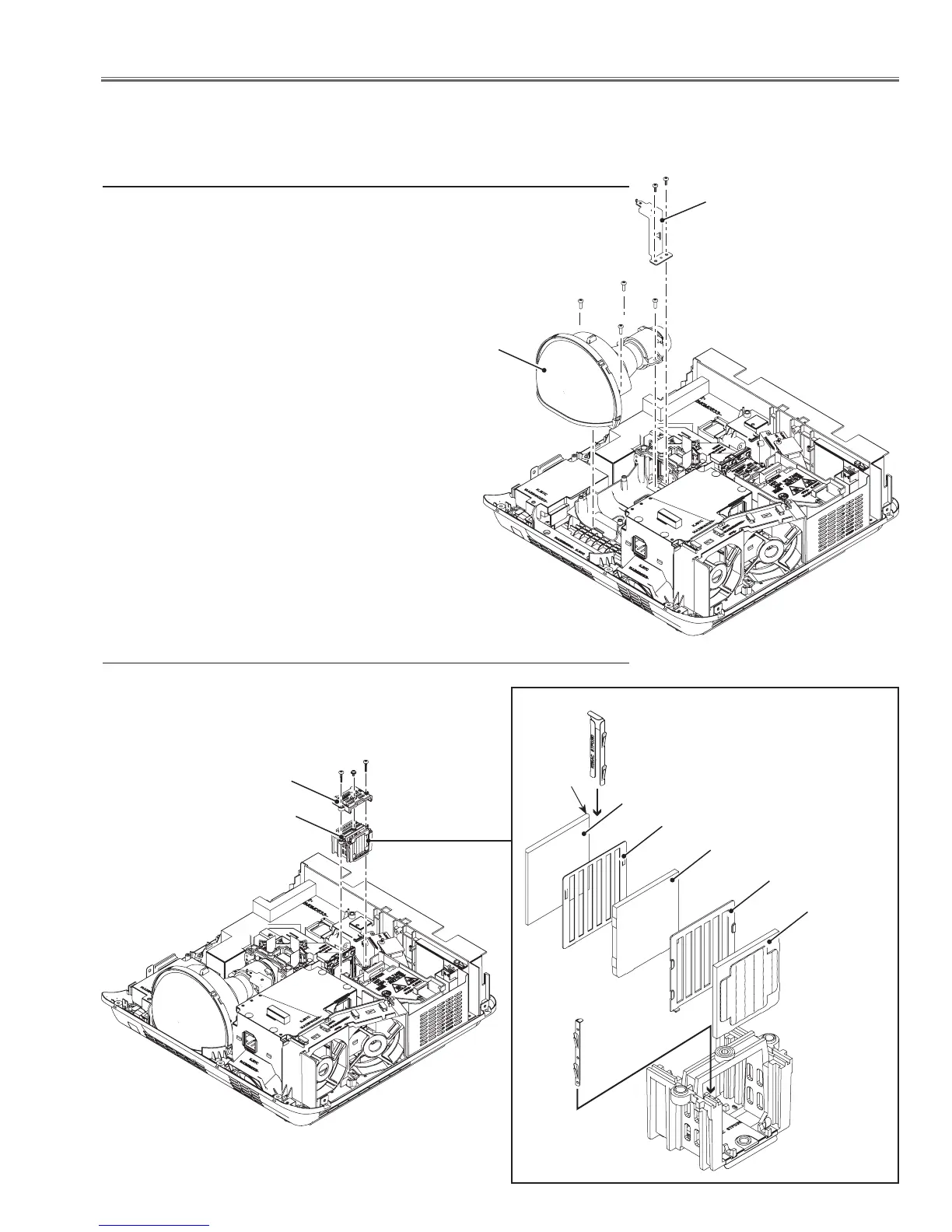

z Projection lens removal
(M3x14)x2
Fig.1
x Condenser Out lens disassembly
Fig.2
Main Board Holder
Note: The Main Board Holder should be removed from the
cabinet bottom before removing the projection lens.
(T3x8)x2
PBS
marker
(M3x8)x4
Lens Ass'y
Lens Holder Top
(M2.5x6)x1
Projection Lens
PBS
Light Mask PBS
Integrator(Out)
Light Mask Int
Integrator(In)
* Rugged surface
is facing to PBS.
* Rugged sur
-
face is facing
to the lamp.
To Next Page
