-26-
[Before Adjustment]
- Input a 100% of black raster signal.
1 Loosen a screw A (Fig.1) on the polarized glass
mounting base which you intend to adjust.
2 Adjust the slot B to obtain the darkest brightness on
the screen by using a slot screwdriver.
3 Tighten the screw A to fix the polarized glass mount-
ing base.
Repeat steps 1 to 3 for remaining polarized glasses.
- This adjustment should be taken in order of G-panel,
R-panel and B-panel.
- This adjustment should be taken in the darkest room to
adjust preciously.

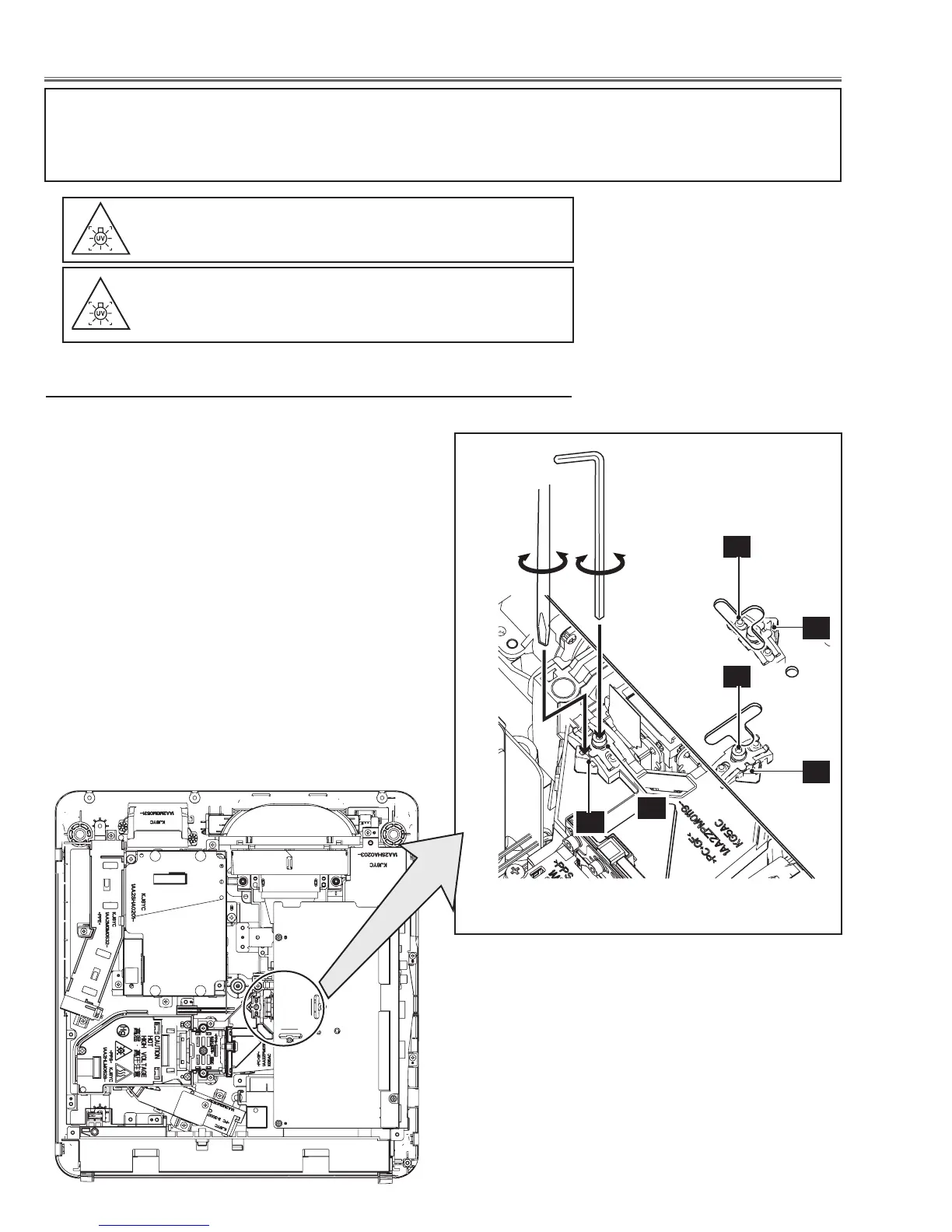

Contrast adjustment
Fig.1
Optical Adjustments
A
A
A
B
B
B
Before taking optical adjustments below, remove the AV Panel and Cabinet Top following to the “Mechanical Disas-
sembly”.
Optical adjustment requires a 2.0mm hex wrench and a slot screwdriver.
WARNING : USE UV RADIATION EYE AND SKIN PROTEC-
TION DURING SERVICING
CAUTION: To prevent suffer of UV radiation, those adjust-
ment must be completed within 25 minutes.
DURING SERVICING
