-13-
z Filter Cartridge removal
Mechanical Disassembly
Mechanical disassembly should be made following procedures in numerical
order.
Following steps show the basic procedures, therefore unnecessary step may
be ignored.
Caution:
The parts and screws should be placed exactly the same position as the origi-
nal otherwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type

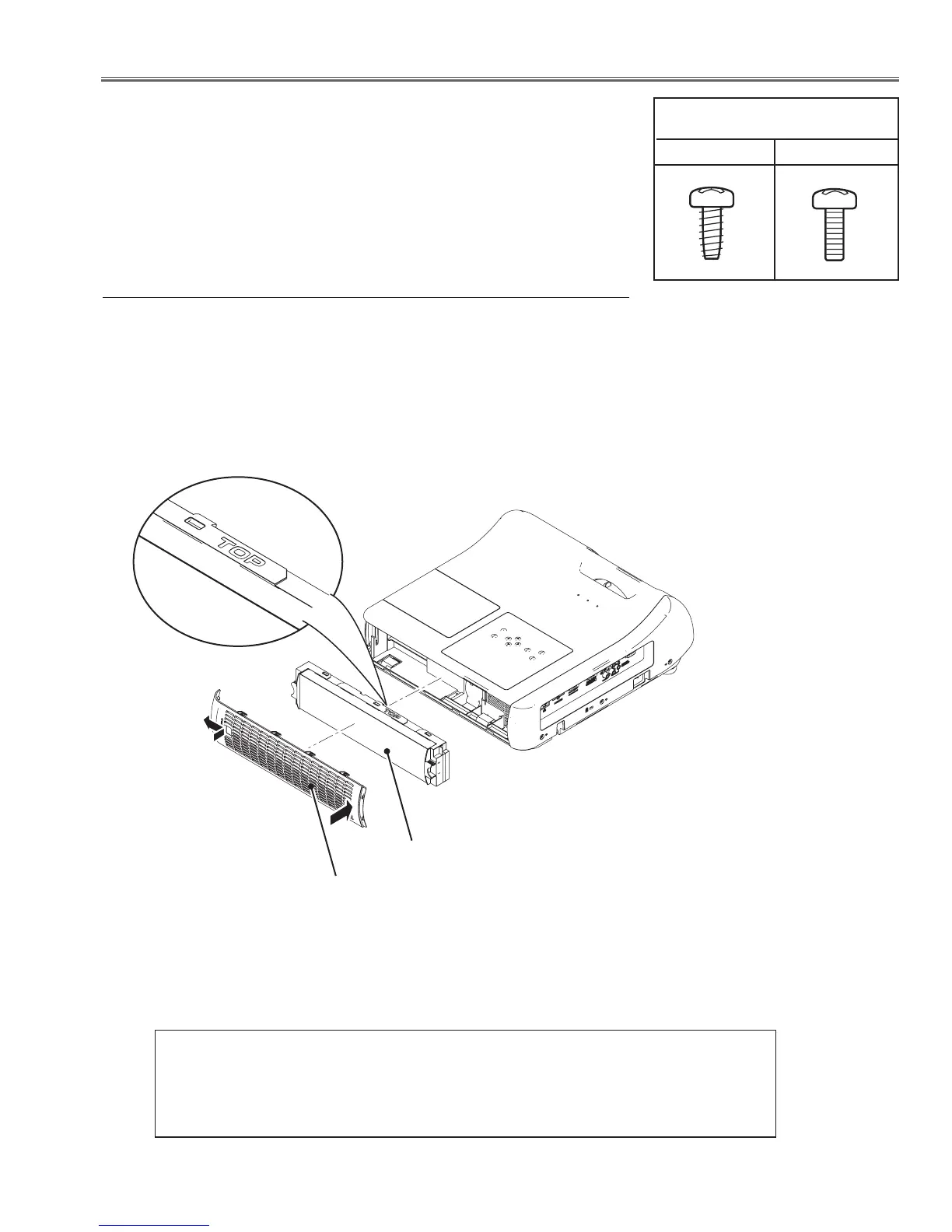

Fig.1
1. Press and hold the part indicated with the arrow, and press 7 leftwards
on the filter cover to release the latch and open the filter cover.
2. Pull out the Filter Cartridge.
Filter Cover
Filter Cartridge
Note:
Do not disassemble the filter cartridge to clean up or replace the parts inside of the filter
cartridge. When replacing the filter cartridge, replace whole the filter cartridge with new
one to maintain the projector's performance.
To Next Page
