-18-

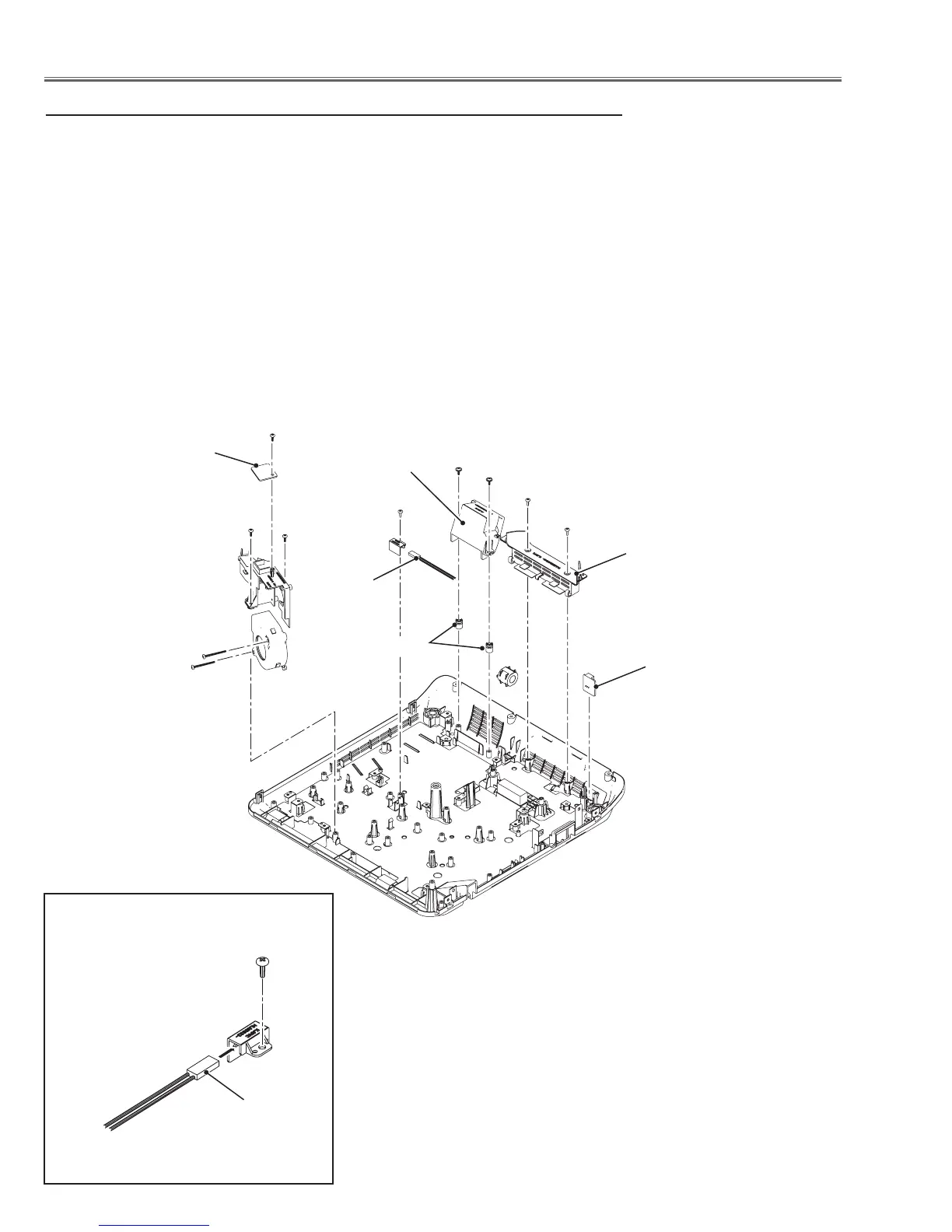

Mechanical Disassembly
n Fan (FN905), SW902, Temp Sensor C, RC Front Board removal
1. Remove 2 screws A(T3x8) to remove the Duct Ass'y. Remove Fan (FN905) and
Temp Sensor C Board.
2. Remove 1 screw B(T3x8) to remove the Thermal Switch Holder and Thermal
Switch (SW902).
3. Remove 2 screws C(T3x8) to remove the Lens Holder. Pull the RC Front Board
upward off.
A
A
B
C
C
T3x30
T3x30
T3x8
T3x12
T3x12
Temp Sensor
C Board
SW902
RC Front Board
Lens Holder
Speaker Box
Bushes
FN905
SW902
Fig.6
