-17-

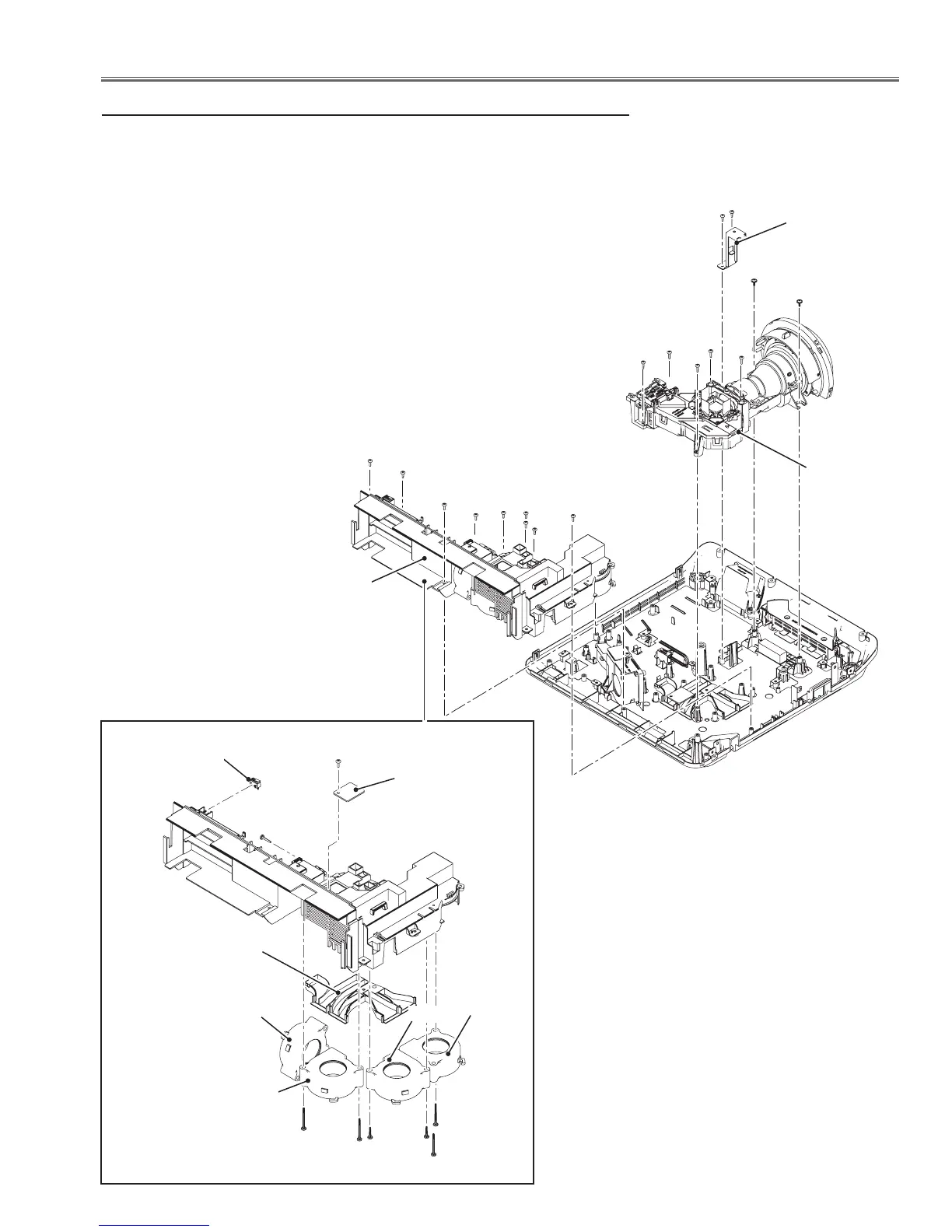

Mechanical Disassembly
Duct Ass'y
A
B
C
Optical Unit
A
B
C
C
C
C
D
D
D
D
D
D
D
D
Temp Sensor A
Board
T3x8
SW901
Lamp Cover
Switch
T3x12
T3x30
T3x30
T3x30
T3x12
T3x12
T3x30
FN903
FN904
FN902 FN901
Main Board
Holder
Panel Duct
Bottom
b Optical Unit and Duct Assembly removal
1. Remove 2 screws A(T3x8) to remove the Main Board Holder.
2. Remove 2 screws B(T3x12) and 5 screws C(T3x8) and remove the Optical
Unit upward off.
3. Remove 9 screws E(T3x8) and remove the Duct Assembly upward off.
Fig.5
