-16-
Mechanical Disassembly
v Power, Ballast Boards and Fans (FN906, FN907) removal

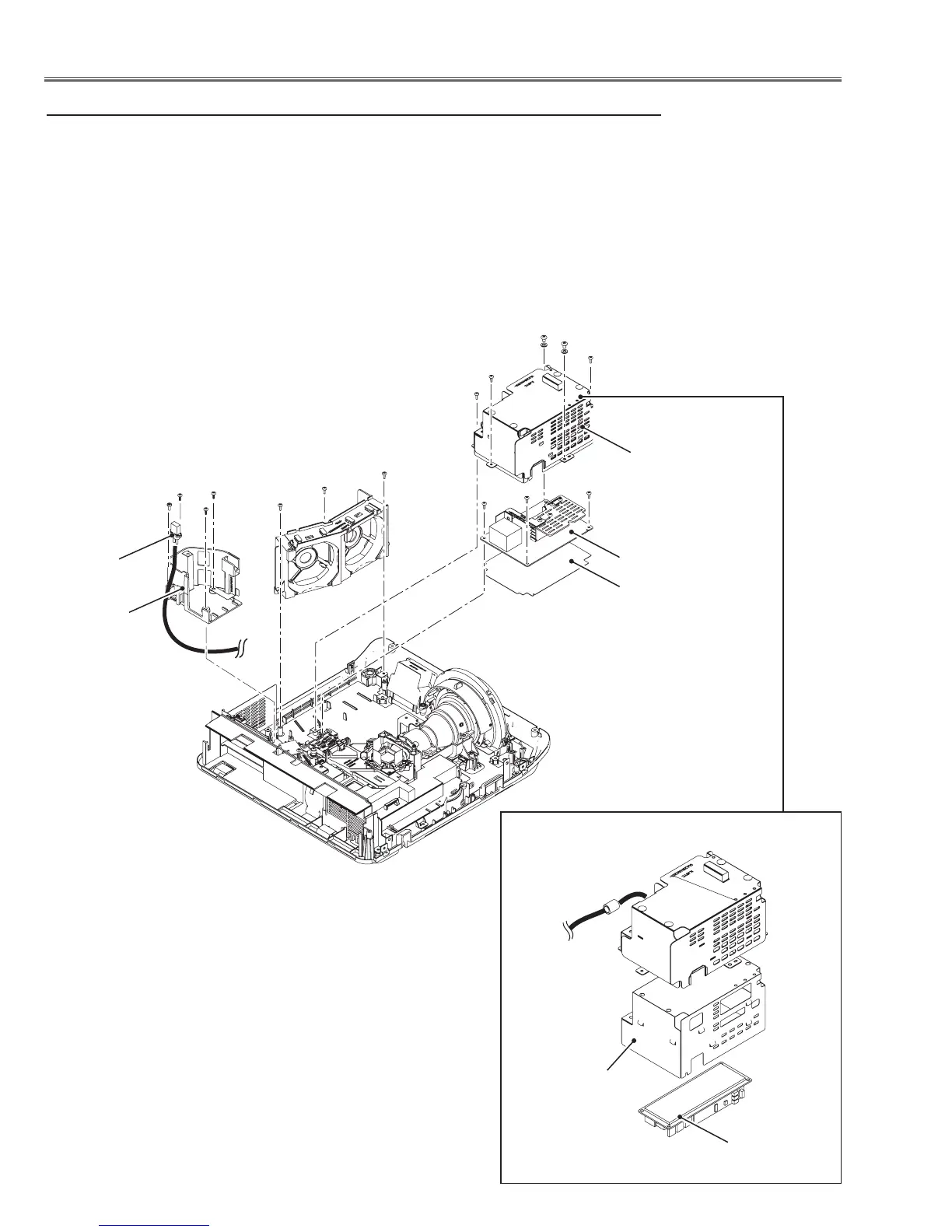

Fig.4
1. Remove 3 screws A(T3x8) to remove the Fans (FN906, FN907) Assy.
2. Remove 1 screw B(T3x8) to remove the Lamp Socket. Remove 3 screws C(T3x8) to
remove the Lamp Cover Bottom. Unhook the ballast cable from the cabinet bottom.
3. Remove 2 screws D(M4x6) and 3 screws E(T3x8). Disconnect the connectors "CN1" on
the Ballast Board and "K6C" on the Power Board. Remove the Power Box Top upward
off.
4. Remove 3 screws F(T3x8) to remove the Power Board.
A
Lamp Socket
A
A
B
C C
D
D
E
E
E
F
F
Lamp Cover
Bottom
Power Board
Isolation Sheet
Power Box Top
FN906
FN907
Ballast Board
Isolation Sheet
F
