-15-
Mechanical Disassembly
1. Remove 2 screws A(M4x6), 2 screws B(T3x8), 2 screws C(M2.5x8) and remove the
Main Board upward.
2. Remove 2 screws D(M4x6) and 2 screws E(T3x8) and remove the Filter Shield top.
3. Remove 1 screw F(M3x6) and 2 screws G(T3x8) and remove the Filter Board upward
off.
4. Loosen 3 screws H and pull the Lamp upward off.

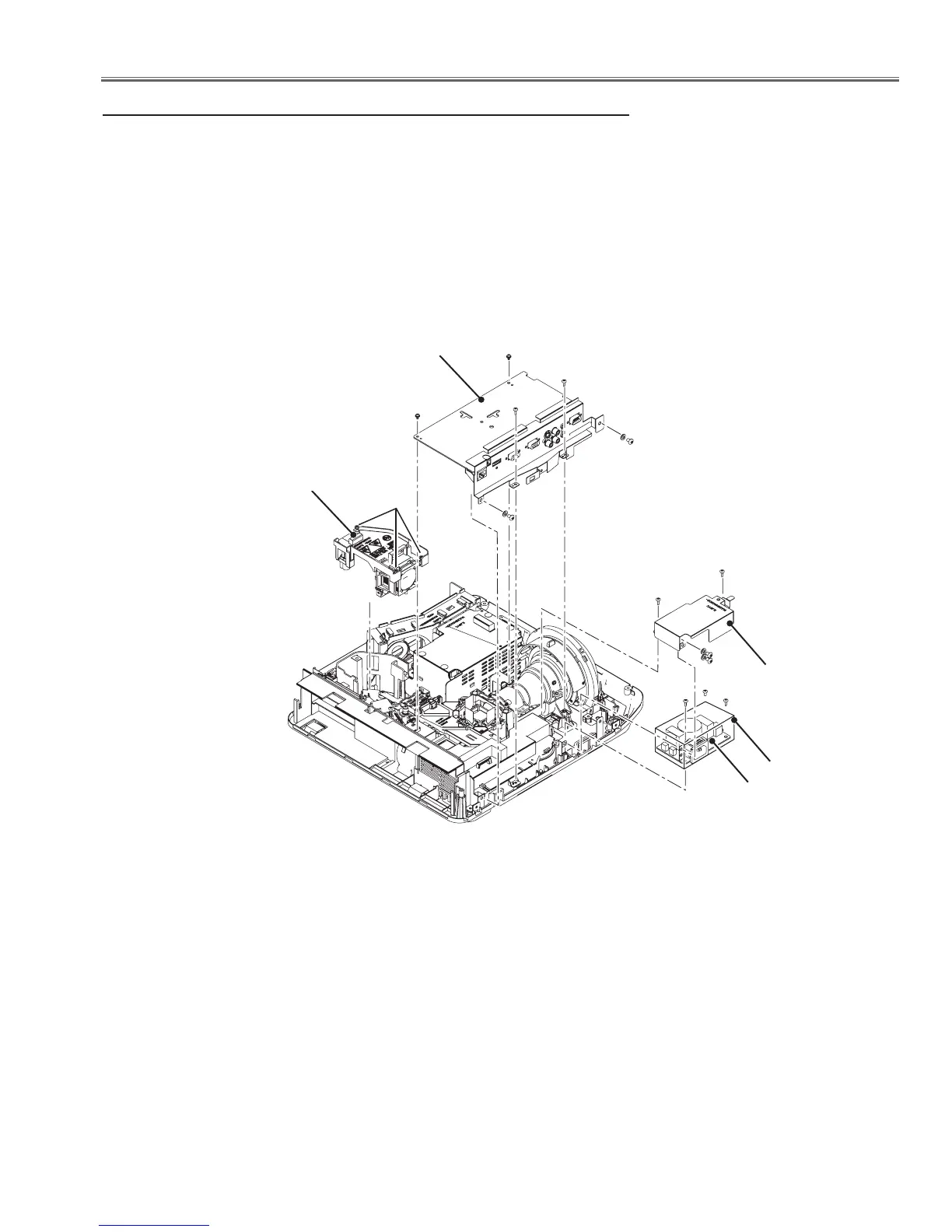

Fig.3
c Main, Filter Boards and Lamp removal
A
Main Board
Filter Board
A
B
C
C
B
E
E
D
F
G G
Filter Shield Top
Lamp
H
Isolation Sheet
