- 24 -
Mechanical disassemblies
LED board
Decoration LED

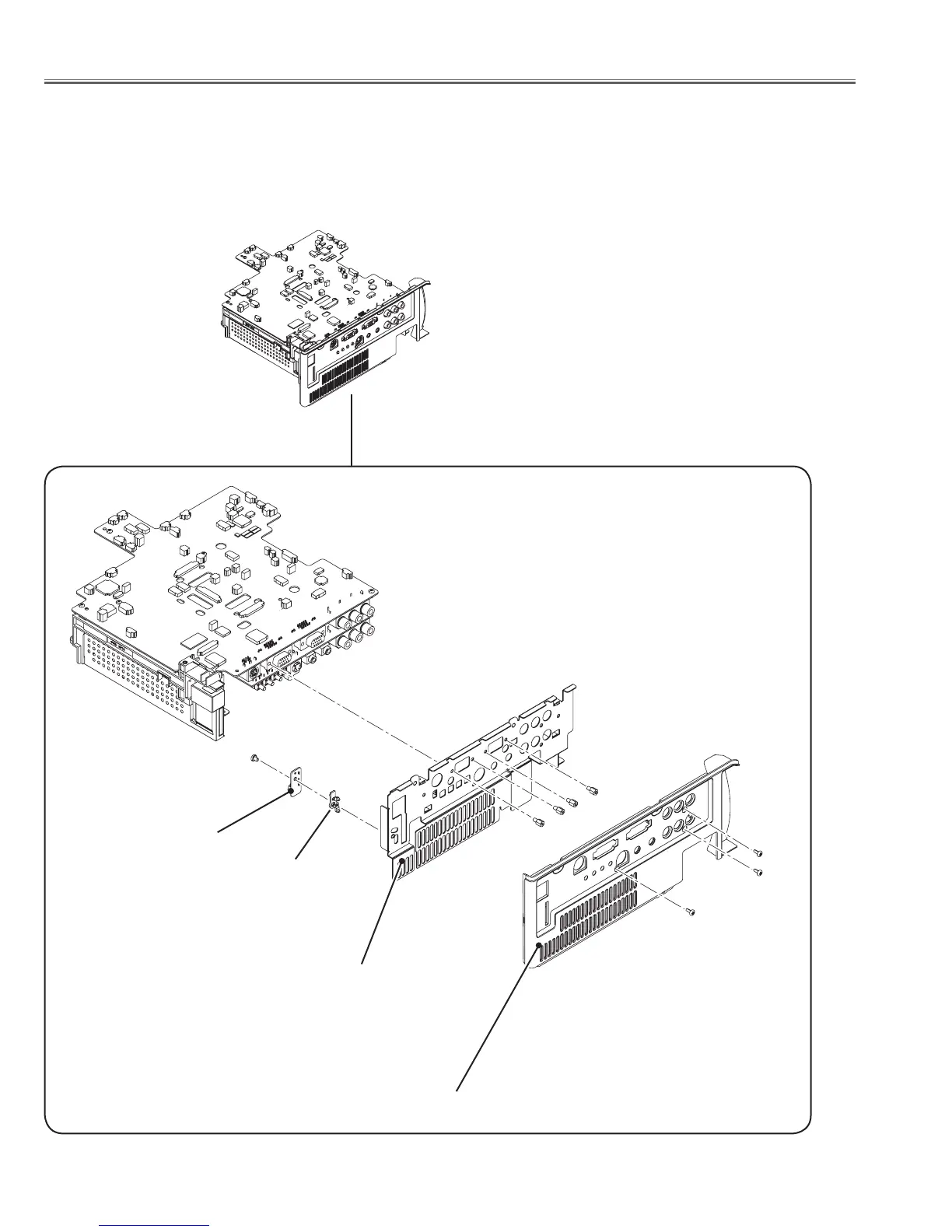

3. Remove the 3 screws-E(T3x6) and AV panel.
4. Remove the 4 nuts-F and Holder AV.
5. Remove the screw-G(M3x4), remove the LED board and remove the Decoration LED.
E
E
E
F
F
F
F
G
AV Panel
Holder AV
Main Board Ass'y
