- 23 -

Mechanical disassemblies

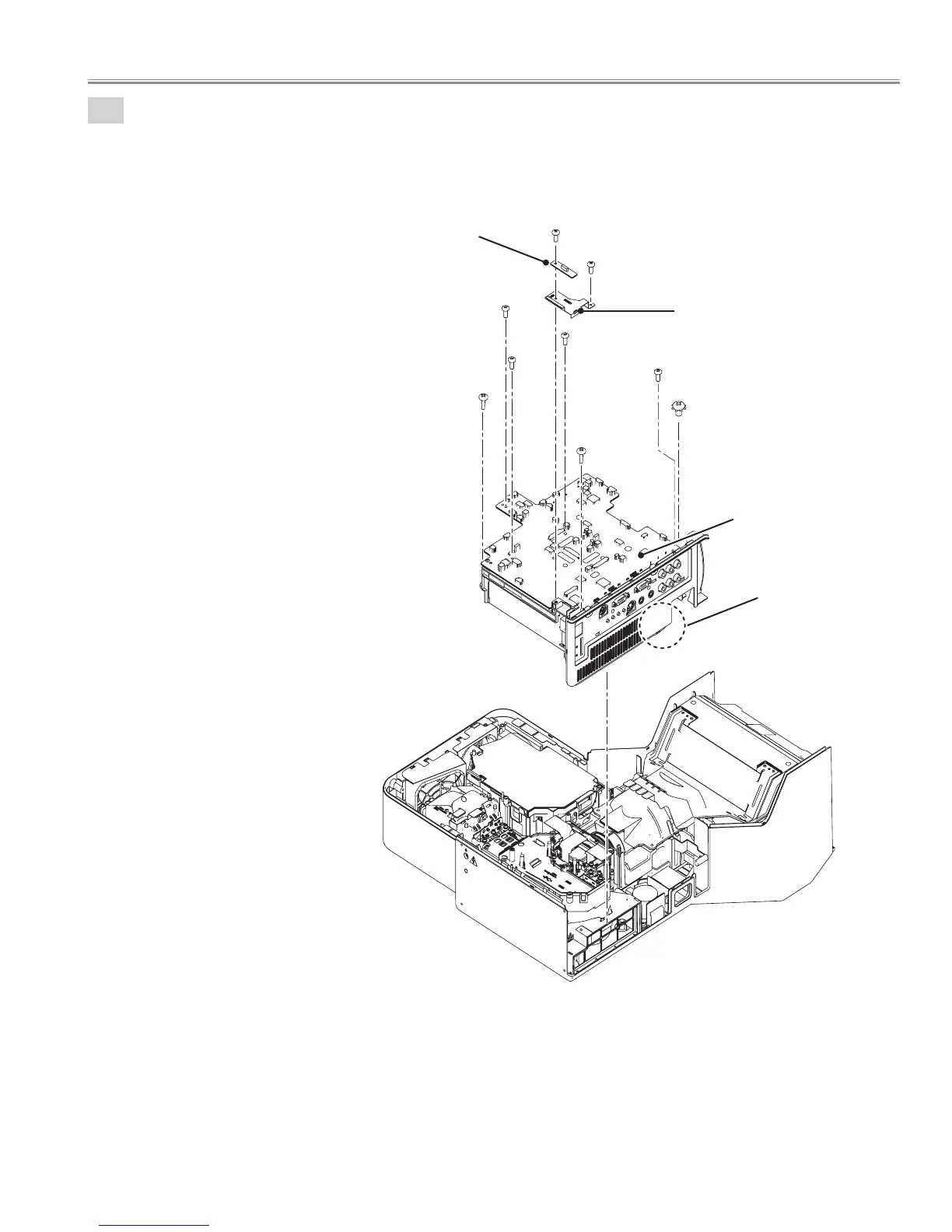

Main Board ass'y removal.

1. Remove the 2 screws-A(M2.5x6) and remove the Antenna board, Shield antenna.

2. Remove the 4 screws-B(M2.5x6), screw-C(M4x6), 2 screws-D(T3x10) and remove the Main board ass'y.

Main board ass'y

Hook

Press this part

Antenna board

Shield antenna
