Sanyo PLC-XU101 Service Manual

-17-

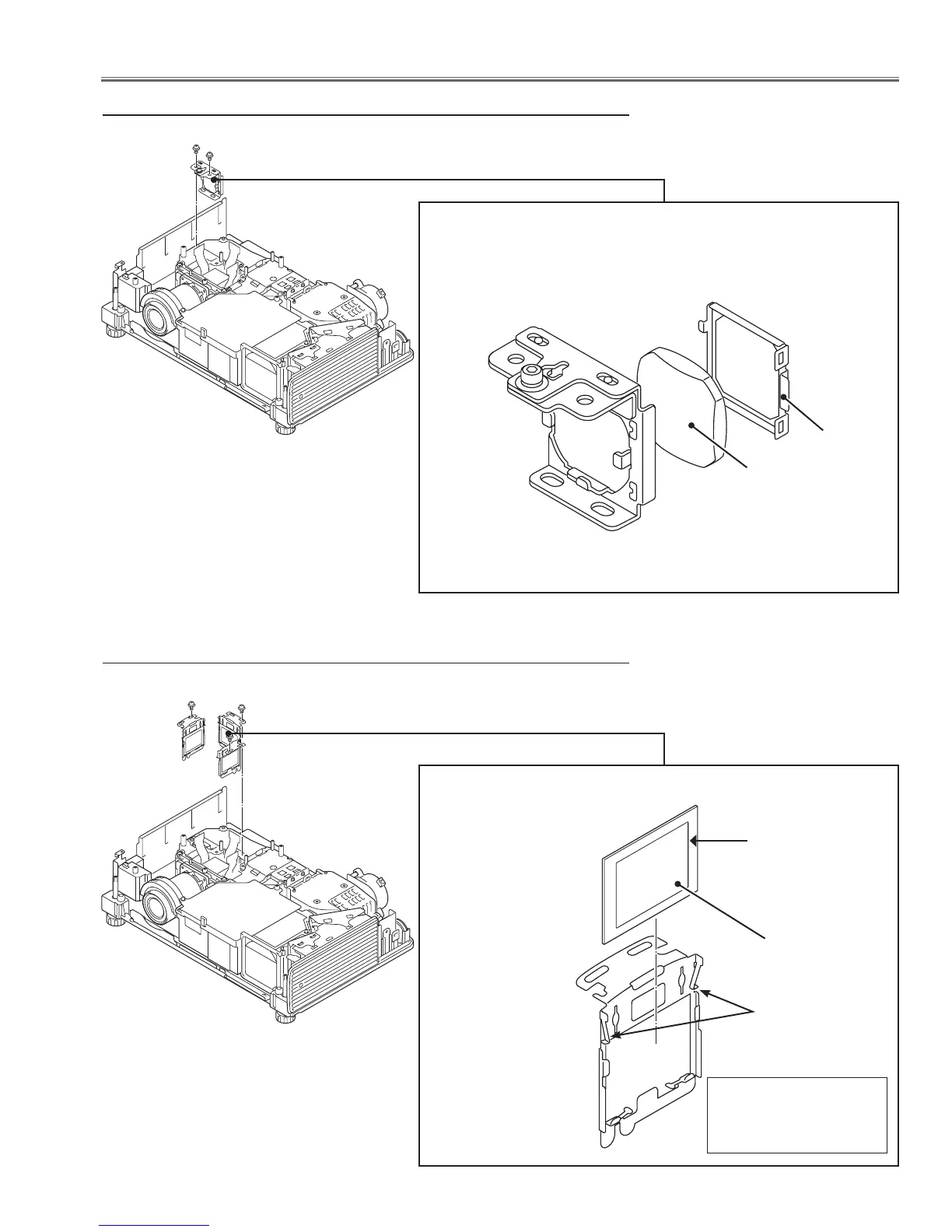

Optical Parts Disassembly
v Polarized glass-in disassembly
Polarized glass
Polarized glass-in Ass'y
(M2.5x5)x1
Fig.4
Film sheet
c Relay lens disassembly
Relay lens
Relay lens Ass'y
(M2.5x5)x2
Fig.3
Spring
* Mount the polarized
glass as the film at-
tached side faces the
prism side.
Hooks

Sanyo PLC-XU101 Specifications

General

Matrix size	0.8 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	33 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Output	D-Sub15 x 1
Video in	RCA x 1
Audio input	Yes
Aspect ratio	4:3
Dimensions (WxDxH)	334 x 232 x 78 mm
Connectivity technology	Wired
Lamp power	275 W
Light source type	Lamp
Noise level	29 dB
Dot clock scanning frequency	140 MHz
Audio (L/R) in	2
Headphone outputs	1
Display resolution	786 x 432 pixels
Power consumption (typical)	385 W

Weight and Dimensions

Weight	3500 g
