Sanyo PLC-XU101 Service Manual

-16-

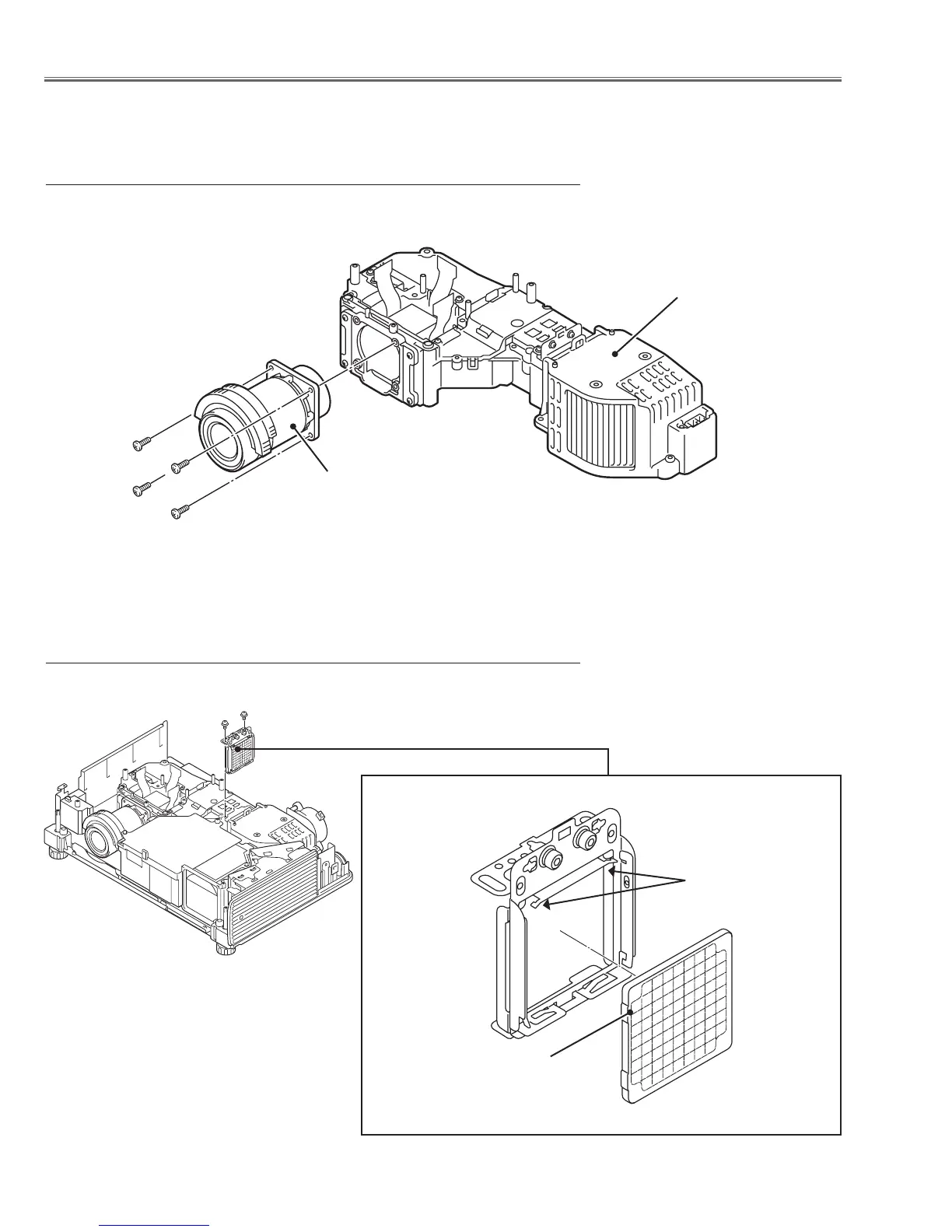

Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top , Cabinet Front and Main Board following to the “Mechanical Disas-
sembly”.
Disassembly requires a 2.0mm hex wrench.
z Projection lens disassembly
(M2.5x8)x4
Fig.1
x Integrator lens-in disassembly
Hooks
Integrator lens-in
Integrator Lens-In Ass'y
(M2.5x5)x2
Fig.2
* Rugged surface
(Behind)
Projection lens
Optical unit
Note: The optical unit should be removed from the cabinet bottom before re-
moving the projection lens.

Sanyo PLC-XU101 Specifications

General

Matrix size	0.8 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	33 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Output	D-Sub15 x 1
Video in	RCA x 1
Audio input	Yes
Aspect ratio	4:3
Dimensions (WxDxH)	334 x 232 x 78 mm
Connectivity technology	Wired
Lamp power	275 W
Light source type	Lamp
Noise level	29 dB
Dot clock scanning frequency	140 MHz
Audio (L/R) in	2
Headphone outputs	1
Display resolution	786 x 432 pixels
Power consumption (typical)	385 W

Weight and Dimensions

Weight	3500 g
