Installation

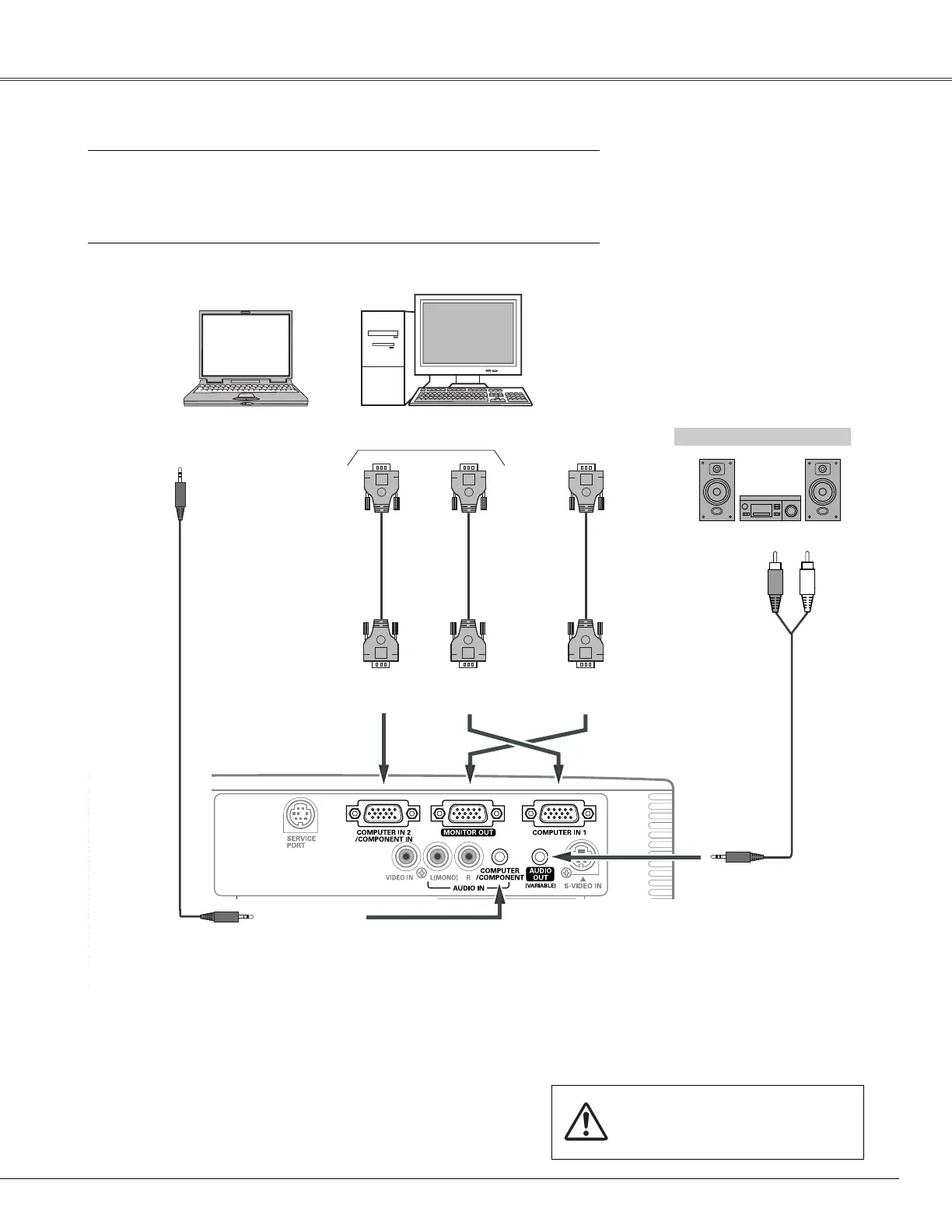

Connecting to a Computer
Cables used for connection
• VGA Cable (Mini D-sub 15 pin)*
• Audio Cables
(*One cable is supplied; other cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
Audio Output
COMPUTER
/COMPONENT
AUDIO IN
AUDIO OUT
(stereo)
Audio Input
COMPUTER IN 1
✔Notes:
•Input sound to the COMPUTER/COMPONENT AUDIO IN terminal
when using the COMPUTER IN 1 and the COMPUTER IN 2 /
COMPONENT IN terminal as input.
•When connecting the AUDIO OUT to external audio equipment,
the projector’s built-in speaker is disconnected.
Monitor Output Monitor Input
COMPUTER IN 2/
COMPONENT IN
VGA cable
MONITOR
OUT
Audio cable
(stereo)
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting cables.
VGA cable VGA cable
