Installation

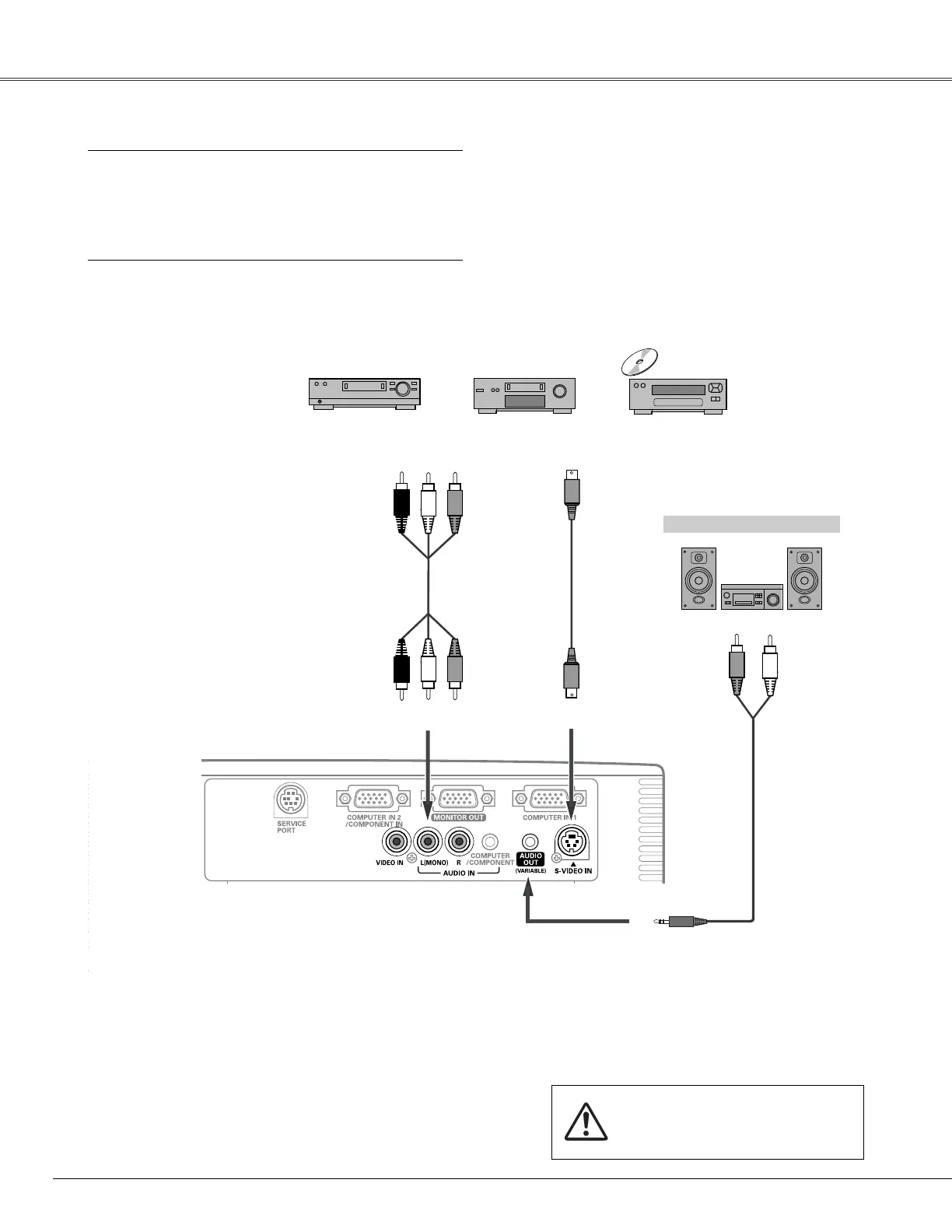

Connecting to Video Equipment
Cables used for connection
• Video and Audio Cable (RCA x 3)
• S-VIDEO Cable
• Audio Cable
(Cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
VIDEO S-VIDEO
S-video cableVideo and
audio cable
Composite Video and Audio Output S-video Output
AUDIO IN
Audio Input
AUDIO OUT
(stereo)
(R)(L)(Video)
Unplug the power cords of both the
projector and external equipment from
the AC outlet before connecting cables.
✔Notes:
•When connecting the AUDIO OUT to external audio equipment,
the projector’s built-in speaker is disconnected.
•The S-VIDEO jack connection overrides the VIDEO jack connection
when selecting AUTO in the Input Menu (p.35).

Sanyo PLC-XU101 Specifications

General

Matrix size	0.8 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	33 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±40 °
Output	D-Sub15 x 1
Video in	RCA x 1
Audio input	Yes
Aspect ratio	4:3
Dimensions (WxDxH)	334 x 232 x 78 mm
Connectivity technology	Wired
Lamp power	275 W
Light source type	Lamp
Noise level	29 dB
Dot clock scanning frequency	140 MHz
Audio (L/R) in	2
Headphone outputs	1
Display resolution	786 x 432 pixels
Power consumption (typical)	385 W

Weight and Dimensions

Weight	3500 g
