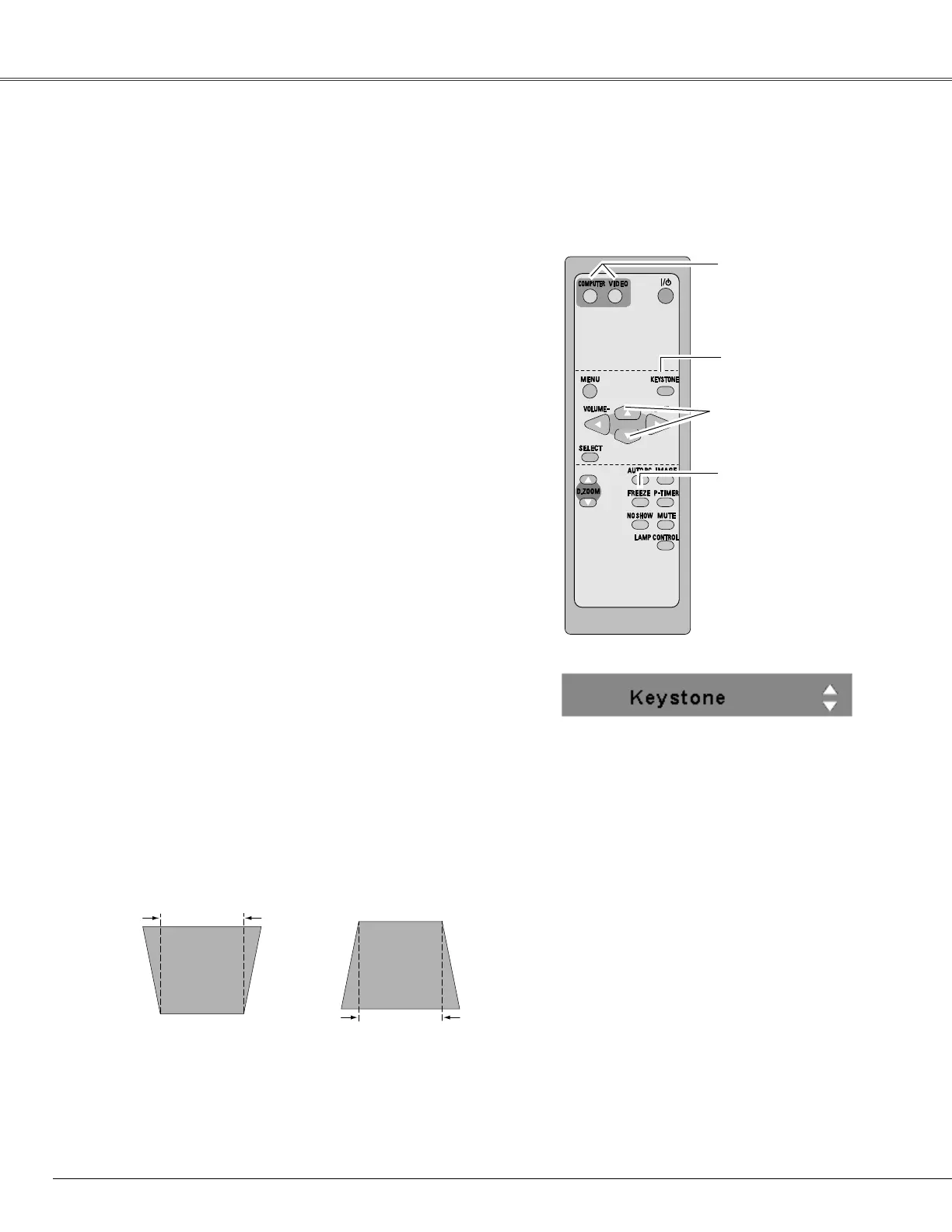

24
Remote Control
Remote Control Operation
For some frequently used operations, using the remote control is advisable.
Just pressing one of the buttons enables you to make the operation, and no need for calling up the On-Screen
Menu.
COMPUTER /VIDEO
button
Note:
See the next page for the other buttons.
Press the FREEZE button on the remote control to freeze
the picture on the screen. To cancel the Freeze function,
press the FREEZE button again or press any other button.
FREEZE button
KEYSTONE button
Press the COMPUTER or VIDEO button on the remote
control to select the input source.
For more detail, see pp.26, 35, 36.
COMPUTER / VIDEO button
Basic Operation
FREEZE button
The arrows are white when there is no correction.
The direction of the arrow being corrected turns red.
The arrows disappear at the maximum correction.
If you press the KEYSTONE button on the remote
control once more while the keystone dialog box is
being displayed, the keystone adjustment will be
canceled.
The adjustable range can be limited depending
on the input signal.
If a projected picture has keystone distortion, correct the
image with Keystone adjustment.
Press the KEYSTONE button on the remote control. The
keystone dialog box will appear.
Correct keystone distortion by pressing the Point ed
buttons. Keystone adjustment can be memorized. (p.42)
Reduce the upper width
with Point e button.
Reduce the lower width
with Point d button.
KEYSTONE button
POINT ed buttons
