Use the Point 7 8 buttons to adjust the horizontal area
displayed by this projector.
Display area H
Use the Point 7 8 buttons to adjust the vertical area
displayed by this projector.
Display area V
Reset
Store
Exit the PC Adjust Menu.
Quit
To store the adjusted data, select Store and then press the
SELECT button. Move the red arrow pointer to one of the
Modes 1 to 5 in which you want to store, and then press
the SELECT button.
To reset the adjusted data, select Reset and press the
SELECT button. The confirmation box will appear and then
select [Yes]. All adjustments will return to their previous
figures.
Mode free
To clear the stored data, select Mode free and then press
the SELECT button. Move the red arrow pointer to the
Mode that you want to clear and then press the SELECT
button.
✔Note:
Display area (H/V) cannot be selected when 480i, 575i, 480p,
575p, 720p, 1035i, or 1080i is selected in the PC System Menu
(p.27).

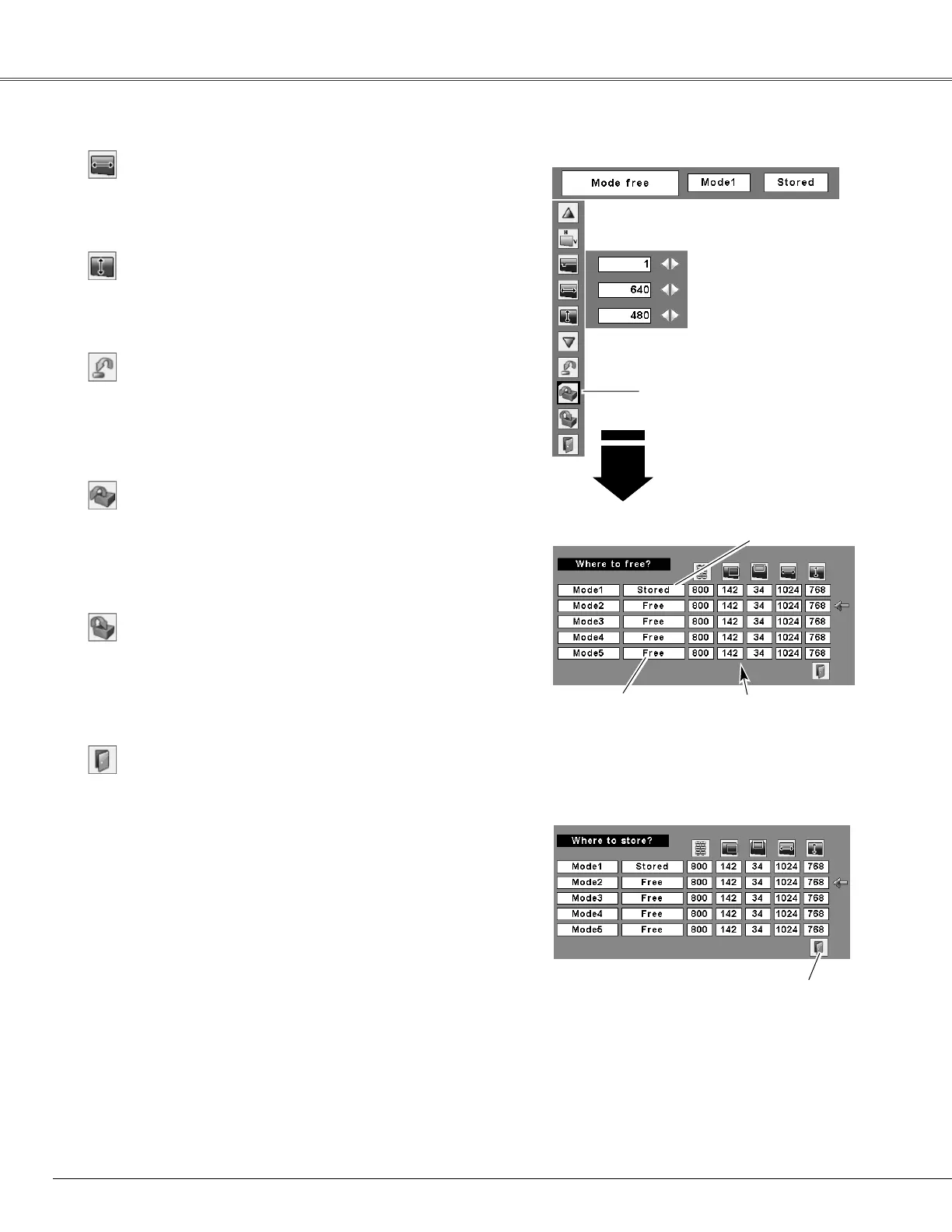

Computer Input
Move the red frame
pointer to an item and
press the SELECT
button.
Vacant
Values of “Total dots,”
“Horizontal,” “Vertical,”
“Display area H,” and
“Display area V.”
Close this dialog box.
To store adjusted data
To clear adjusted data
This Mode has stored
parameters.
