Sanyo PLC-XU106

-26-

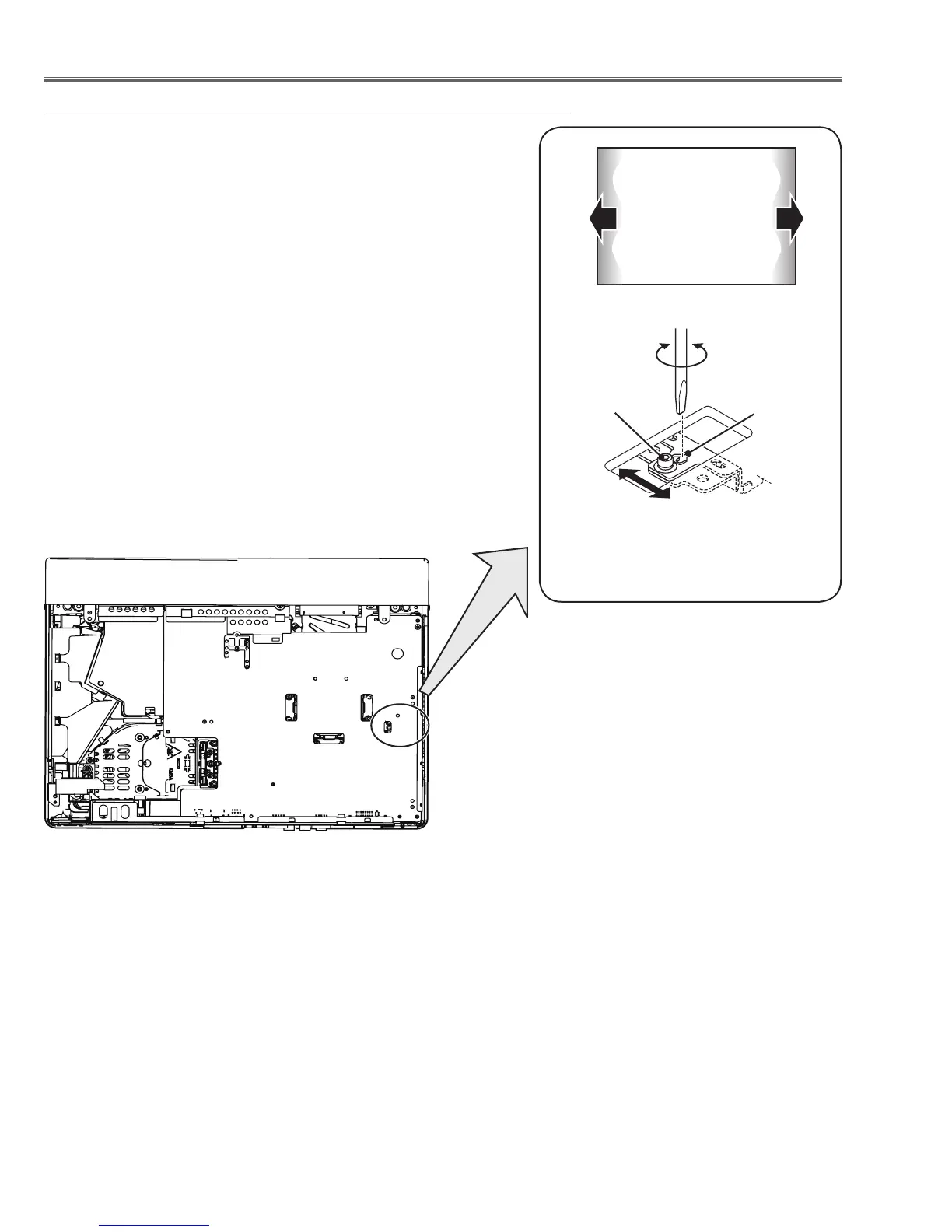

Fig.3
A
Slot B
a
b
b
Moving of slot B
a
White
1 Turn the projector on and input an all-white signal.
2 Adjust the adjustment base of relay lens assy to make color unifor-
mity in white.
If the shading appears on the left or right of the screen as shown in
Fig.3, loosen 1 screw A, and adjust the slot B to make color unifor-
mity in white by using a slot screwdriver.
3 Tighten the screw A to fix the relay lens unit.
Relay lens-Out adjustment
Optical Adjustments
