Sanyo PLC-XU115 Service Manual

-16-
Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top , Cabinet Front and Main Board following to the “Mechanical Dis-
assembly”.
Disassembly requires a 2.0mm hex wrench.

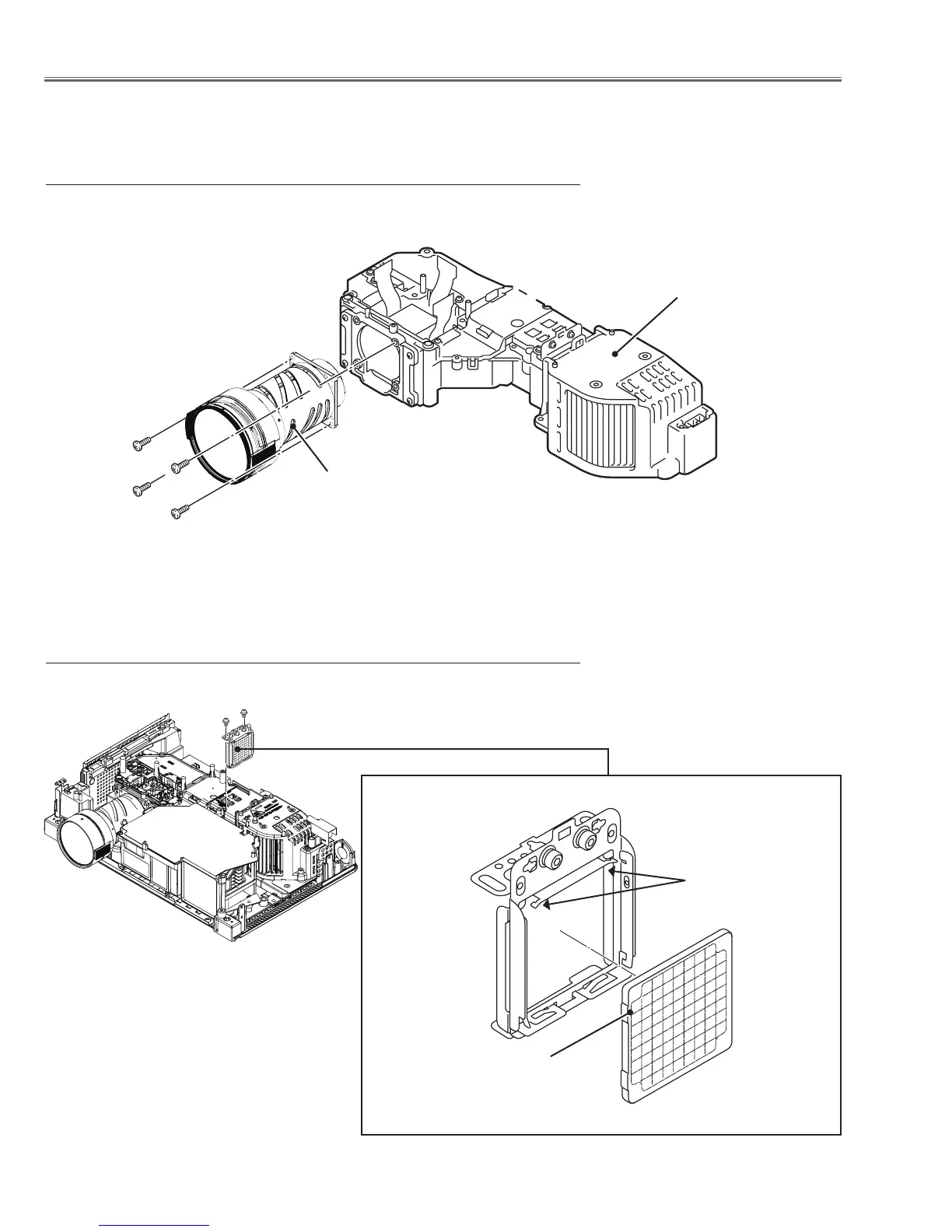

z Projection lens disassembly
(M2.5x8)x4
Fig.1
x Integrator lens-in disassembly
Hooks
Integrator lens-in
Integrator Lens-In Ass'y
(M2.5x5)x2
Fig.2
* Rugged surface
(Behind)
Projection lens
Optical unit
Note: The optical unit should be removed from the cabinet bottom before removing the projection lens.
