Sanyo PLC-XU115 Service Manual

-21-
Optical Parts Disassembly
527
528
5
9
Fig.8
1
6
10

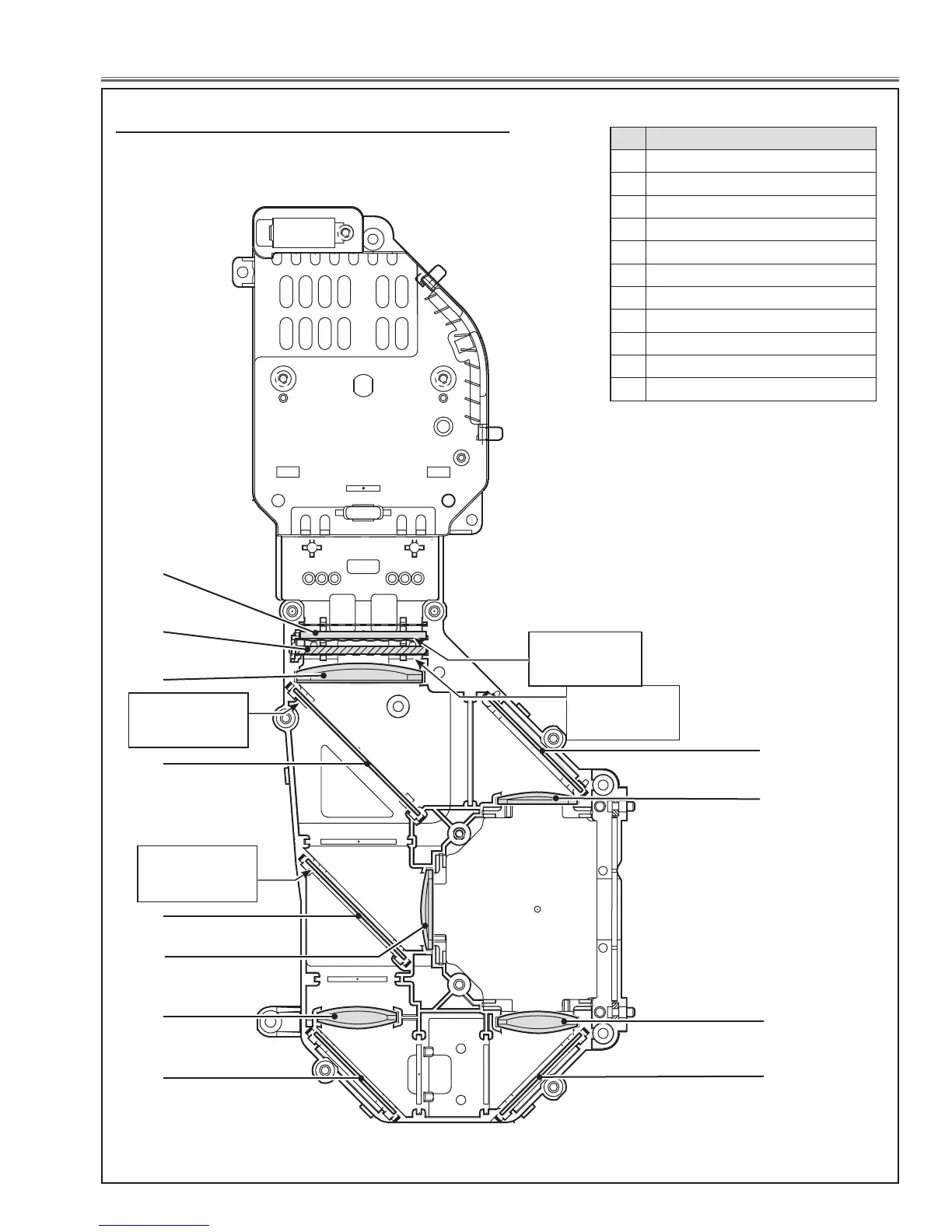

When mounting or assembling the optical parts in the opti-
cal unit, the parts must be mounted in the specified loca-
tion and direction as shown in figure below.
2
3
4
8
8
11
, Locations and Directions
Rugged surface
is facing this
side.
Point marker is
printed on this side
up
Point marker is
printed on this side
up
No. Parts Name
1 Integrator lens (OUT)
2 Prism beam splitter (PBS)
3 Condenser lens (OUT)
4 Dichroic mirror (B)
5 Dichroic mirror (G)
6 Condenser lens (G)
7 Relay Lens (IN)
8 Mirror (R)
9 Condenser lens (R)
10 Condenser lens (B)
11 Mirror (B)
7
Film attached
side is facing this
side.

Sanyo PLC-XU115 Specifications

General

Projection distance	0.93/11.47 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-40 - 40 °
I/O ports	SD Card Slot
Audio input	1
Aspect ratio	4:3
Special features	Soft Carry Bag
Networking features	Ethernet & Wireless
F-number (relative aperture)	1.7
Lamp type	NSH
Lamp power	275 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Dot clock scanning frequency	140 MHz
Analog signal format system	NTSC, PAL, SECAM
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	266 W

Weight and Dimensions

Package weight	3500 g
