Sanyo PLC-XU115 Service Manual

-12-

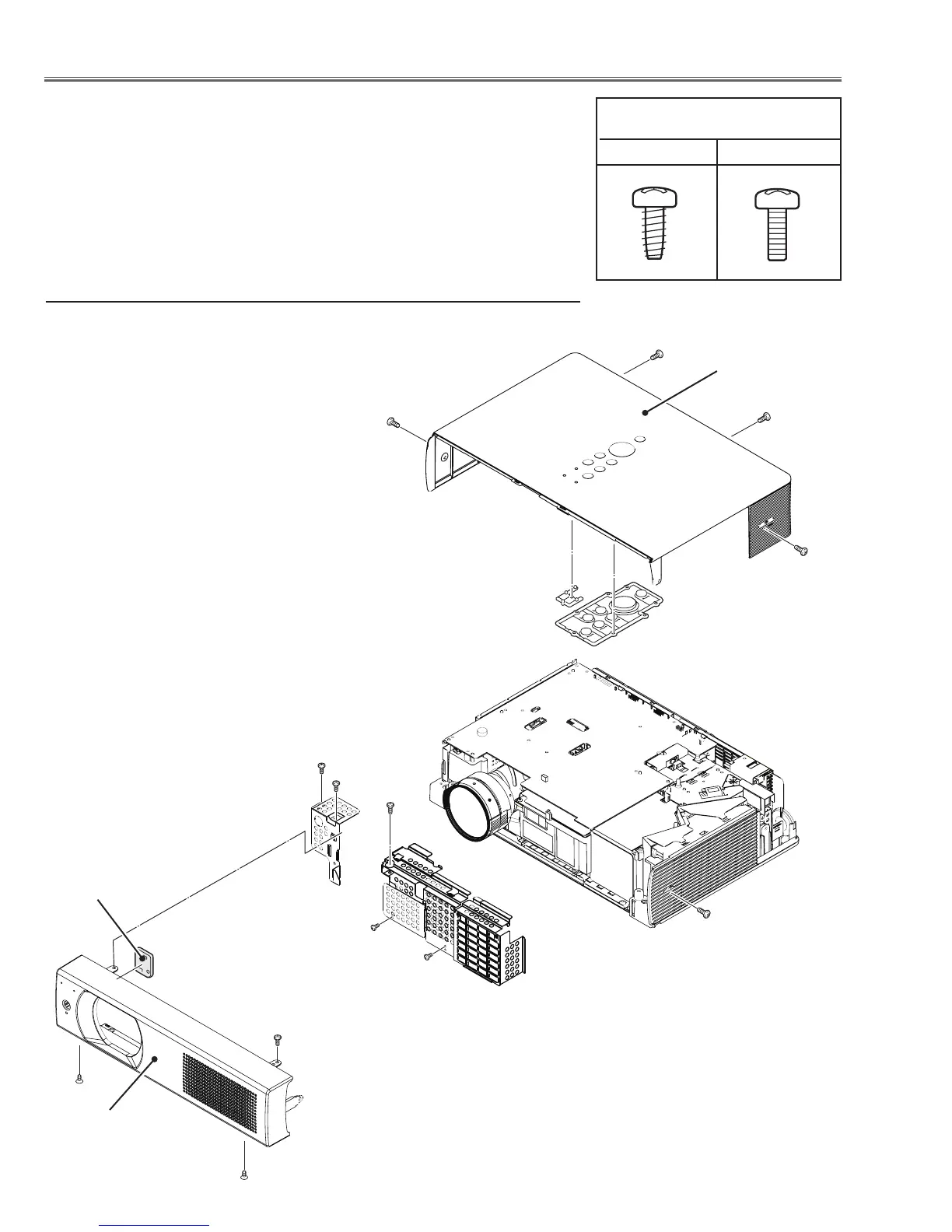

z Cabinet Top, Front, R/C Board removal
Mechanical Disassembly
Mechanical disassembly should be made following procedures in numerical or-
der.
Following steps show the basic procedures, therefore unnecessary step may
be ignored.
Caution:
The parts and screws should be placed exactly the same position as the original
otherwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type
(T3x10)(Black)x5
Cabinet front
R/C Board
Fig.1
(M2.5x6)
Cabinet top
(M2.5x6)x3
((T2x6)X2
1. Remove the cabinet top.
2. Remove the Cabinet front.
3. Remove the R/C Board.
Control Buttons
(T3x8)x2

Sanyo PLC-XU115 Specifications

General

Projection distance	0.93/11.47 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-40 - 40 °
I/O ports	SD Card Slot
Audio input	1
Aspect ratio	4:3
Special features	Soft Carry Bag
Networking features	Ethernet & Wireless
F-number (relative aperture)	1.7
Lamp type	NSH
Lamp power	275 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Dot clock scanning frequency	140 MHz
Analog signal format system	NTSC, PAL, SECAM
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	266 W

Weight and Dimensions

Package weight	3500 g
