Electrical Adjustments
1. Enter the service mode.
2. Receive the 16-step grey scale composite video sig-
nal with Video[Video] mode.

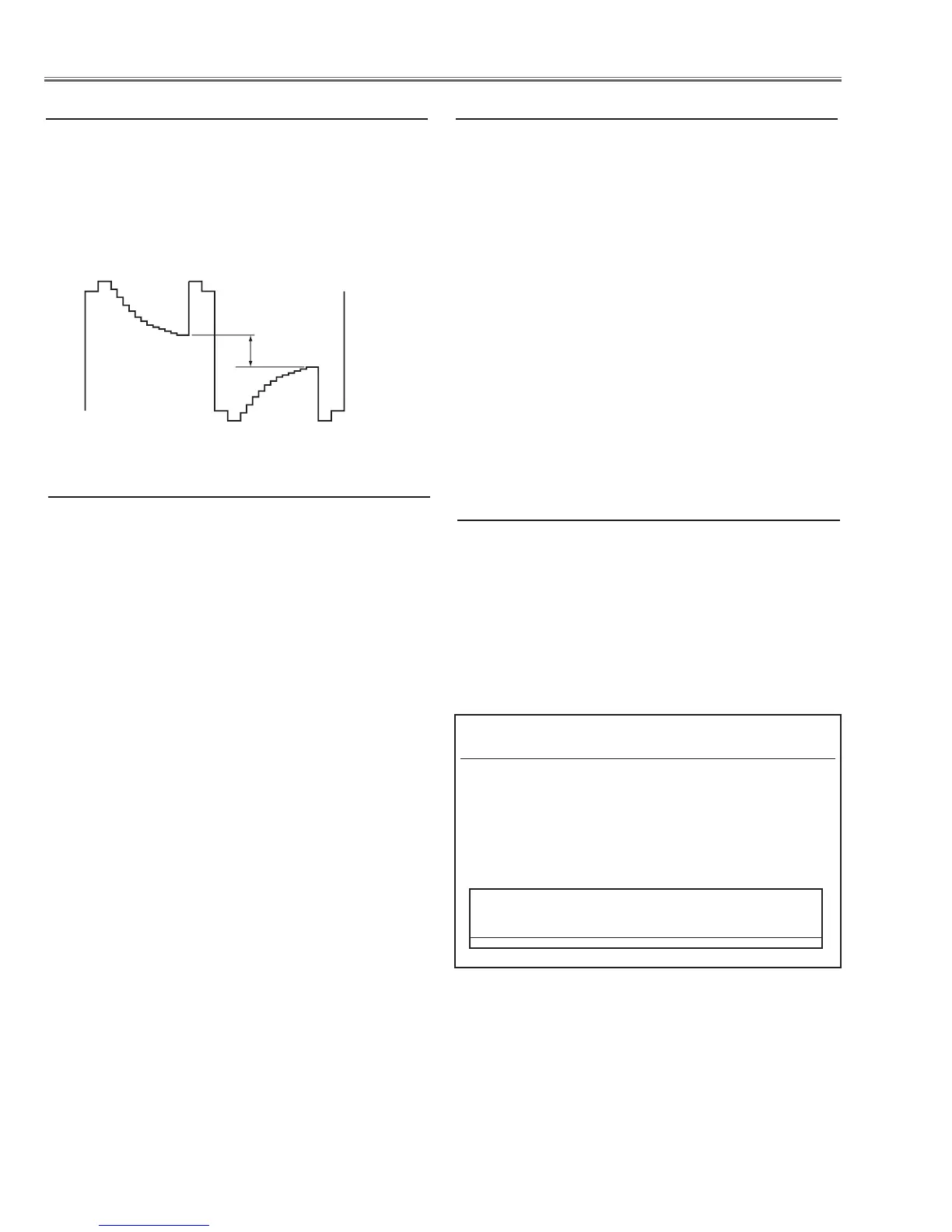

3. Connect an oscilloscope to test point “TP_G1” (+)
and chassis ground (-).
5. Select group no. “100”, item no. “6” and change data
value to adjust amplitude “a” to be 1.2V.
(a)
white level
white level
. 50% White adjustment [Video]
1. Enter the service mode.
2. Receive the 16-step grey scale composite video sig-
nal with Video[Video] mode.
3. Select group no. “100” item no. “7” (Red) or “8” (Blue),
and change Data values respectively to make a prop-
er white balance.
Confirm that the same white balance is obtained in video
and computer input.
⁄0 White Balance adjustment [Video]
After replacing the G-sensor circuit (IC3851, IC1802
and peripheral circuit), readjust the Keystone Offset
adjustment as follows.
1. Put the projector on a horizontal place with the
adjustable feet being minimum range and then enter
the service mode.
2. Select group no. “102”, item no. “3” and set data
value from “0” to “5”.
3. By pressing the SELECT button, the Keystone
Offset adjustment will start.
4. When it has completed, the "OK" message will
appear on the screen.
5. By pressing any button on the projector or the
remote control, the "OK" message will disappear.
(Data value of Group no. “102”, item no. “3” will be
back from “5” to “0” for initial value.)
⁄1 Keystone Offset adjustment
If the correction of the Color shading adjustment is nec-
essary, please adjust the "Color shading" by using the
"COLOR SHADING CORRECTION" software supplied
separately.The color shading correction adjustment for
this model should be performed with the whole-gray
patterns specified as below.
4-input patterns:
6.25% gray, 12.5% gray, 25% gray, 50% gray
⁄2 Color Shading Correction adjustment
Note On White Uniformity Adjustment
If you find the color shading on the screen, please ad-
just the white uniformity by using the proper computer
and “Color Shading Correction” software supplied sep-
arately.
The software can be order as ordered as follows;
COLOR SHADING CORRECTION Ver. 4.00
Service Parts No. 645 075 9611
To Next Page
