Sanyo PLC-XU115 Service Manual

-25-

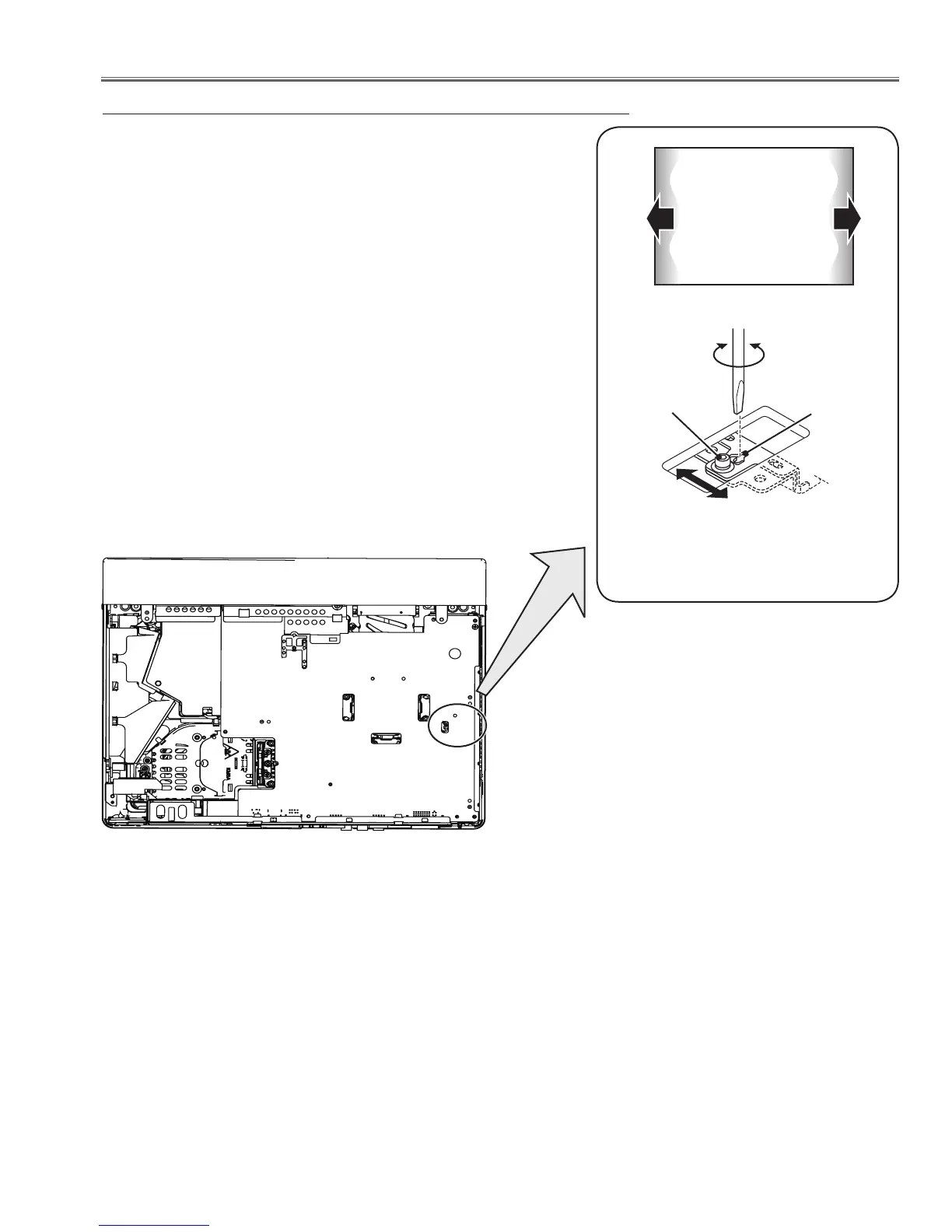

Fig.3
A
Slot B
a
b
b
Moving of slot B
a
White
1 Turn the projector on by a state of without FPC cables.
2 Project all of lights on the screen.
3 Adjust the adjustment base of relay lens assy to make color unifor-
mity in white.
If the shading appears on the left or right of the screen as shown in
Fig.3, loosen 1 screw A, and adjust the slot B to make color unifor-
mity in white by using a slot screwdriver.
4 Tighten the screw A to fix the relay lens unit.
Relay lens-Out adjustment
Optical Adjustments

Sanyo PLC-XU115 Specifications

General

Projection distance	0.93/11.47 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-40 - 40 °
I/O ports	SD Card Slot
Audio input	1
Aspect ratio	4:3
Special features	Soft Carry Bag
Networking features	Ethernet & Wireless
F-number (relative aperture)	1.7
Lamp type	NSH
Lamp power	275 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Dot clock scanning frequency	140 MHz
Analog signal format system	NTSC, PAL, SECAM
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	266 W

Weight and Dimensions

Package weight	3500 g
