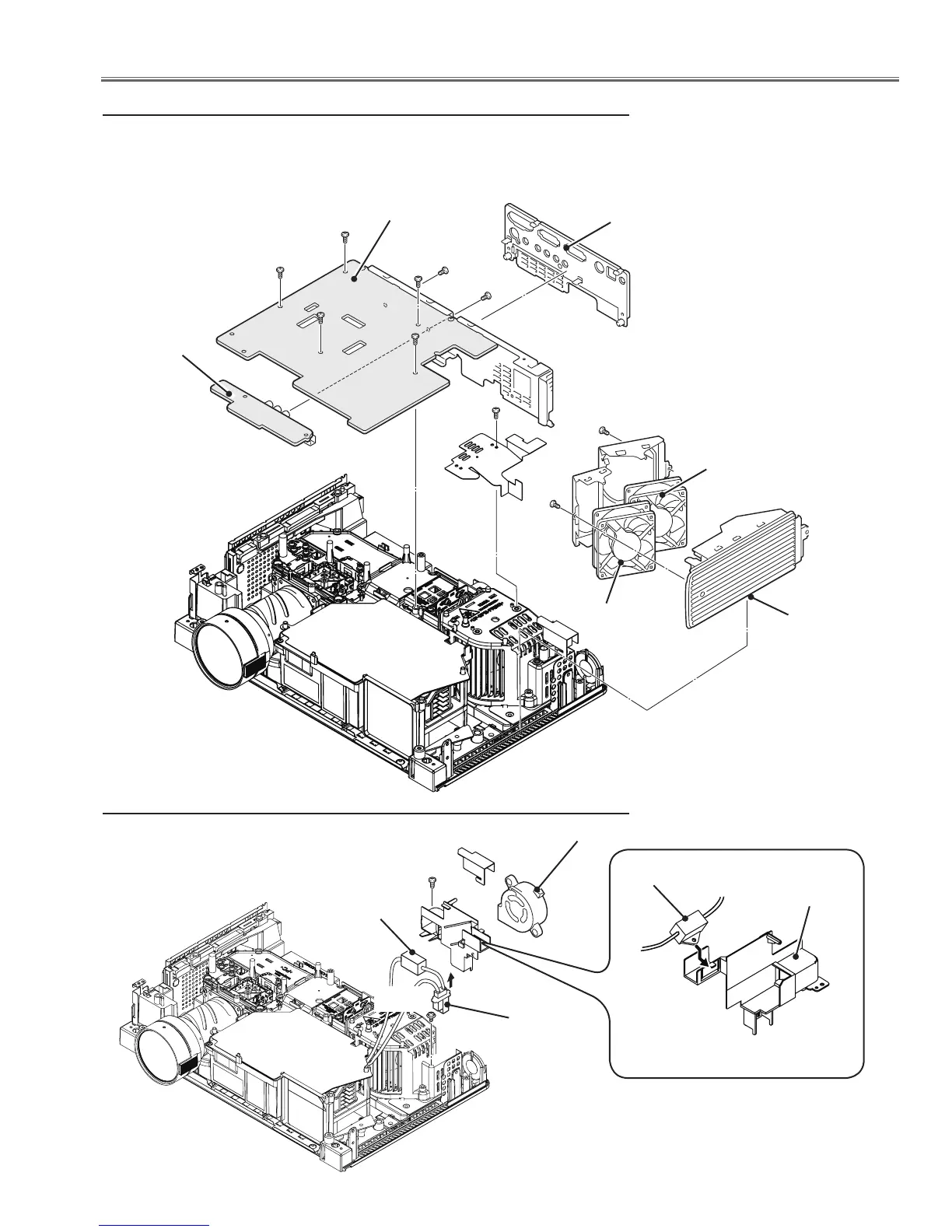

Mechanical Disassembly
x Main Board, AV Board, Rear Panel and Fans removal
Main board
Rear panel
(M2.5x6)
Fig.2
AV board
(M2.5x6)x5
Side grill
(T3x6)x2
(T3x6)(Black)x2
1. Remove the Main board.
2. Remove the Rear panel.
3. Remove AV board.
4. Remove fans (FN901, FN902).
FN901
FN902
(T3x8)
(M3x8)
FN907
1. Disconnect the lamp ballast socket and
remove fan (FN907)
Fig.3
c Fan (FN907) removal
Trigger
Trigger
Duct
* Trigger should be mounted as
the figure above.
Ballast
socket
