Sanyo PLC-XU115 Service Manual

-14-
Mechanical Disassembly

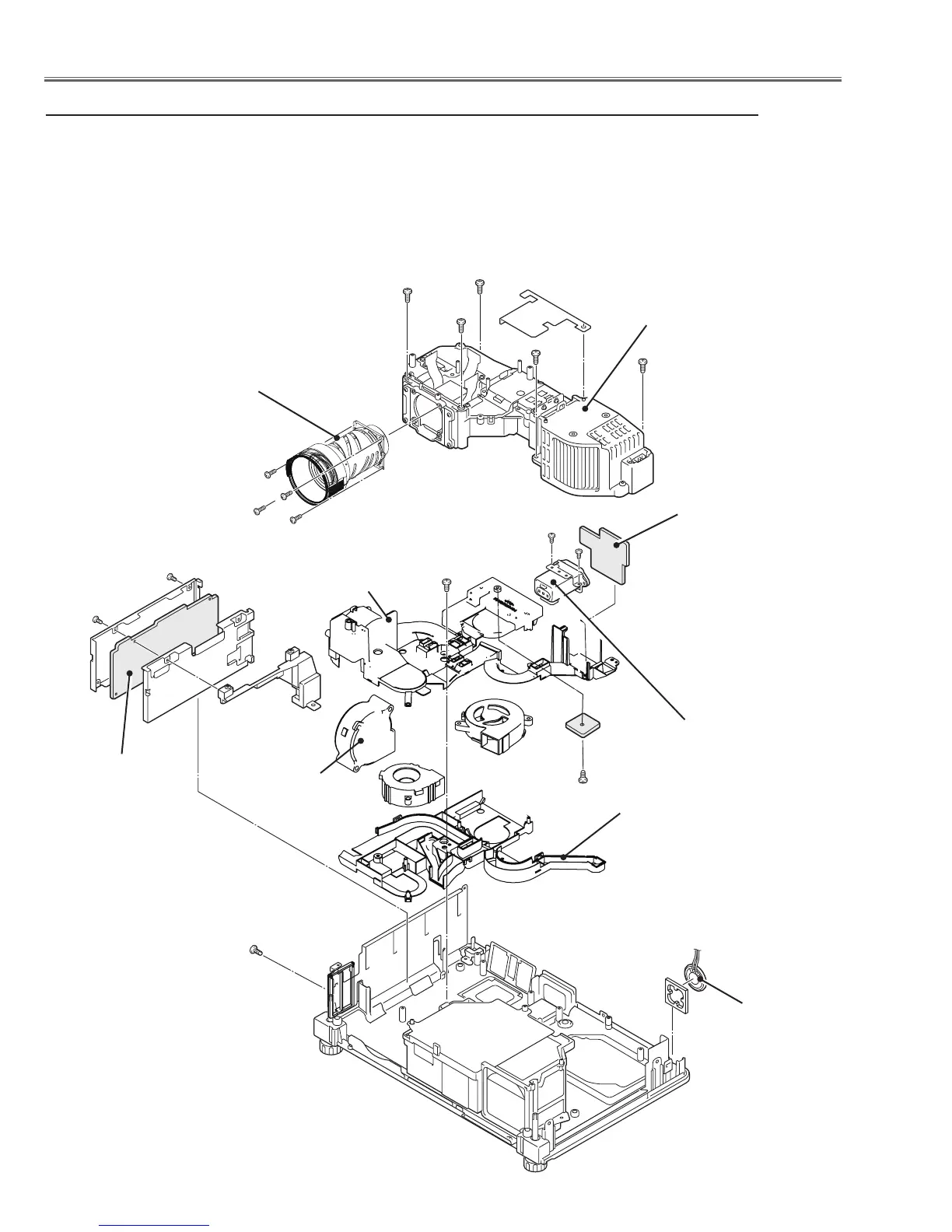

v Optical unit, NETWORK board, Temp., Line Filter board,Fans removal
Fig.4
Temp. board
SP901
Projection lens
Noise filter
Optical unit
(T3x6)x2
(T3x8)
(M2.5x8)x4
(T3x8)x2
(T3x6)
Line filter board
FN904
FN903
FN905
(M3x10)
Duct bottom
1. Remove the Optical unit.
2. Remove the NETWORK board.
3. Remove Screw (T3x8) and 4 hooks on the duct and then remove the Duct.
4. Remove the Duct top.
5. Remove the Line filter board and Temp. board.
6. Remove fans (FAN903, FAN904, FAN905) and SP901.
Duct top
Network board
(T3x8)x5

Sanyo PLC-XU115 Specifications

General

Projection distance	0.93/11.47 m
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-40 - 40 °
I/O ports	SD Card Slot
Audio input	1
Aspect ratio	4:3
Special features	Soft Carry Bag
Networking features	Ethernet & Wireless
F-number (relative aperture)	1.7
Lamp type	NSH
Lamp power	275 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Dot clock scanning frequency	140 MHz
Analog signal format system	NTSC, PAL, SECAM
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power consumption (typical)	266 W

Weight and Dimensions

Package weight	3500 g
