Part Names and Functions
Note:
To ensure safe operation, please observe the following
precautions:
– Do not bend, drop, or expose the remote control to moisture or
heat.
– For cleaning, use a soft dry cloth. Do not apply benzene, thinner,
spray, or any chemical material.

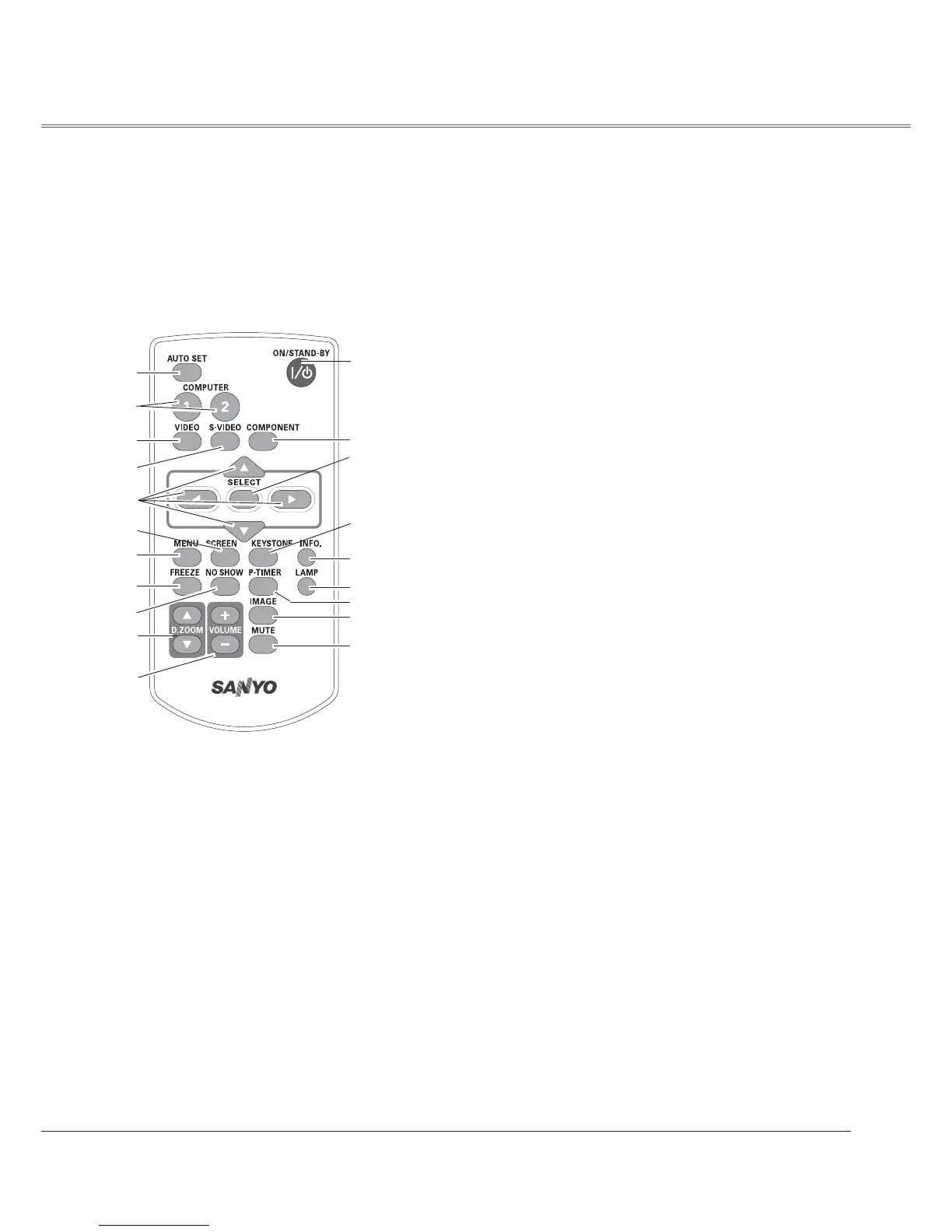

Remote Control
⑦
⑭
⑩
⑳
④
⑱
②
⑧
⑨
⑬
⑯
⑤
⑥
⑪
⑫
⑲
⑮
③
② AUTO SET button
Execute the setting of Auto setup (includes Input search, Auto
PC adj. and Auto Keystone functions) in the setting menu.
(pp.23, 45)
⑤ S-VIDEO button
Select the S-VIDEO input source. (p.37)
⑥ Point 54
buttons
– Select an item or adjust the value in the On-Screen Menu. (p.21)
– Pan the image in the Digital zoom +/- mode. (p.36)
⑬
MUTE button
Mute the sound. (p.24)
⑦ SCREEN button
Select a screen mode. (pp.26,35,43)
⑮ P-TIMER button
Operate the P-timer function. (p.26)
⑩ NO SHOW button
Temporarily turn off the image on the screen. (p.26)
⑯ LAMP button
Select a lamp mode. (pp.25, 53)
⑱ KEYSTONE button
Correct keystone distortion. (pp.23, 46)
⑲ SELECT button
– Execute the selected item. (p.21)
– Expand or compress the image in Digital zoom mode. (p.36)
⑧ MENU button
Open or close the On-Screen Menu. (p.21)
⑨ FREEZE button
Freeze the picture on the screen. (p.25)
⑫ VOLUME +/- buttons
Adjust the volume level. (p.24)
① ON/STAND-BY button
Turn the projector on or off. (pp.18-20)
③ COMPUTER 1/2 buttons
Select the COMPUTER 1 or COMPUTER 2 input source. (pp.27-28, 38)
⑪ D.ZOOM 54 buttons
Zoom in and out the images. (pp.25, 36)
⑭ IMAGE button
Select the image mode. (pp.26,33,40)
⑳ COMPONENT button
Select the COMPONENT input source. (p.38)
④ VIDEO button
Select the VIDEO input source. (p.37)
⑰
⑰ INFO. button
Operate the information function. (p.58)
