9
L R
Part Names and Functions

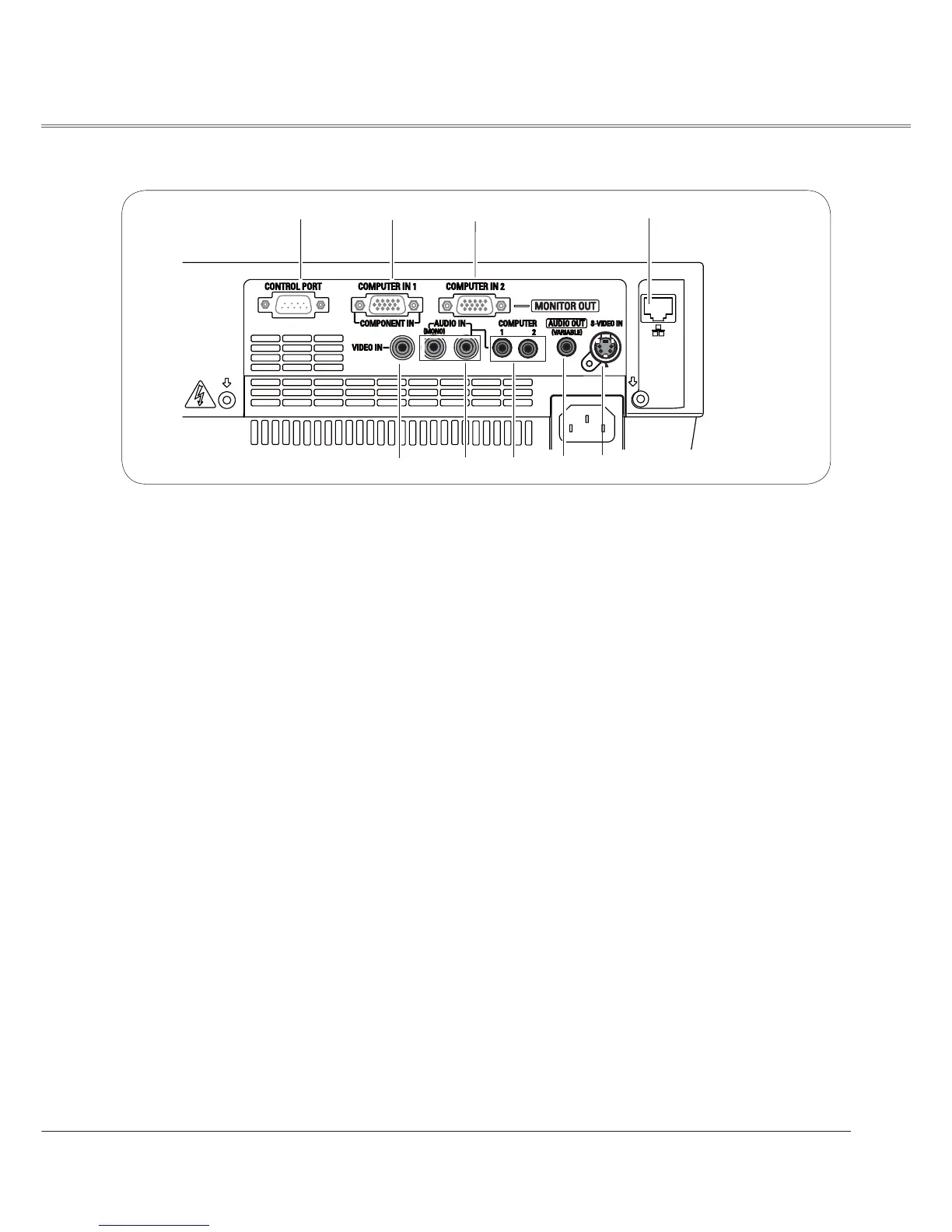

Rear Terminal
⑤ S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.15).
⑧ AUDIO IN
Connect the audio output signal from video
equipment connected to ⑤ or ⑨ to this jack.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack (p.15).
⑦ COMPUTER 1 / COMPUTER 2 AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to ②
or ③ to this jack. (pp14, 16)
⑨ VIDEO IN
Connect the composite video output signal to
this jack (p.15).
② COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output or component video output to
this terminal(pp.14,16).
⑥ AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.14-16).
This terminal outputs sound from AUDIO IN
terminal (⑦ or ⑧).
④ LAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
of "Network Set-up and Operation").
②③① ④
⑤
⑨
⑥⑧
① CONTROL PORT
When the projector is controlled by a computer,
connect to this jack with serial control cable.
③ COMPUTER IN 2 / MONITOR OUT
– Connect computer output to this terminal (p.14).
– This terminal can be used to output the incoming
analog RGB and Component signal from
COMPUTER IN 1/COMPONENT IN terminal to the
other monitor (pp.14,16).
⑦
To Next Page
