8

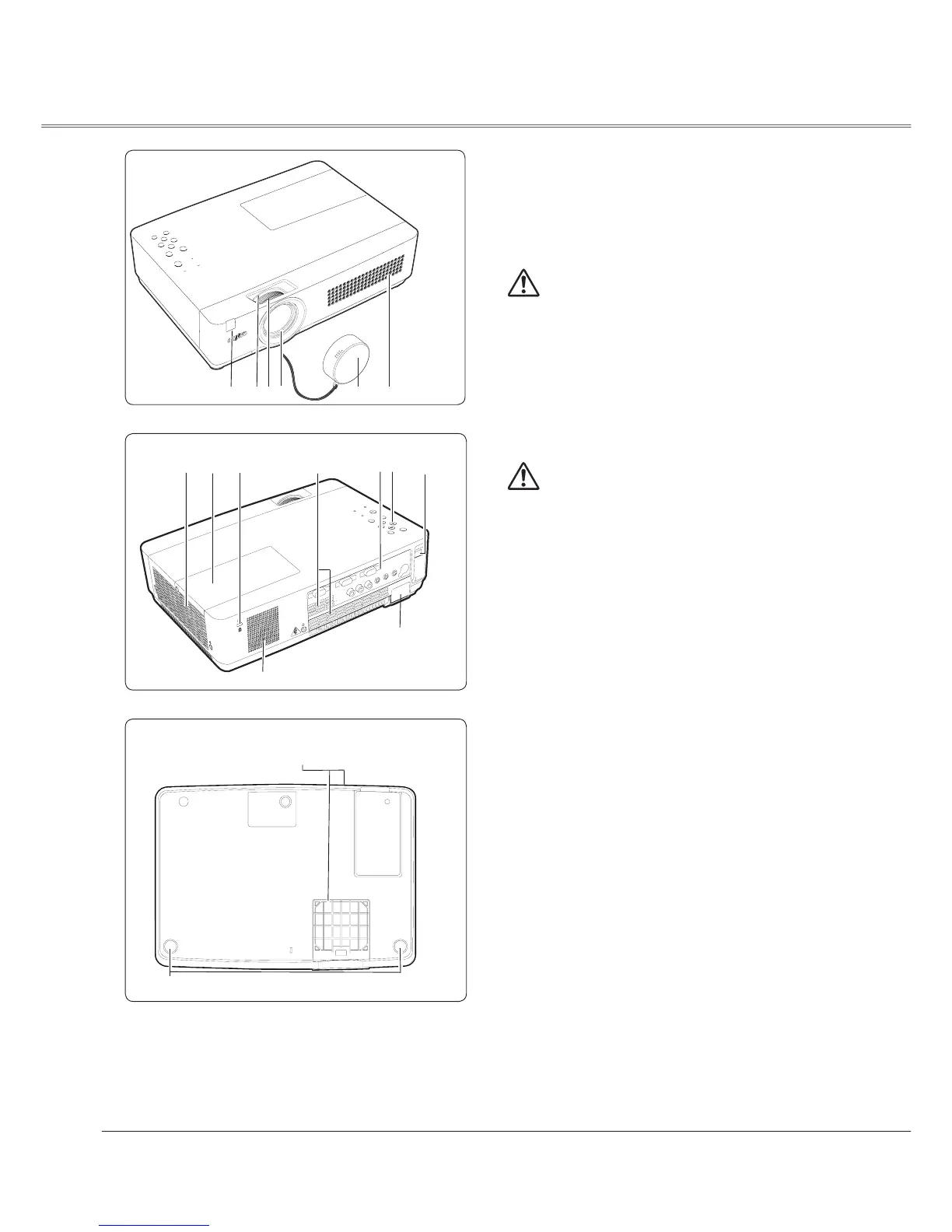

Part Names and Functions
①
⑤ ⑨③②
Front
Back
④
① Infrared Remote Receiver
② Zoom Ring
③ Focus Ring
④ Projection Lens
⑤ Lens Cap
(See page 61 for attaching.)
⑥ Speaker
⑦ Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent. Do not put
heat-sensitive objects near this side.
⑧ Lamp Cover
⑨ Air Intake Vent
⑩ Terminals and Connectors
⑪ Top Controls and Indicators
⑫LAN Connection Terminal
⑬Power Cord Connector
⑭ Filters
⑮ Adjustable Feet
Note:
⑫
LAN Connection Terminal is for the Network function.
Refer to the owner’s manual of “Network Set-up and
Operation” .
’
Kensington Security Slot
This slot is for a Kensington lock used to deter theft of
the projector.
’
Kensington is a registered trademark of ACCO Brands
Corporation.
CAUTION
Do not turn on a projector with lens cap attached. High
temperature from light beam may damage lens cap and
result in fire hazard.
Bottom
⑭
⑦
⑩
⑨
⑥
⑪
⑬
⑫
⑧
⑮
’
