Sanyo PLC-XU300A - Connecting to Component Video Equipment

16
Installation

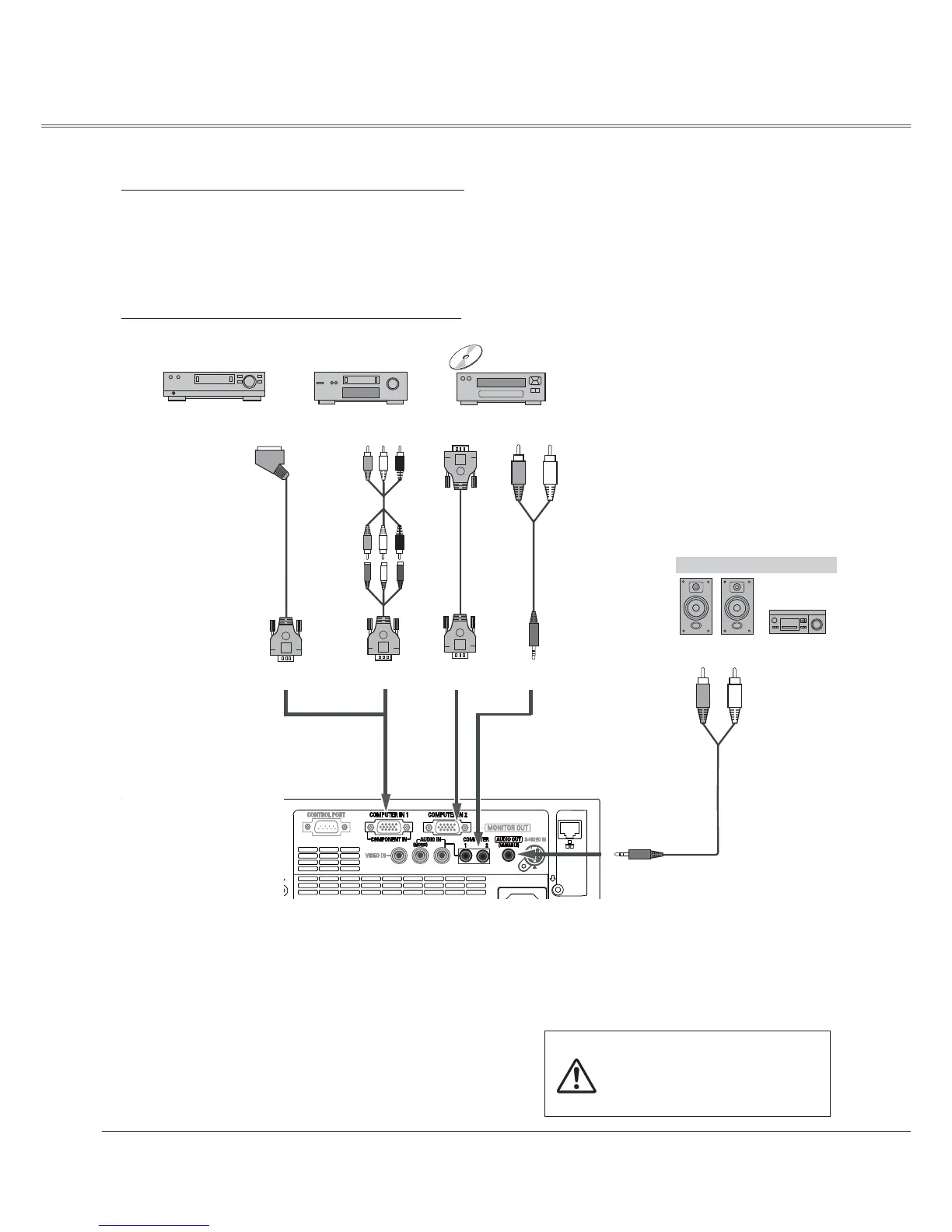

Connecting to Component Video Equipment
Note:
• When the AUDIO OUT is plugged-in, the projector's
built-in speaker is not available.
• See page 73 for ordering optional cables.
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables.
L R
External Audio Equipment
COMPUTER IN 1 /
COMPUTER IN 2 AUDIO IN
Audio cable
(stereo)
Audio
cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-
pin Output
Audio Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 1/ COMPONENT IN
Cables used for connection
• Audio Cables
• Scart-VGA Cable
• VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with this projector.)
Monitor Input
COMPUTER IN 2 /
MONITOR OUTPUT
VGA cable
