Control of W-ECO MULTI SYSTEM
3
TD831077
III - 8
H
F
G
I
A
B
C
D
E
0180_M_
I
CENTRAL CTRL
SET CL
MODE
FAN SPEED
ON
OFF
•
•
SET TEMP.
UNIT
FLAP
AIR FLOW
SERVICE
TEST
R.C. No.
CHECK
SET
UNIT No.
No.CODE
SET TEMP.
°C
MODE FIXED
STANDBY
TIMER SET
DATA
MONITOR
ON OFF
AIM
SWEEP
A
SETTING
A
TEST / CHK
2. Optional Controller (remote controller)

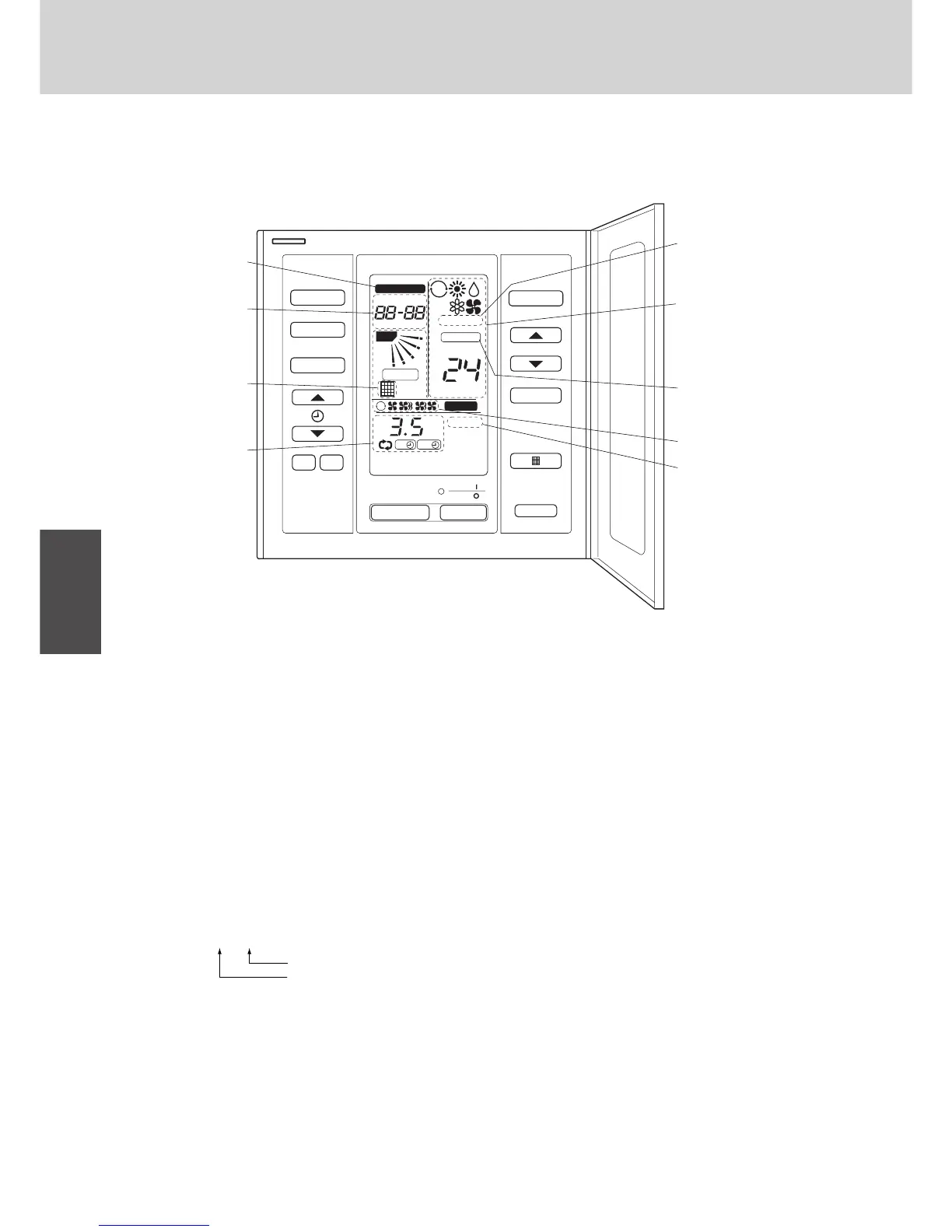

Display (Remote controller)
Description
A : When the unit is in the heating standby mode, the STANDBY indicator appears.
B : The currently selected operation mode is displayed.
C : This is displayed in case a different operation mode was selected already.
D : The currently selected FAN SPEED, FAN AIM and SWEEP status are displayed.
E : This is displayed only if an abnormality occurs within a unit.
F : This indicates the indoor unit address in case of group control.
Unit No.
1 — 2
Indoor unit No.
Refrigerant circuit No. (R.C. address)
G : This is displayed if it is time to clean the filter.
H : This is displayed during central control.
I : When setting the timer, the selected timer mode is displayed.
