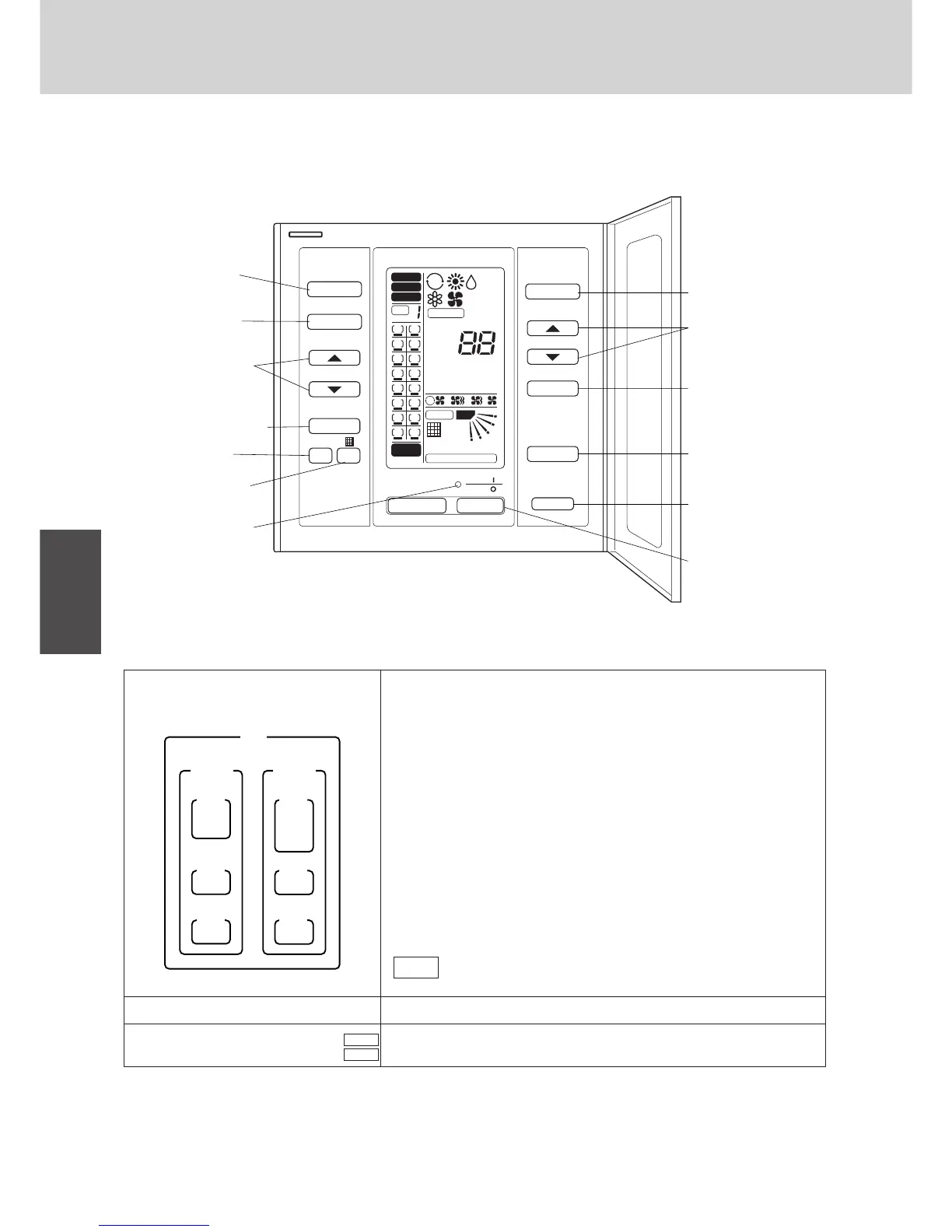

2. Optional Controller (system controller)
A: ALL / ZONE / GROUP Use this button to select one of the followings:
SELECT button
ALL: Used for turning the all air conditioners on and off.
ZONE: Used for turning the all air conditioners of each zone on and
off individually.
GROUP: Used for turing the (all) air conditioner(s) of each group on and
off individually.
NOTE Max. 4 zones and max. 16 groups (units) in a zone can be
set.
B: ZONE select button Use this button to select zone (1 to 4) to operate individually.
C: GROUP select button j Use this button to select the group (1 to 16) to operate
l individually.
