Control of W-ECO MULTI SYSTEM
3
TD831077
III - 38

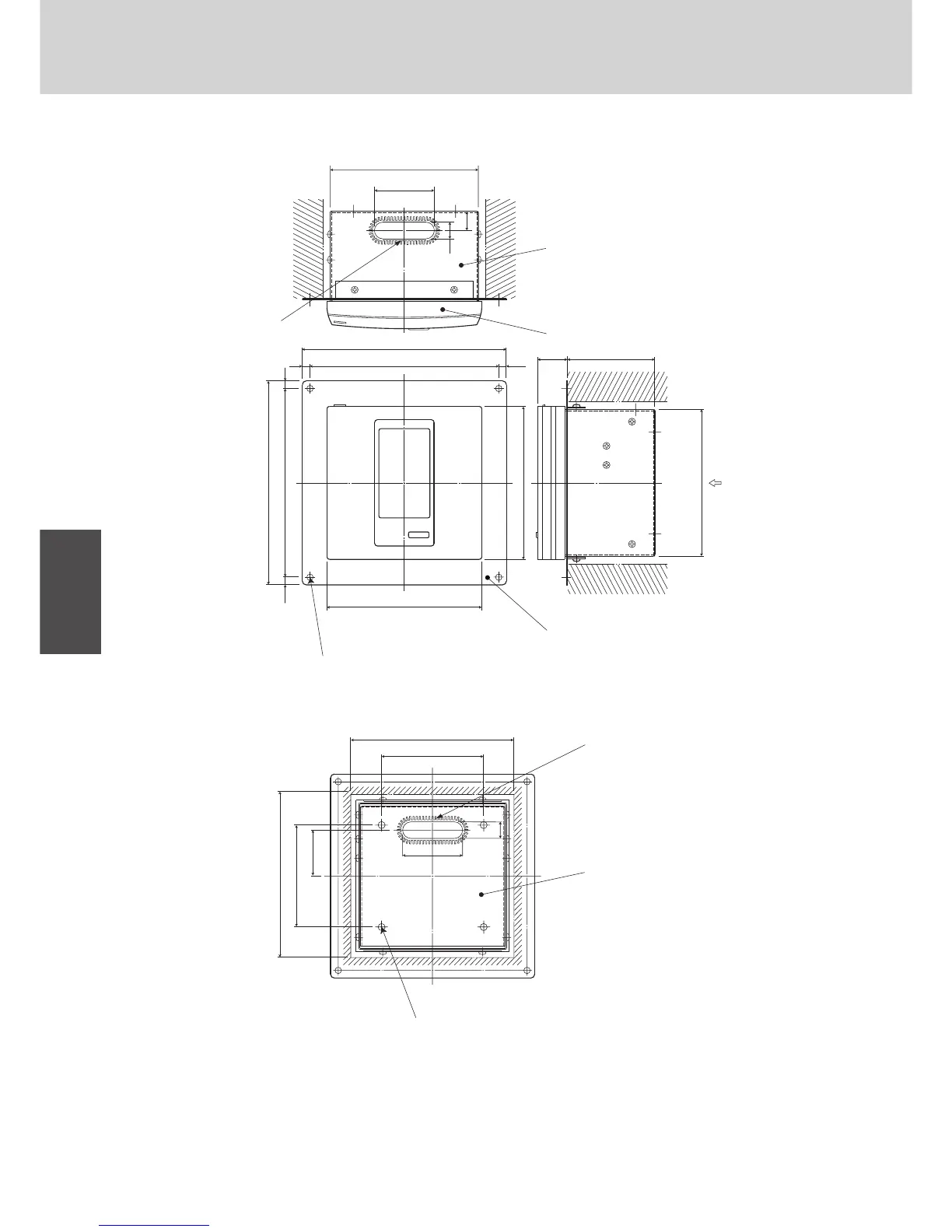

● Diagram of outer dimensions
* In order to mount the system controller flush with the wall, an
opening measuring 128 mm × 128 mm is necessary.
2. Optional Controller (system controller)
116
Electrical component box
Hole for electrical
wiring
Control unit
Unit: mm
Z
Mounting plate
(for flush mounting)
0215_M_I
4-ø 5 diameter holes
(for mounting)
47
15
13
160
148
6
(6)
122
160
148
6
(6)
120
115
69
24
128
80
128
80
36
47
13
Hole for electrical wiring
Rear plate
Z-view (black side)
0216_M_I
4-ø 5.5 diameter holes (for mounting)
