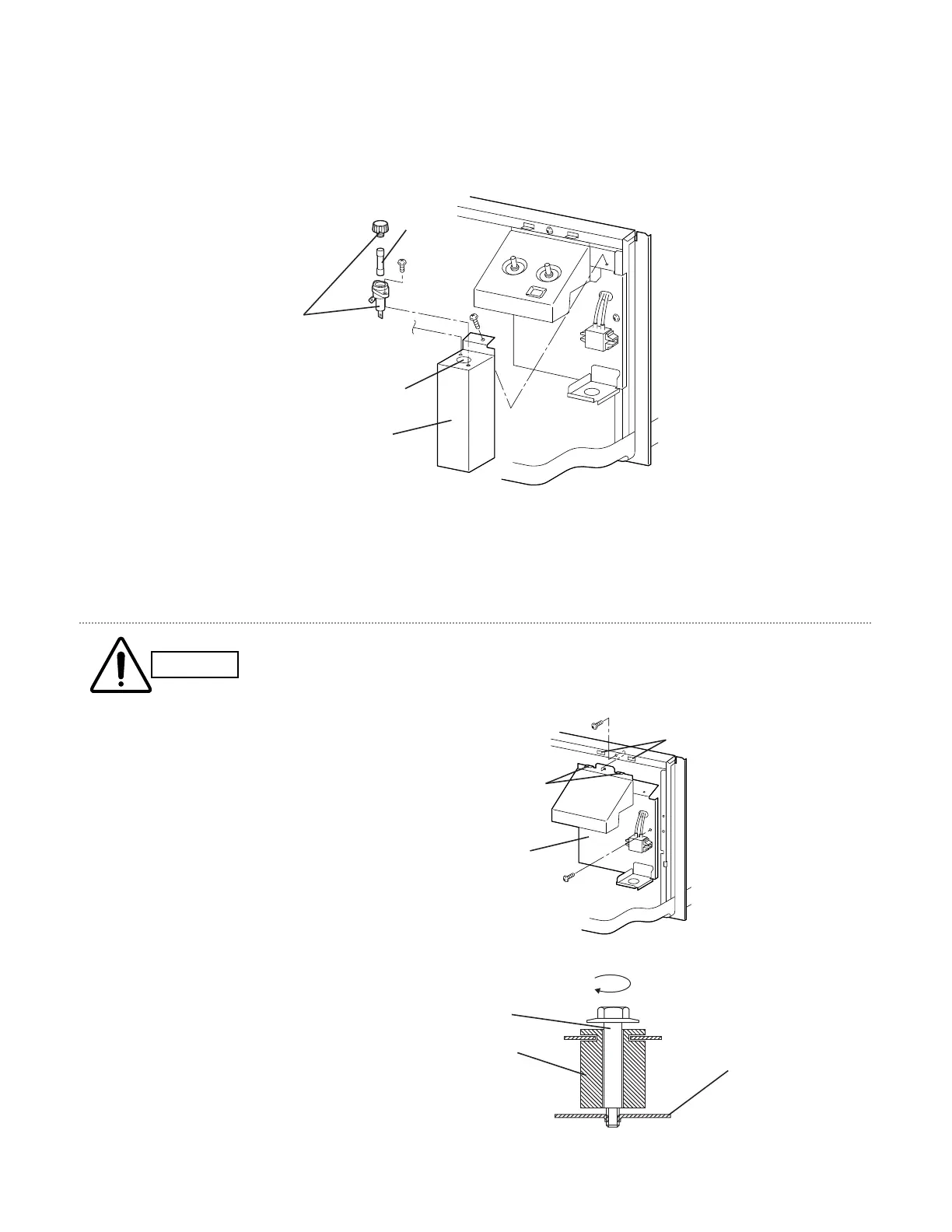

Cushion
rubbr
Compressor
bolt
Base pan
●
When servicing the compressor, do not
tighten the compressor bolt too strongly as
this may damage the base pan.
Tightening torque should be less than
approx. 43 lbs.·in. (50 kgf.·cm.).
Electrical
junction box
Hook
Slot
●
Before checking the operation of the air
conditioner, mount the electrical junction
box firmly by using 2 screws.
Supporting the box with only hooks and
slots is unstable, and may cause dropping
of the box.
Cover plate
(Junction box)
Holder
(Field supply)
Fuse
(Field supply)
Knock out hole
A knock-out hole is provided on the cover plate of the electrical junction box to mount the fuse
and fuse holder. Be sure to comply with local codes on choosing the fuse and the holder.
Knock-out Hole for Fuse
63
