Select the file name and press [●] or
select [▲] when the results are not to be
saved in a file
Enter the desired operating frequency
After some seconds the results are
shown on the screen.
A screenshot can be captured by
selecting [●]

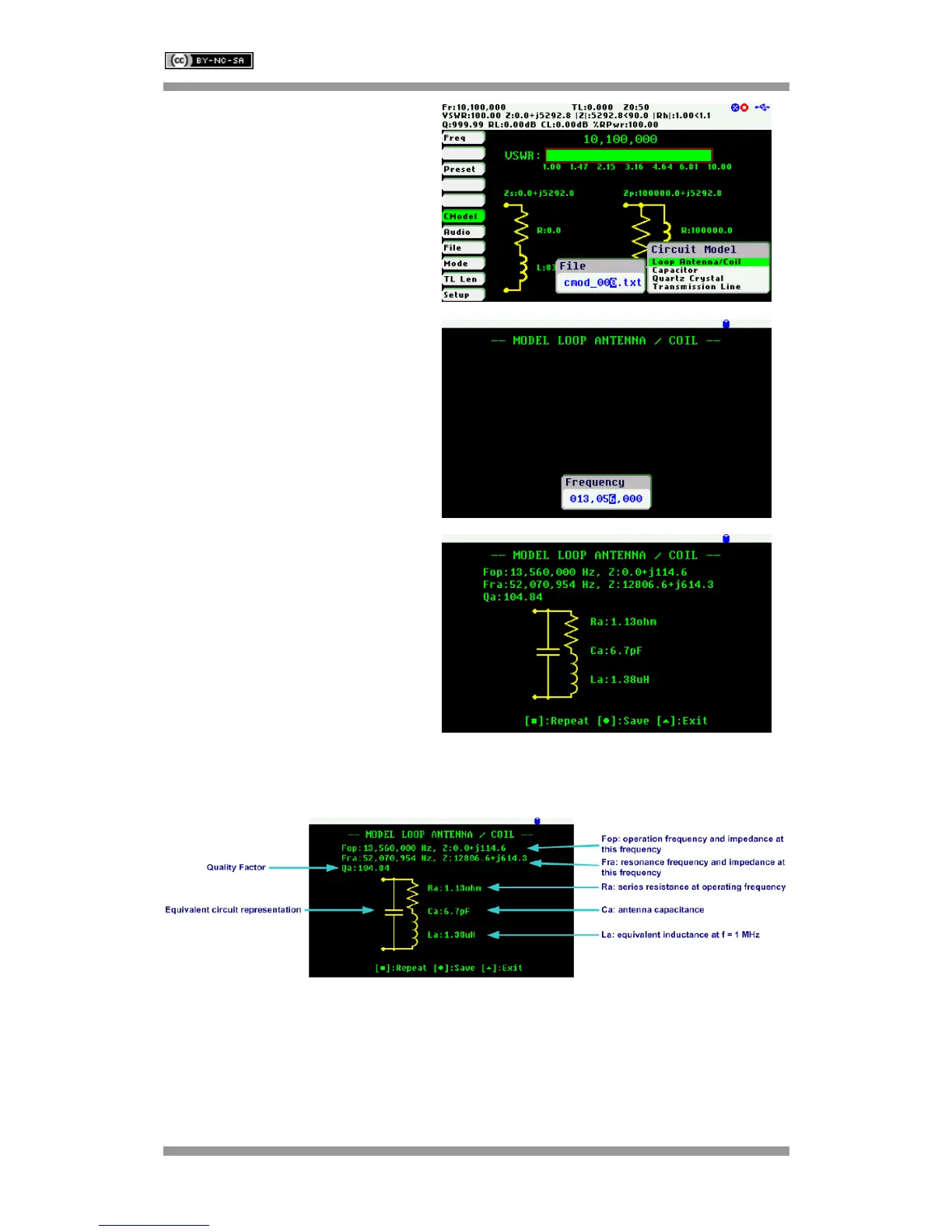

The figure below describes the measured parameters:
The internal procedure performed by the analyzer is as follows: the analyzer measures the
impedance at 1 MHz and at the desired operating frequency (e.g. 13.56 MHz). Then it searches
for the antenna’s self-resonant frequency and measures the impedance at that point. The
following parameters are extracted from these measurements:
