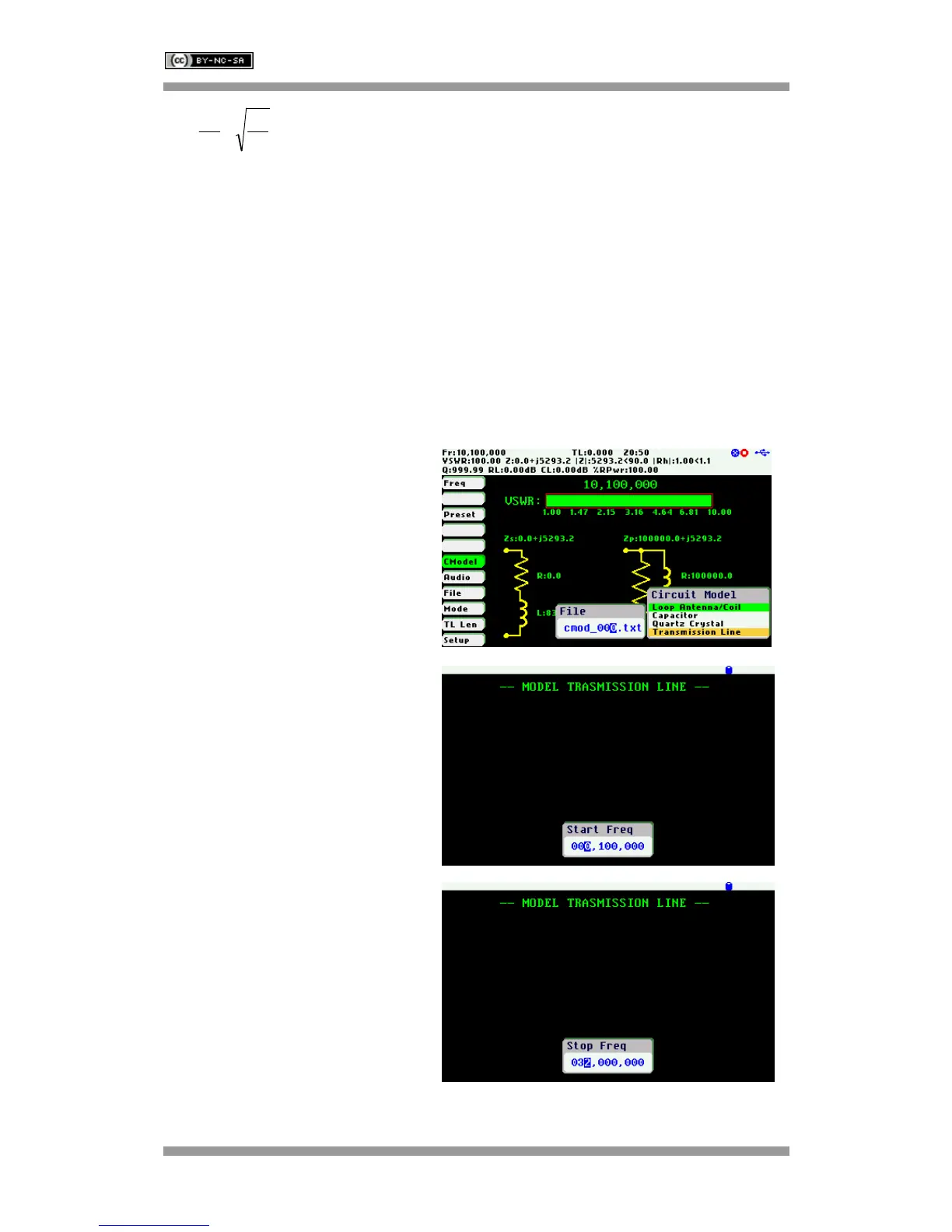

14.4 Transmission Line
This feature allows you to automatically measure different parameters having to do with
transmission lines, namely:
• The line's characteristic impedance (Z0)
• The true velocity factor
• The matched line loss in terms of dB over the total line length and in dB/100m
The measurement procedure is as follows:
Select the file name and press [●] or
select [▲] when the results are not to be
saved in a file
Enter the start frequency
Enter the stop frequency
