Fra Self-resonant frequency of the capacitor
Z(Fop) Z at operating frequency
Z(Fra) Z at resonance frequency
Ca Equivalent capacitance at F = 1 MHz
Ra Equivalent resistance at the self-resonant frequency
The capacitor’s parasitic inductance is calculated with the following equation:
2
)2(
1
FraCa
La
×××
=
π
The quality factor is calculated using the following equation:
)2(
1
RaCaFop
Qa
××××
=
π

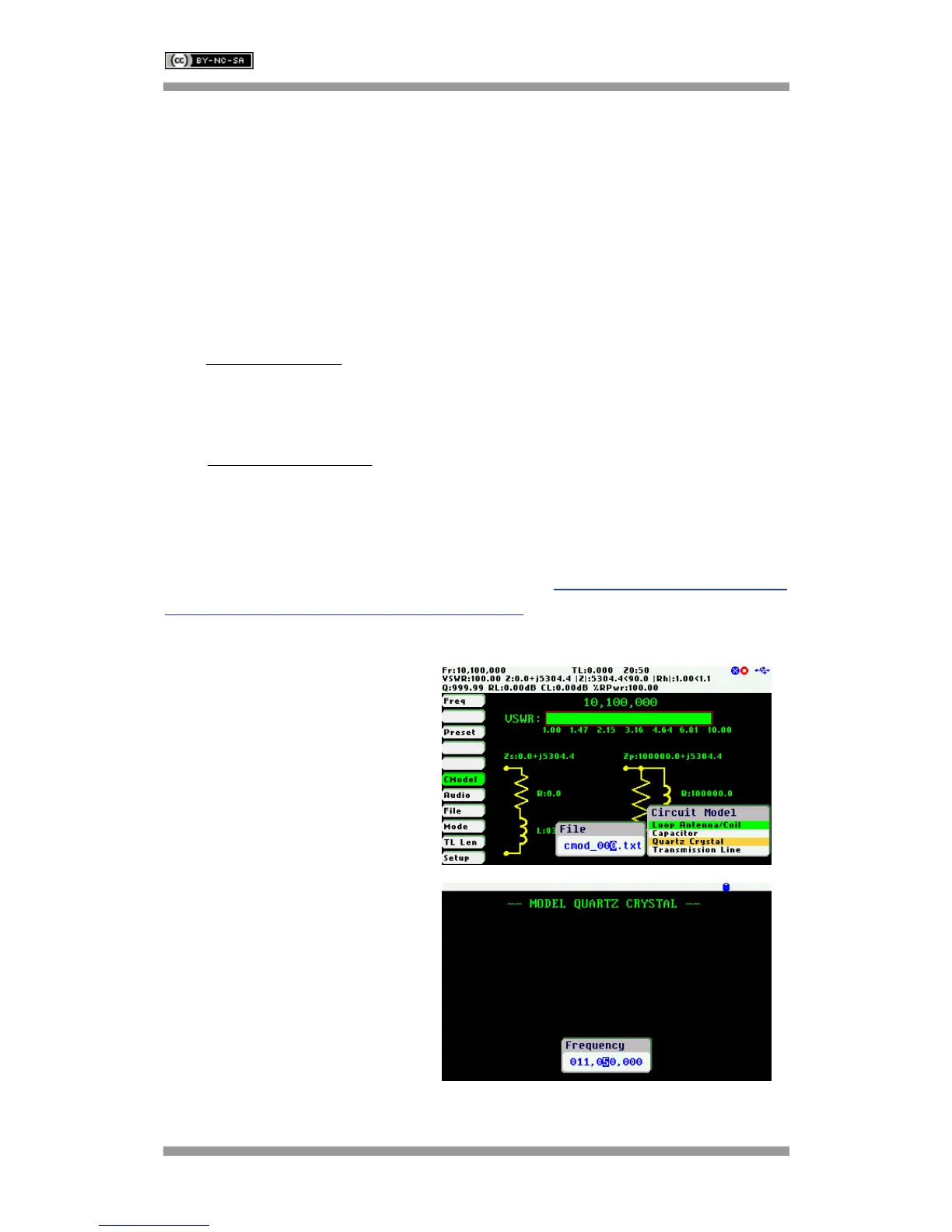

14.3 Quartz Crystal
This function determines the equivalent circuit model of quartz crystals. Detailed usage of this
function is described in the Application Note available at: http://www.sark110.com/application-
notes/equivalent-circuit-determination-of-quartz-crystals
The measurement procedure is as follows:
Select the file name and press [●] or
select [▲] when the results are not to be
saved in a file
Enter the frequency value, which should
be close to the expected resonant
frequency of the crystal
