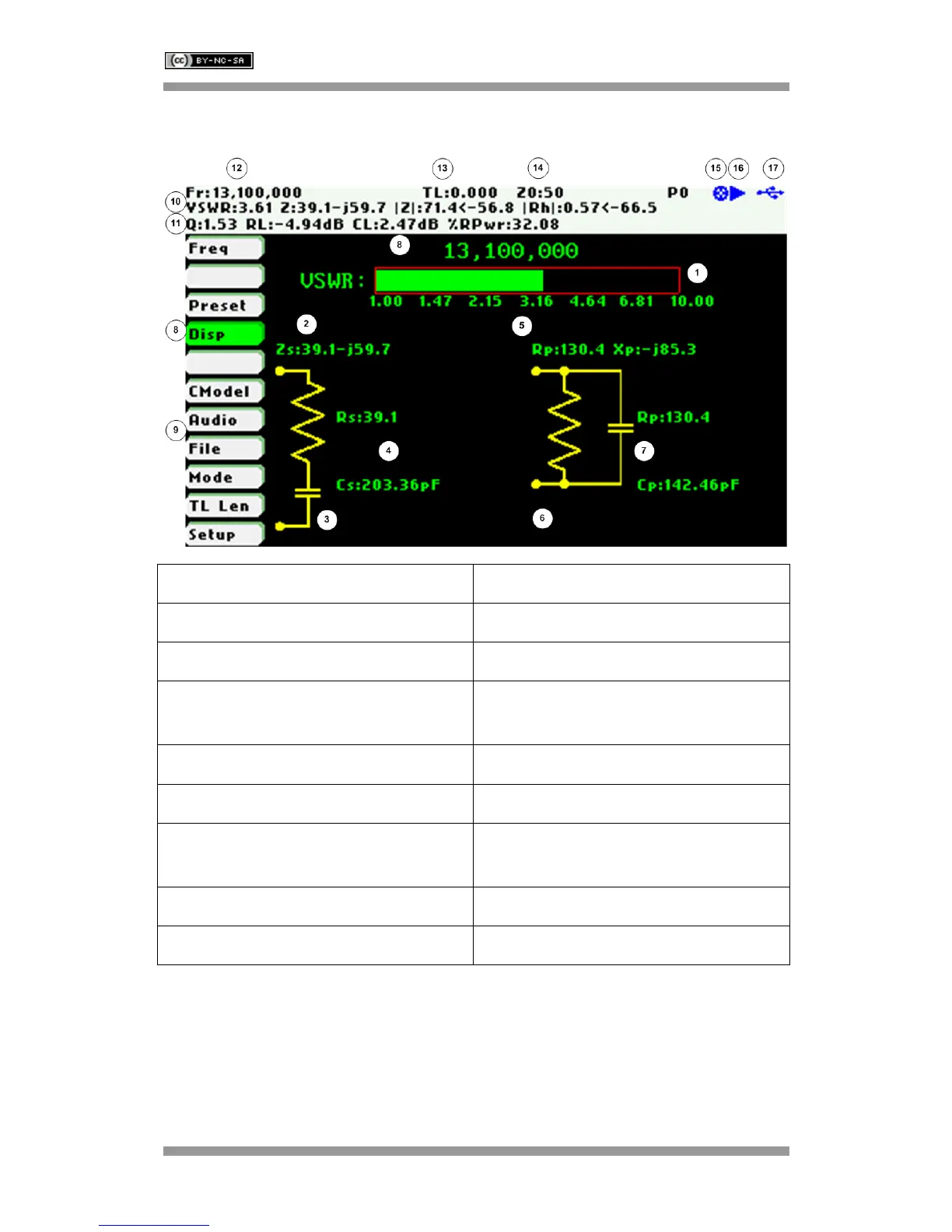

7 Single Frequency Mode
1 VSWR bar 10 Detailed measurements
2 Series impedance complex form 11 Detailed measurements extended
3 Circuit equivalent series 12 Frequency setting
4 Series resistance and equivalent
inductance (or capacitance) values
13 Transmission Line length setting
5 Parallel impedance complex form 14 Reference impedance setting
6 Parallel circuit equivalent 15 Calibration status
7 Parallel resistance and equivalent
inductance (or capacitance) values
16 Run/Hold status
8 Highlighted menu option 17 USB/Battery status
9 Main menu
The Single Frequency mode provides impedance measurements at a single frequency. All the
measured fundamental parameters at the selected frequency are shown in the display. In
addition, a VSWR graph is available for a quick visualization of this parameter. As well as the
two element equivalent circuit models, both series and parallel circuits are displayed as
schematics.
