6 OPAL Pro SATEL
The detector can be installed outdoors as well as indoors, in spaces with harsh
environmental conditions (high dustiness, high humidity, low or high temperatures, etc.).
Thus, you can use it in warehouses, production halls, or other industrial facilities.

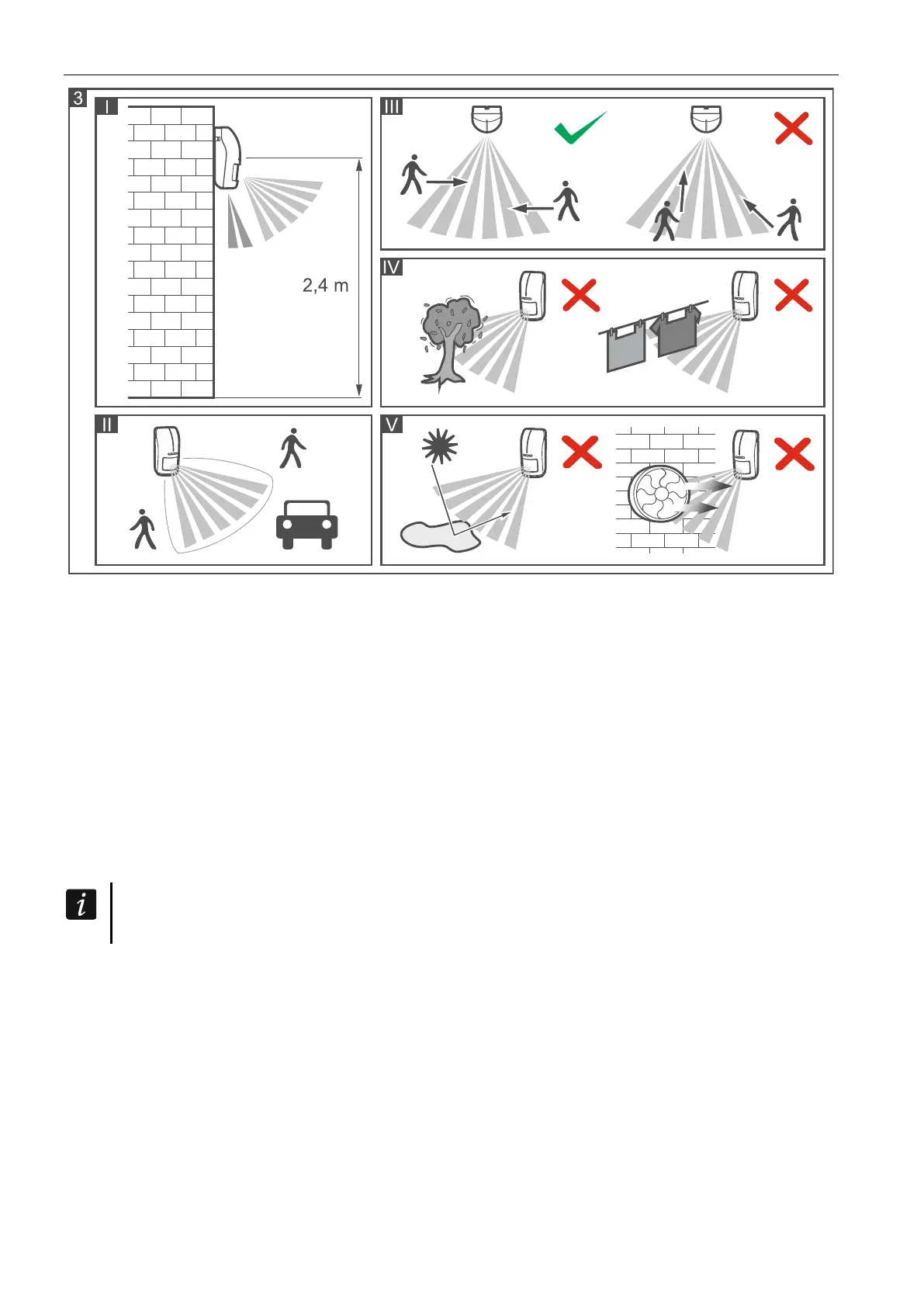

Install the detector at the recommended height (Fig. 3-I).
If traffic nearby or objects moving out of the protected area cause an alarm, move the
detector slightly downwards or reduce the detector sensitivity (Fig. 3-II).
Install the detector so that the expected movement of an intruder will be across the
coverage pattern (Fig. 3-III).
Don’t install the detector closer than 3 meters from the moving objects (e.g. tree branches,
bushes, laundry etc.) (Fig. 3-IV).
Don’t direct the detector on reflective surfaces or on fans or a heat sources (Fig. 3-V).
Do not install the detector in locations exposed to direct action of sun rays.
When putting two or more cables into the enclosure, it is advisable to place them in
heat shrink tube. It reduces the risk of getting water into the enclosure.
1. Remove the front cover (Fig. 4).
2. Remove the electronics module (Fig. 5).
