SATEL OPAL Pro 7
3. Make the opening for cable in the enclosure base.
4. Mount the enclosure base to the wall (see: “Wall mounting”), to the angle bracket
(see: “Angle bracket mounting”) or to the ball bracket (see: “Ball bracket mounting”).

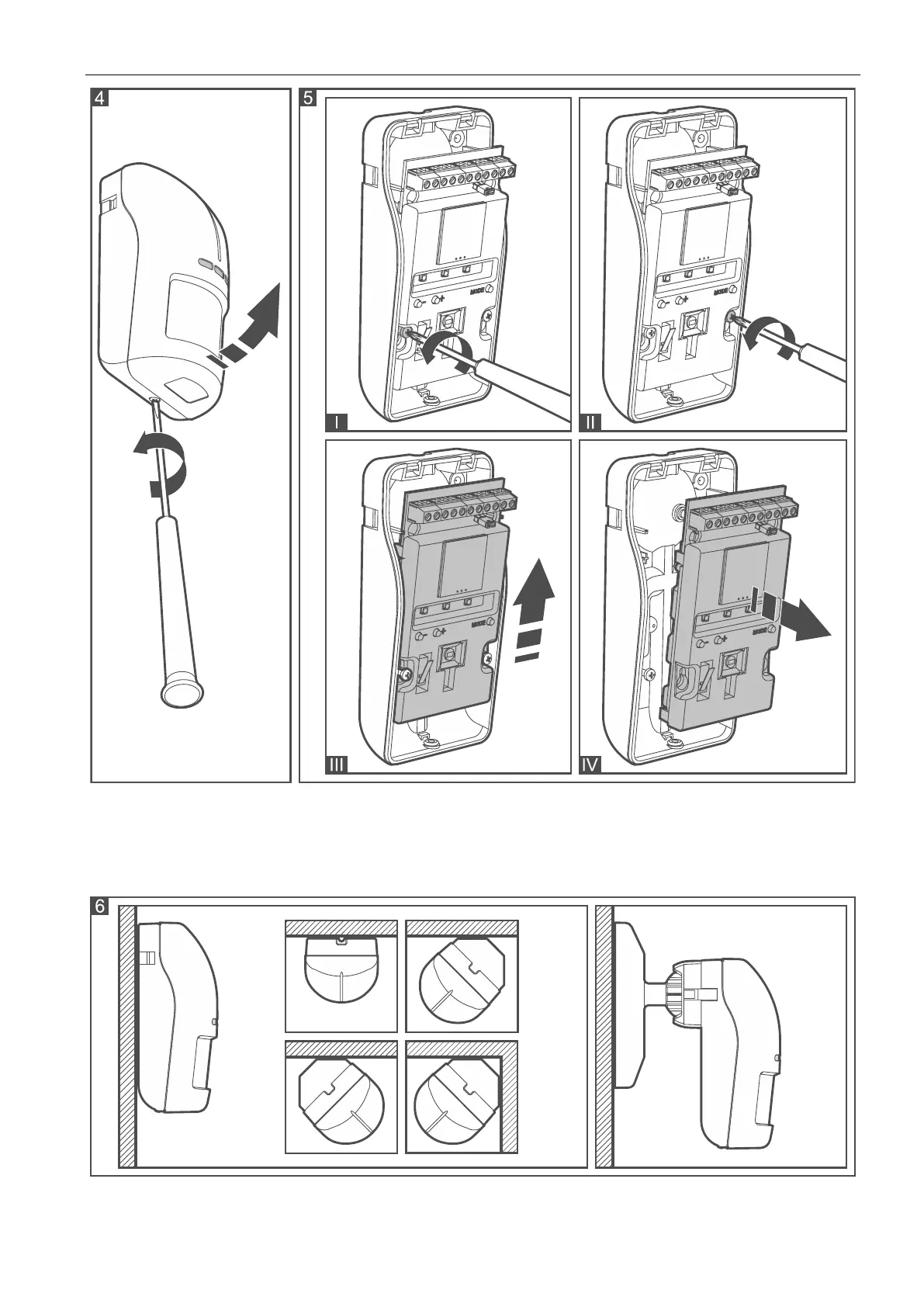

In Figure 6 possible ways of mounting the detector are shown.
