SATO CL412e Service Manual

Page 8-16
Section 8. Troubleshooting
SATO CL408e/CL412e Service Manual
PN 9001078
Rev. A

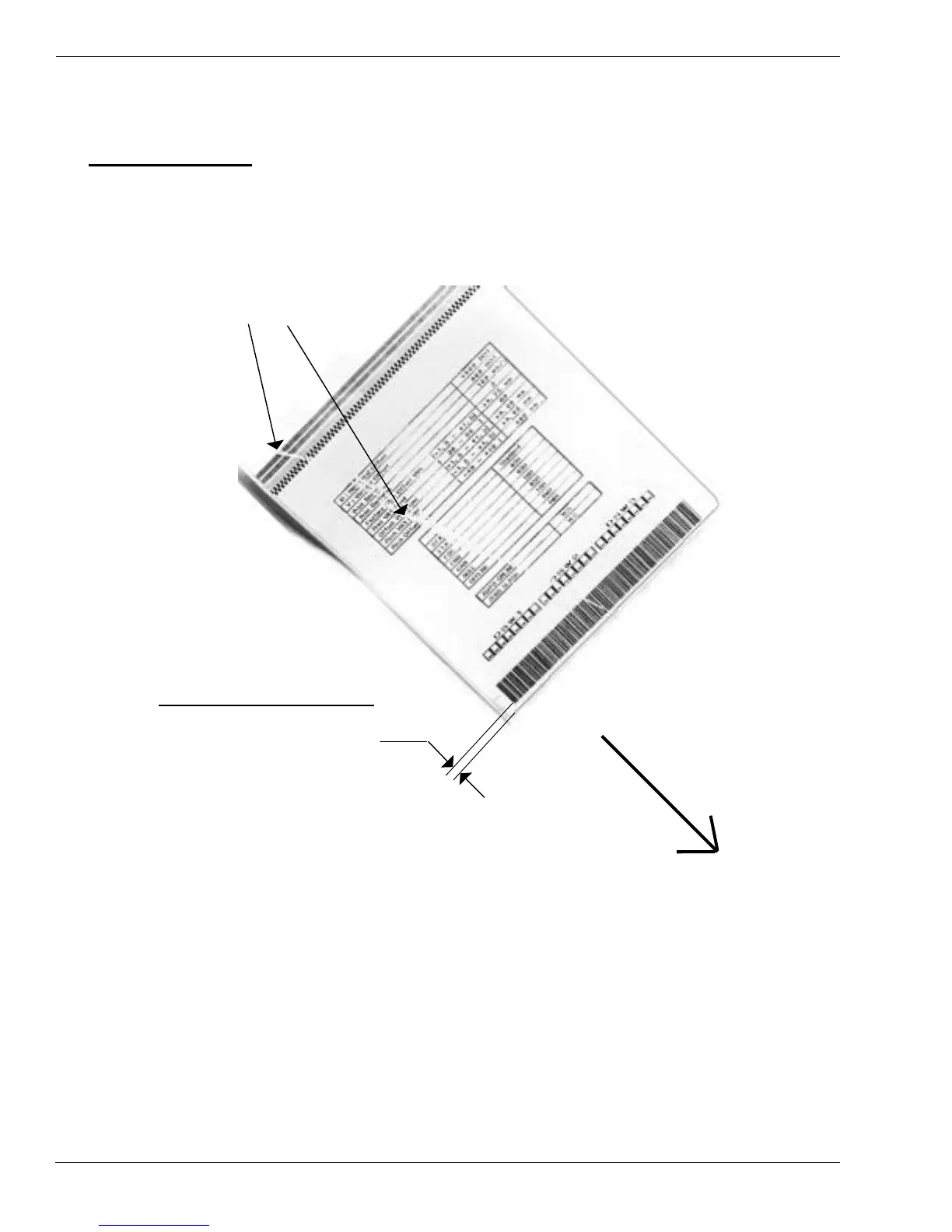

Head Pattern Examples
DIAGONAL VOIDS (WHITE STREAKS)
THAT “WALK” ACROSS LABEL
R
IBBON WRINKLE
P
OOR HEAD ALIGNMENT, POOR
R
IBBON TENSION,
WORN PLATEN,
F
OREIGN MATERIAL, DAMAGED
P
RINT HEAD
I
MPROPER ALIGNMENT
BOTTOM EDGE OF BAR
C
ODE IS SHOWN NOT
P
ARALLEL WITH EDGE
O
F LABEL
FEED
DIRECTION

SATO CL412e Specifications

General

Print Resolution	203 dpi
Print Width	4.1 inches
Print Method	Thermal Transfer / Direct Thermal
Operating Temperature	41°F to 104°F (5°C to 40°C)
Media Thickness	0.0025" to 0.0100"
Power Supply	AC 100V to 240V, 50/60 Hz
Humidity	30 - 80% RH non-condensing
Storage Temperature	-4°F to 140°F (-20°C to 60°C)
