Unit 3: Installation
S8400 Series Operator Manual
3-29 PN: 9001160 (C)

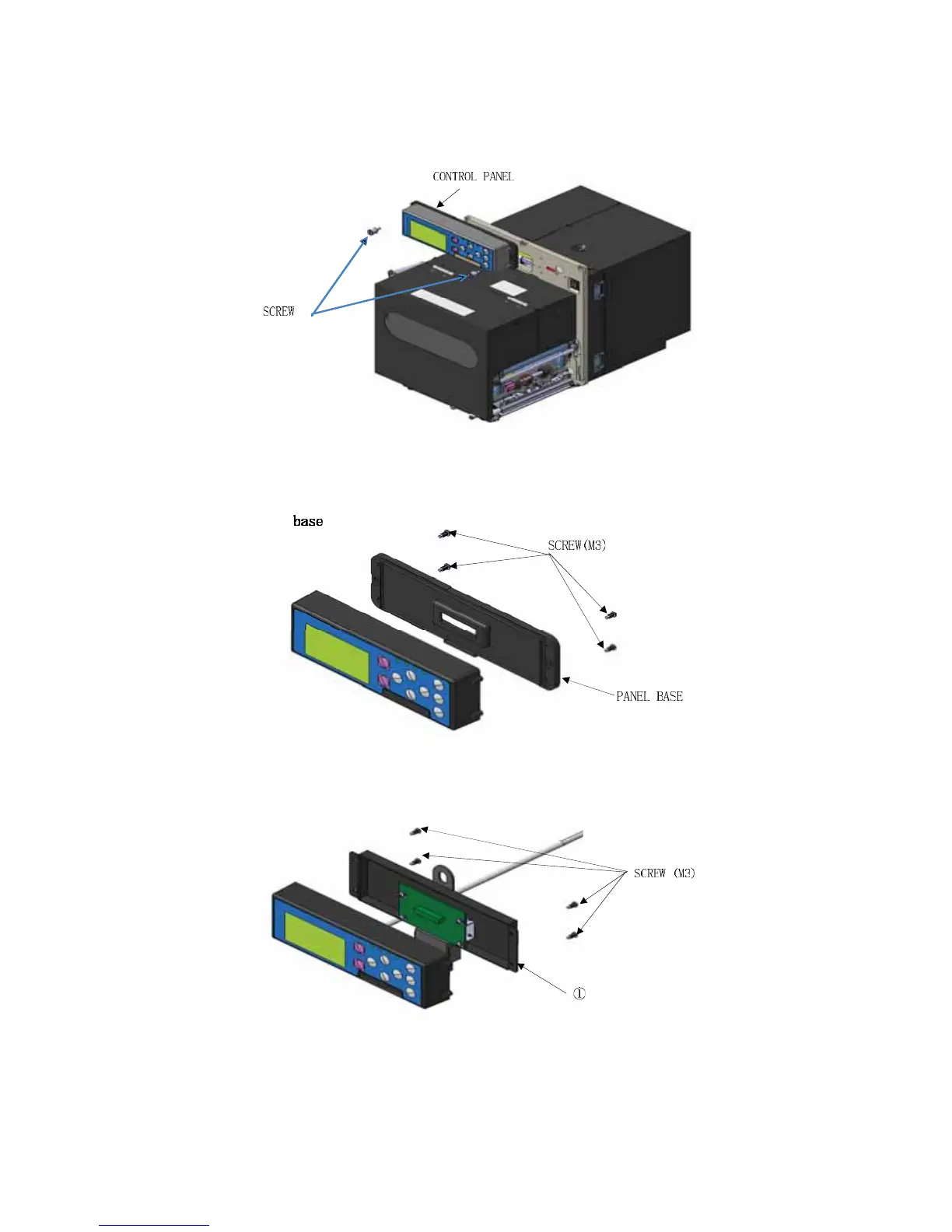

Installing the Kit
1.
Remove the control panel from the printer.
2. Remove the panel base.
3. Assemble the interface unit in the control panel.
INTERFACE
UNIT
