Unit 3: Installation
S8400 Series Operator Manual
3-30 PN: 9001160 (C)
4. Assemble the interface unit in the main body of the printer.
5. Connect the interface unit cable to the Cable Tie.

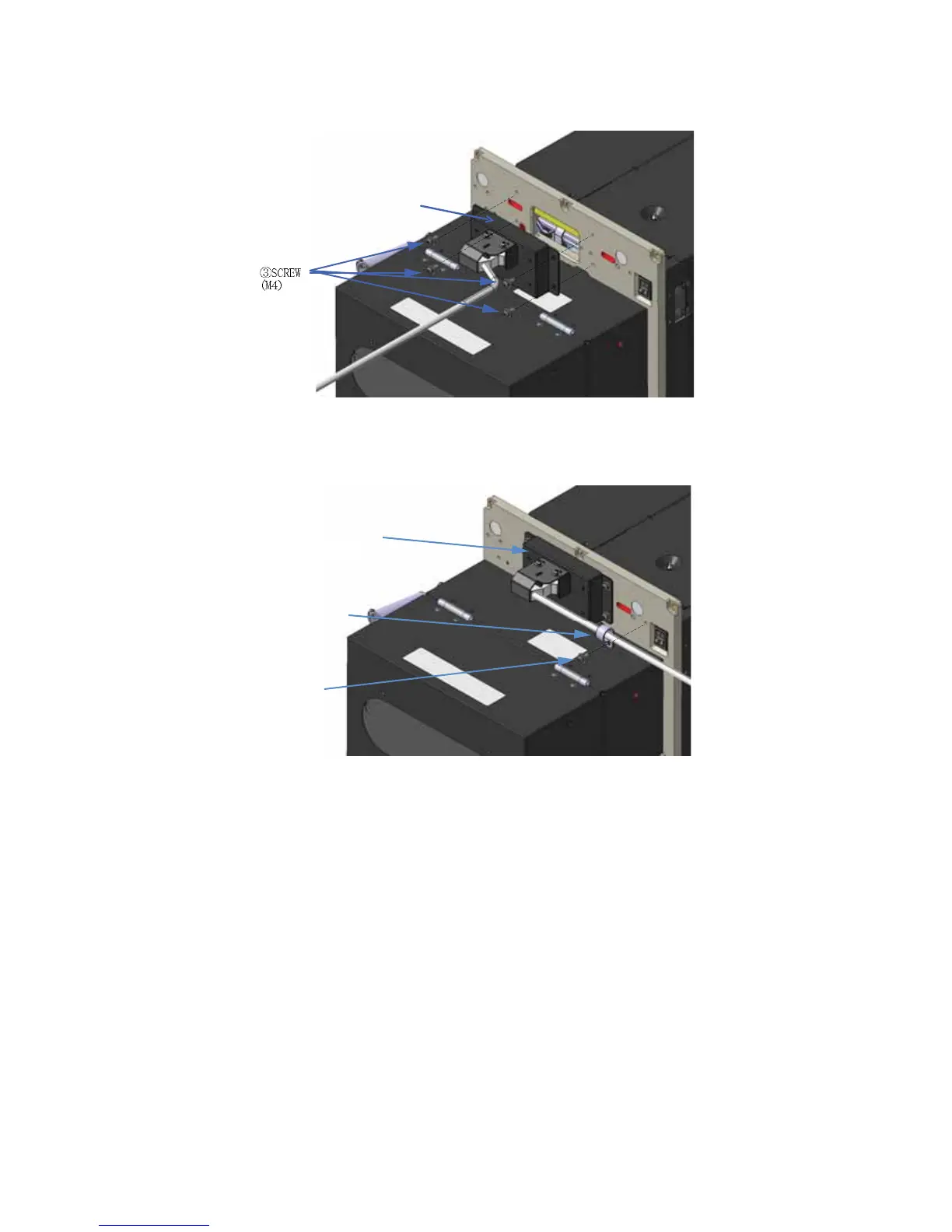

(1) INTERFACE UNIT
(1) INTERFACE UNIT
(2) CABLE TIE
(3) SCREW
(M4)
