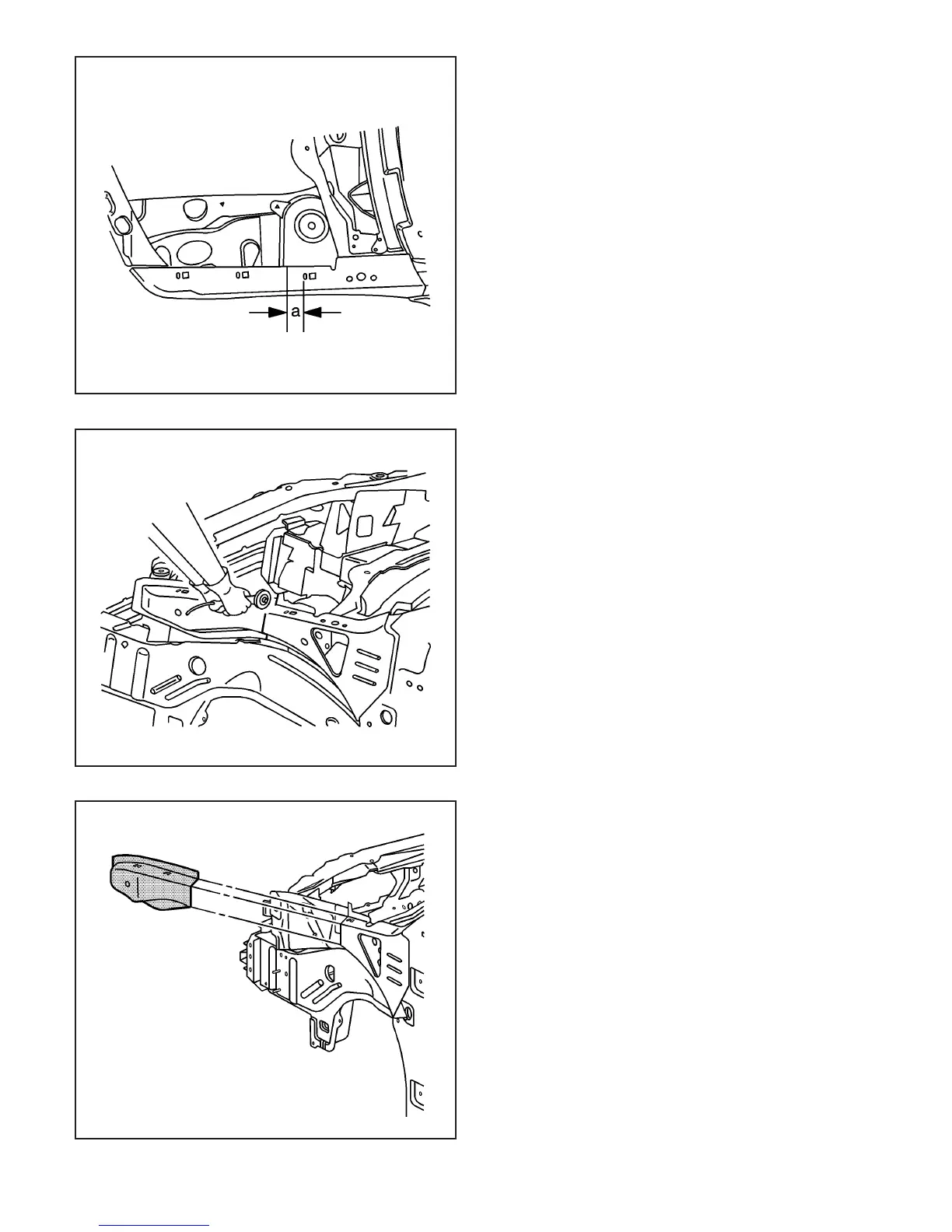

7. Measure forward 50 mm (2 in) (a) of the center of
the third fender bolt hole location. Mark the
location.
8. Using the mark made in the previous step as a
starting point, use a sliding square to transfer a
line on the top, side, and bottom of the rail.
9. Cut the side upper rail at the marked location.
10. Remove the front portion of the side upper rail.
11. Drill 2 8 mm (5/16 in) plug weld holes 10 mm
(1/2 in) rearward from the edge of the top,
bottom, and outer side on the front edge of the
remaining portion of the side upper rail on
the vehicle.
874296
874298
874299
3-40 2003 Saturn Ion
