5.2. Adding a Host to the Layout Window
This section outlines the process of configuring a SHR-2000 as the system Host when it has already been added as the Host in the component list, or
is the default Host for the configuration. The process follows the same steps for other IP Audio Products with Integrated Host..
Follow the steps below:

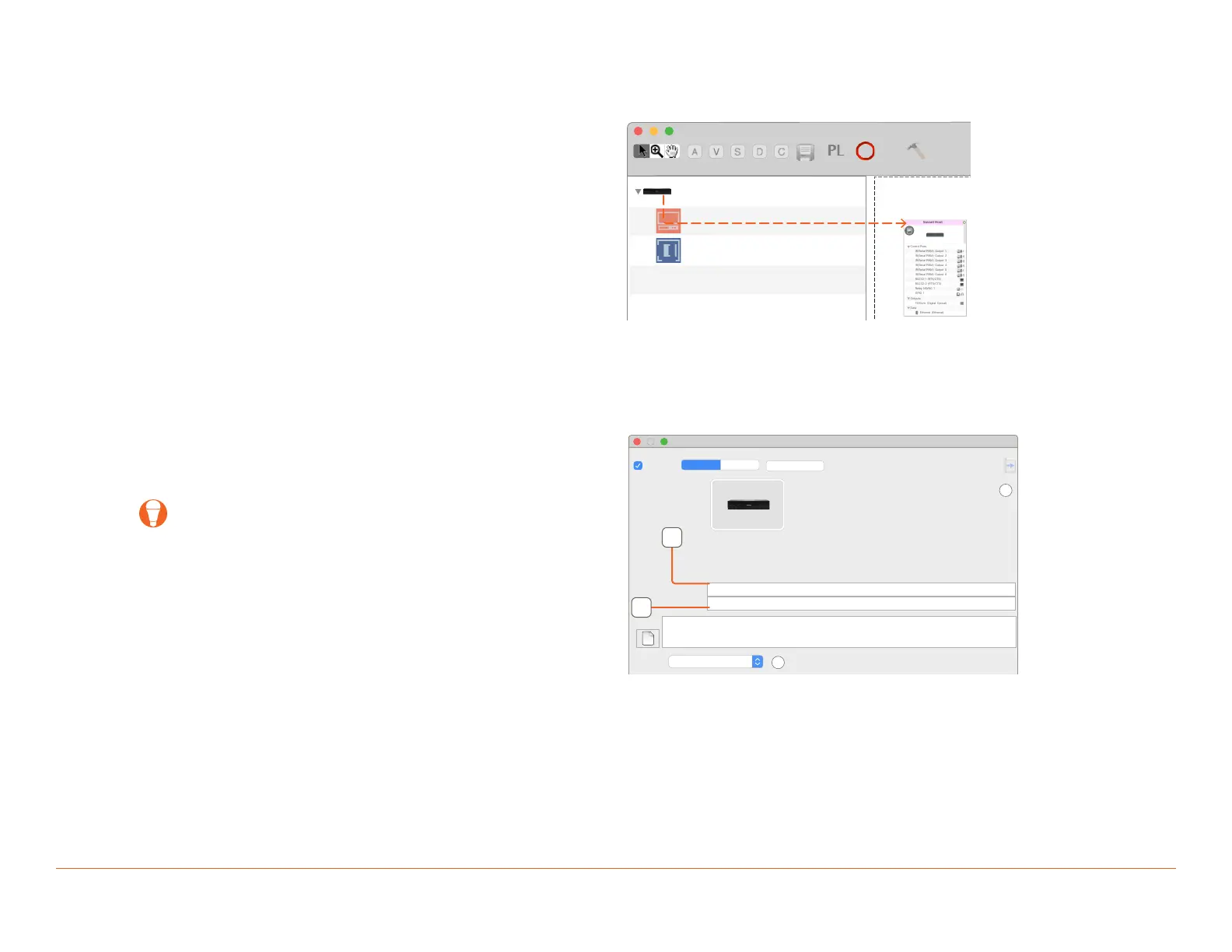

1. In an open Blueprint configuration, select the Host at the top
of the Component List and drag it onto the Layout Window.
2. Enter a unique Device Name and the Savant UID for the Host.
The Savant UID is used to identify the Host on the network so
that a configuration may be uploaded.
3. Select the Host in the Layout Window and open the Inspector
by navigating to:
View > Show Inspector
4. Enter a Device Name that is unique to the system.
5. Enter the Savant UID for the Host.
TIPS:
– Savant recommends using the customer’s last name and a
number unique to the customer followed by Host.
Example: Dresden45 Host
– Host names exceeding 20 characters, or utilizing special
characters (such as &, %, @, #, etc.) may cause certain
types of communication issues, and are therefore not
recommended by Savant.
Inspecting “Savant Host”
Data I/Os
?
?
Screens
Device
Hide Details
S 1.3
Edit
Class:
Manufacturer:
Model:
Device Name:
Savant UID:
Notes:
Show:
Savant Host
Savant
Smart Rack Mount Host
Dresden45 Host
5
4
Savant Host
Shared Equipment
Room 1
Tool Palette Layer Filter License State
Update All UI Screens
Save Generate Services
Savant Host
Control Ports
IR(Serial PWM) Output 1
IR(Serial PWM) Output 2
IR(Serial PWM) Output 3
IR(Serial PWM) Output 4
IR(Serial PWM) Output 5
IR(Serial PWM) Output 6
RS232-1 (RTS/CTS)
RS232-2 (RTS/CTS)
Relay NO/NC 1
GPIO 1
Outputs
Data
TOSLink (Digital Optical)
Ethernet (Ethernet)
