3. Installation
The Savant Host can be installed in a standard National Electrical Manufacturer’s Association (NEMA) rack, or on a solid, flat, level surface such as a table,
cabinet, or shelf. The location should be dry, well ventilated, and out of direct sunlight.

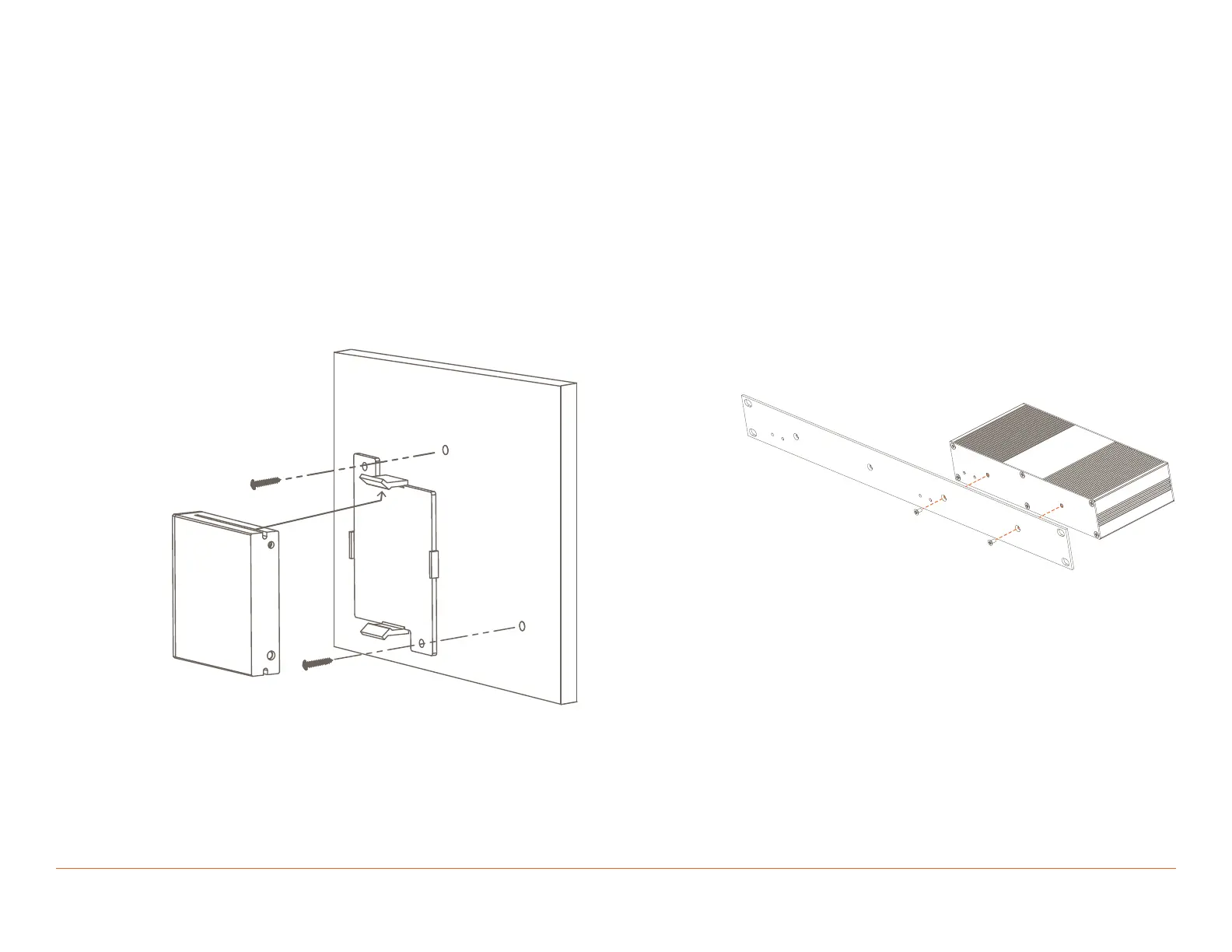

3.1. Mounting Plate
A mounting plate (074-0577-xx) is supplied with the SHR-S2. This
mounting plate is used to mount the Host to a wall or existing
structure. To mount the Host, follow the instructions below.
1. Position the mounting plate onto the wall where the Host will
be located. Position the bracket so the tabs that hold the Host
are positioned horizontally.
2. Mark the two mounting holes on the wall.
3. Install wall anchors and screw mounting plate to the wall.
4. Snap the SHR-S2 Host into the bracket so the tabs on the
mounting bracket seat into the slots on the side of the Host.
Host
Mounting
Bracket
Tab fits
into slot
3.2. Rack Mount
The SHR-S2 can use the optional RCK-3000-xx provides a
ventilated shelf for mounting S2 Hosts. This rack is compatible with
all standard 19-inch National Electrical Manufacturers Association
(NEMA) rack mounts.
The SHR-2000 can use the optional RMB-PAVAM2F-xx or RMB-
PAVAM2-xx allows two devices to be mounted side by side. For
example a Smart Host can be mounted next to a PAV-AIM7C. This
rack is compatible with all standard 19-inch National Electrical
Manufacturers Association (NEMA) rack mounts.
The instructions below show the RMB-PAVAM2F-xx, both brackets
install the same way they just face dierent directions.
1. Align the bracket with the Smart Host mounting points.
2. Attach using the screws provided with the bracket.
