18 © Scania CV 2009

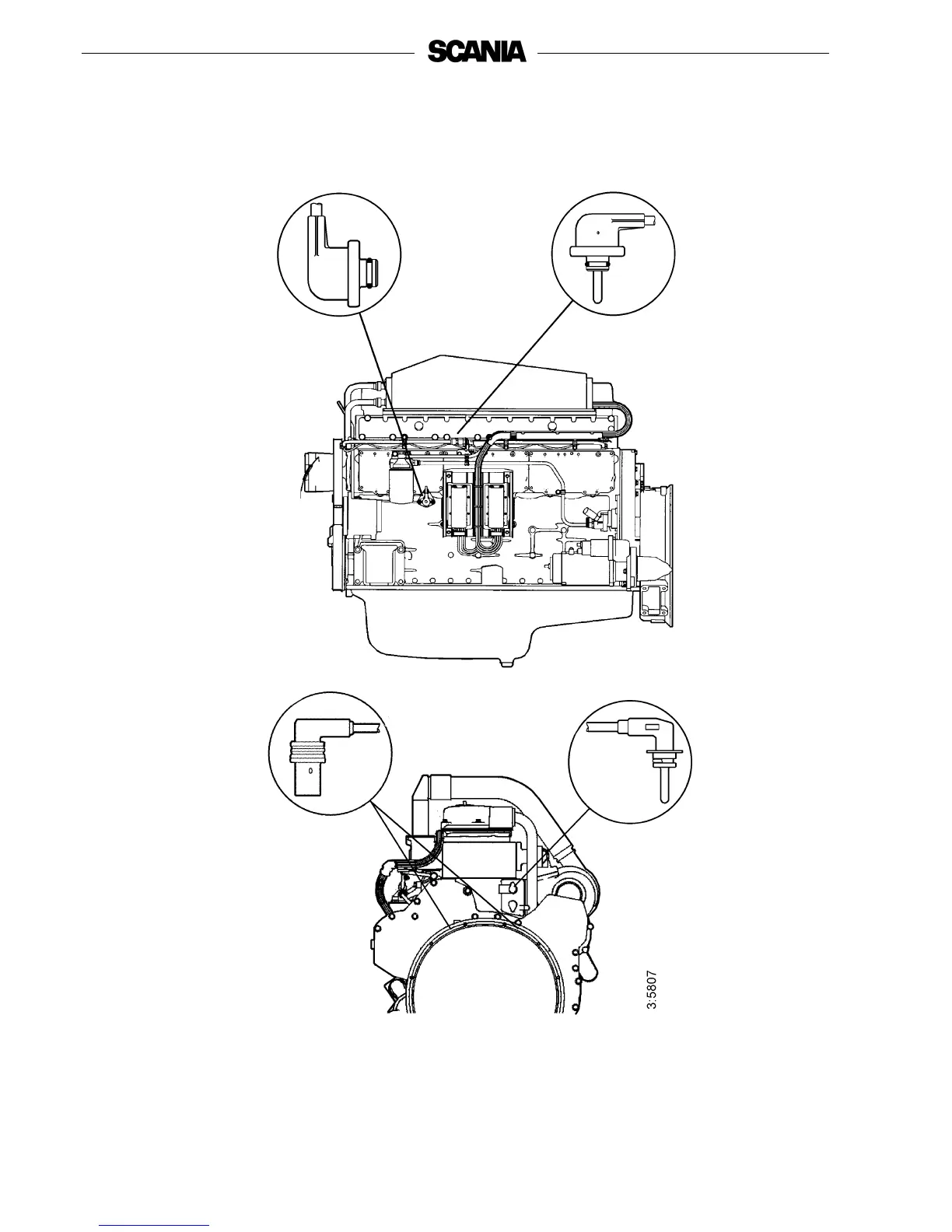

Positions of sensors for EMS with S6 on DI12
3
4
2
1
1. Oil pressure sensor
2. Charge air temperature and pressure sensor
3. Coolant temperature sensor
4. Engine speed sensor (2)
