Scania DC16 - Stage V

Component identification
OPM 300 en-GB 23
© Scania CV AB 2020, Sweden
Stage V

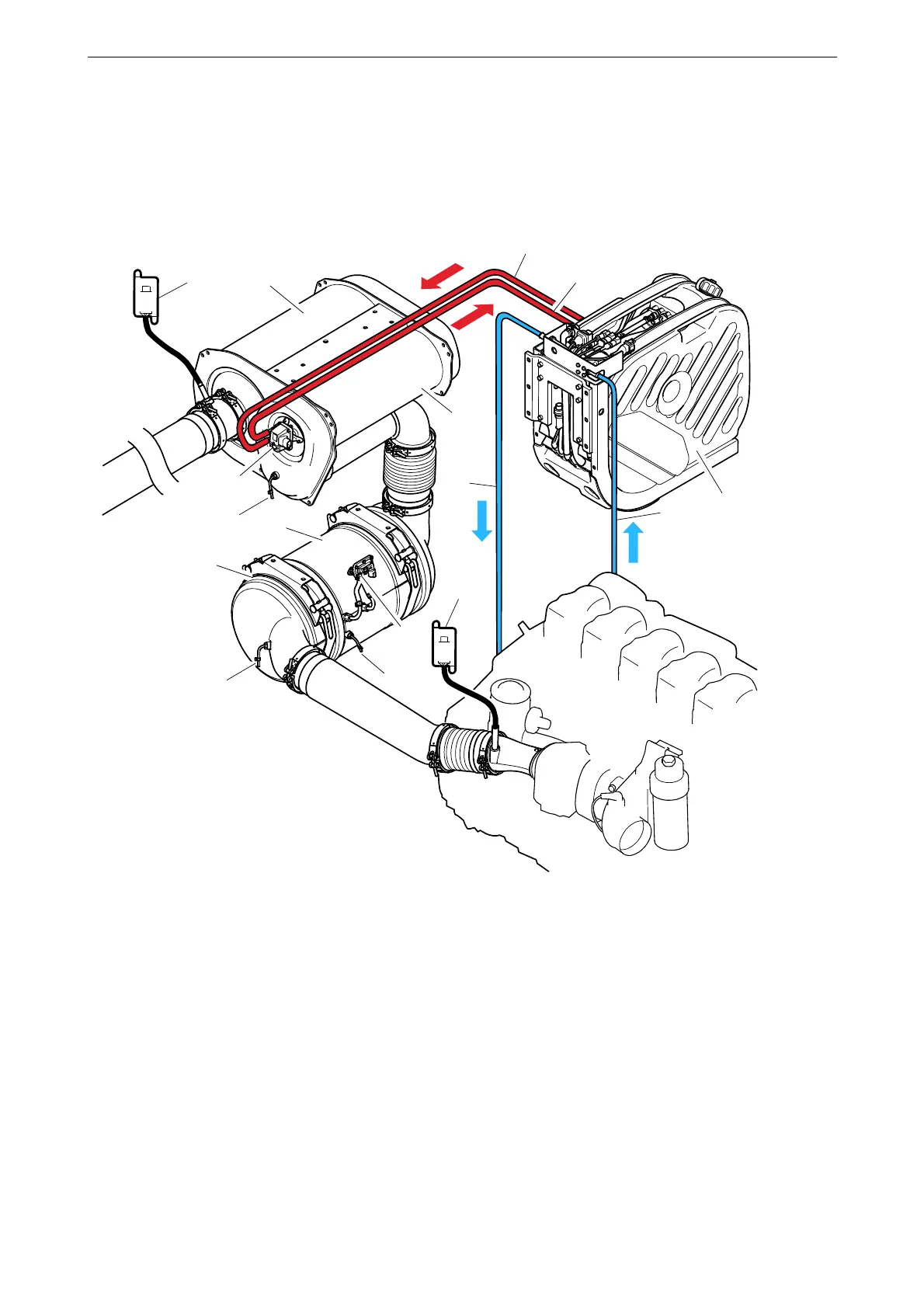

The illustration provides an overview of exhaust
gas aftertreatment management system compo-
nents.
1. NO
x
sensor with control unit
2. Differential pressure sensor
3. Exhaust gas temperature sensor
4. Exhaust gas temperature sensor
5. Oxidation catalytic converter
6. Particulate filter
7. Exhaust gas temperature sensor
8. Reductant doser
9. NO
x
sensor with control unit
10. SCR catalytic converter
11. Evaporator
12. Reductant return hose
13. Reductant pressure hose
14. Reductant tank
15. Coolant hose for tank and pump heating
16. Coolant hose, return from tank and pump heating
1
2
3
5
6
7
8
9
10
11
12
13
14
15
16
4
