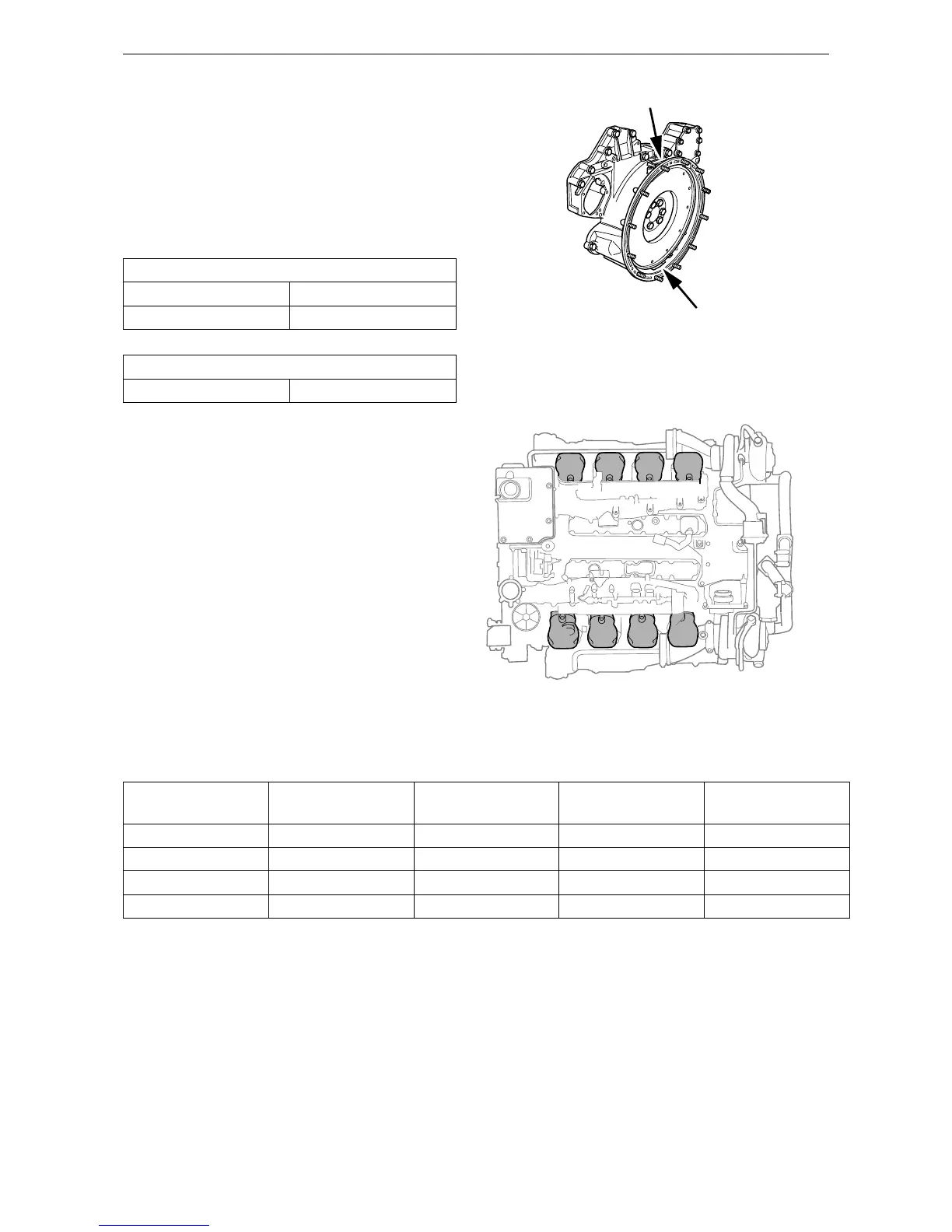

On the flywheel is engraved the reference infor-
mation UP TDC, DOWN TDC and the angle in-
dications listed in the table below. Depending on
the engine installation and type of flywheel
housing, this information is visible in one of the
windows, either furthest up or furthest down on
the flywheel. See illustration.
Adjust valves according to the table below. Fol-
low the respective column depending on whether
you are reading the engraving on the flywheel in
the lower or the upper window. Start adjustment
at the top of the table.
Valve clearance, specifications
Intake valve 0.45 mm (0.018 in)
Exhaust valve 0.70 mm (0.028 in)
Tightening torques
Lock nut for valves 35 Nm (26 lb/ft)
Reading in the low-
er window
Valve transition on
cylinder
Adjust intake valve
on cylinder
Adjust exhaust
valve on cylinder
Reading in the up-
per window
DOWN TDC (0°) 6 7 and 8 4 and 5 UP TDC (180°)
UP TDC (180°) 7 1 and 5 2 and 6 DOWN TDC (0°)
DOWN TDC (360°) 1 2 and 4 3 and 7 UP TDC (540°)
UP TDC (540°) 4 3 and 6 1 and 8 DOWN TDC (360°)
